Epson Expression 1680 User Manual

Network Scanning
75

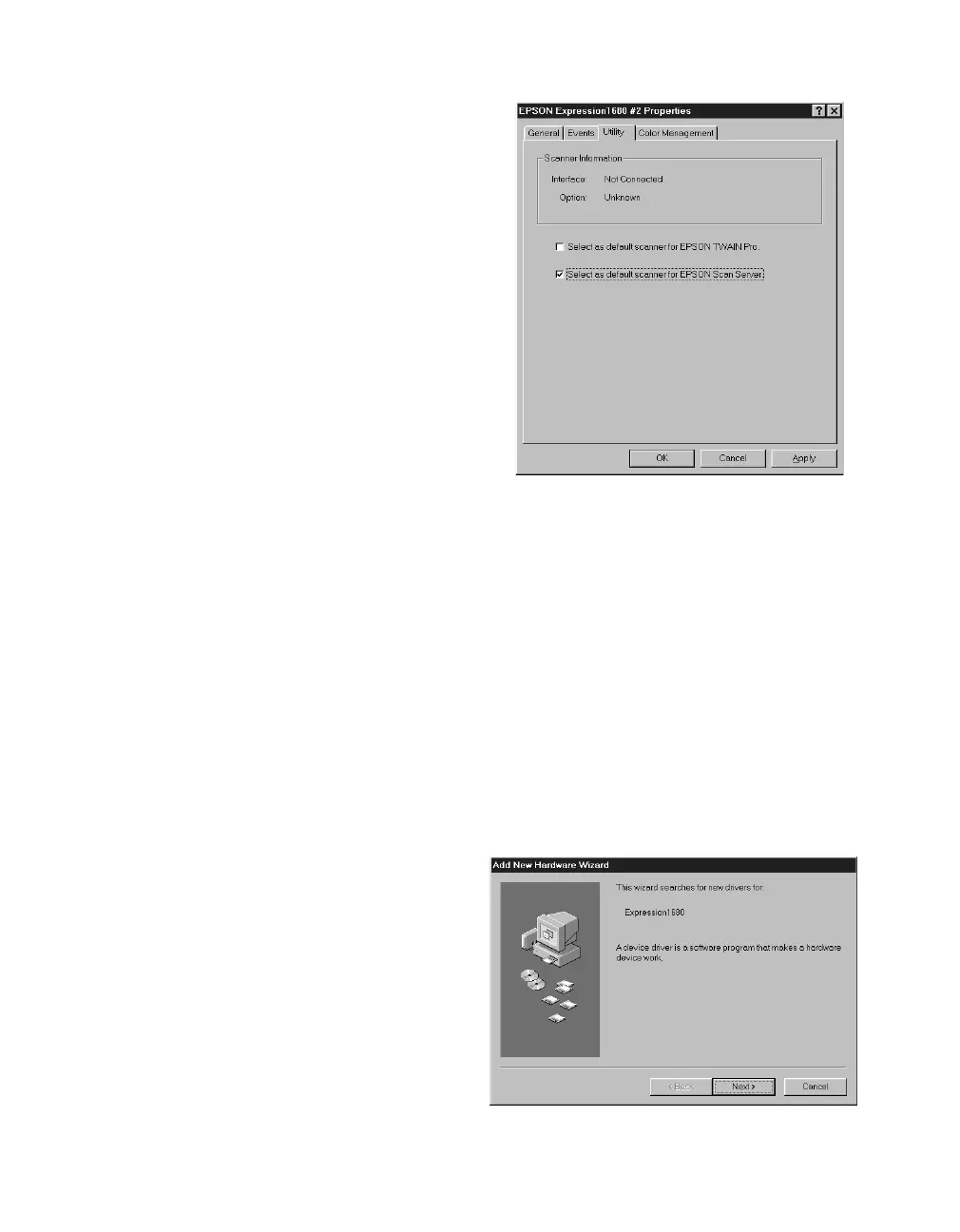

3. Click the
Utility
tab. Make sure
Select
as default scanner for EPSON Scan
Server
is checked, and then click
OK
.
Installing the Scanner Server Software on
Windows 98
Before you begin, make sure the Expression 1680 is connected to your computer.
Also, make sure you’ve recalibrated your monitor to factory specifications.
You may be asked to insert your Windows CD-ROM during this procedure. Make
sure you have your Windows CD-ROM available, or know where to find the
Windows source files on your hard drive. If you need help locating your source files,
contact your computer manufacturer.
1. Turn on your scanner first, then turn on your computer.
2. When you see the window on the
right, insert the EPSON Expression
1680 Scanning Tools CD-ROM in
your drive and click
Next
.
1680.book Page 75 Thursday, March 1, 2001 4:28 PM

Epson Expression 1680 Specifications

Scanning Specifications

optical resolution	1600 x 3200 dpi
maximum resolution	13, 600 x 18, 720 dpi with interpolation
effective pixels	13, 600 x 18, 720 pixels (1600 dpi)
color depth	48 bits per pixel internal/external
grayscale depth	16 bits per pixel internal/external
scanning speed (color, 1600 dpi, draft mode)	9.2 msec/line (approx.)
scanning speed (grayscale/monochrome, 1600 dpi, draft mode)	3.1 msec/line (approx.)

Operating Environment

temperature operating range	41ºF to 95ºF (5ºC to 35ºC)
humidity operating range	10% to 80% (no condensation)
humidity storage range	10% to 85% (no condensation)

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption (operating without optional unit)	60W
power consumption (operating with optional unit)	75W
power consumption (standby without optional unit)	10W

Weight and Dimensions

maximum read area	8.5" x 11.7" (216mm x 297mm)
width	13.1" (332mm)
depth	22.1" (562mm)
height	5.2" (133mm)
weight	18.7 lb (8.5 kg approx.)
