Using Optional Equipment
Fixing Paper Jams

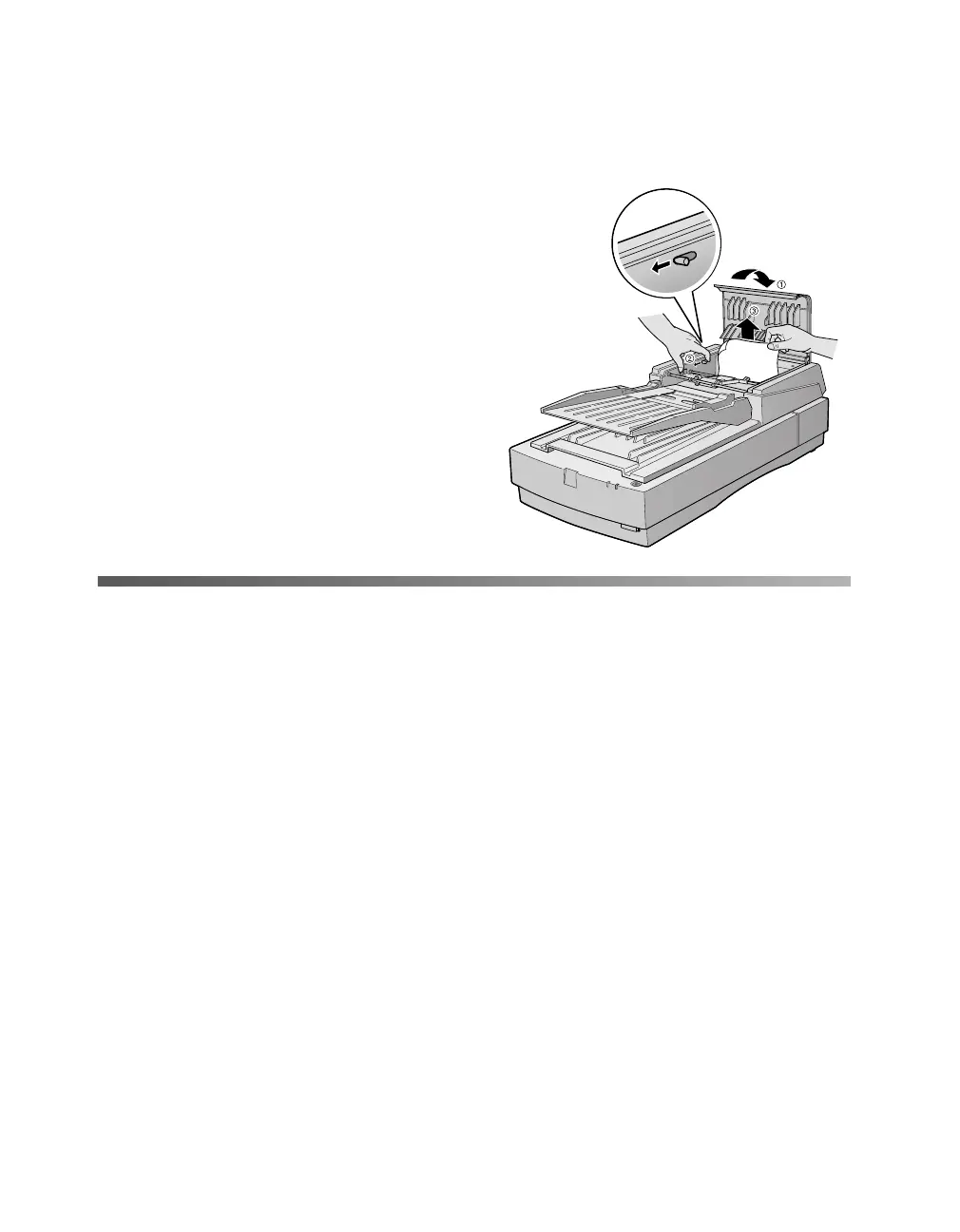

If a paper jam occurs, follow these steps to clear it:
1. Open the ADF cover to determine
where the paper jam occurred.
2. Pull forward on the jam-release lever,
and slowly pull the jammed paper out of
the feeder mechanism. Be careful not to
tear the paper.
3. After removing the jammed paper, close
the document feeder cover. Make sure
the
ERROR
light is off and the
READY
light isn’t flashing.
IEEE 1394 FireWire Scanner Interface Card
To use the IEEE 1394 FireWire scanner interface card (B808342), your system must
have either a built-in IEEE 1394 FireWire port or an IEEE 1394 FireWire PCI card,
and must be running Macintosh OS 8.6 or later with FireWire Update 2.1 or later.
Your PC must have an OHCI compliant IEEE 1394 port or card, and must be
running a pre-installed version of Windows 2000 or Windows Me.
This section explains how to install the IEEE 1394 FireWire scanner interface card in
your scanner, and how to connect the scanner to your computer.
■
If you have the Professional FireWire model of the EPSON Expression 1680, the
card was preinstalled in your scanner. Go to “Connecting to an IEEE 1394
FireWire Interface” on page 21.
■
If you purchased the IEEE 1394 FireWire scanner interface card as an option,
continue with the next section.
1680.book Page 108 Thursday, March 1, 2001 4:28 PM

Epson Expression 1680 Specifications

Scanning Specifications

optical resolution	1600 x 3200 dpi
maximum resolution	13, 600 x 18, 720 dpi with interpolation
effective pixels	13, 600 x 18, 720 pixels (1600 dpi)
color depth	48 bits per pixel internal/external
grayscale depth	16 bits per pixel internal/external
scanning speed (color, 1600 dpi, draft mode)	9.2 msec/line (approx.)
scanning speed (grayscale/monochrome, 1600 dpi, draft mode)	3.1 msec/line (approx.)

Operating Environment

temperature operating range	41ºF to 95ºF (5ºC to 35ºC)
humidity operating range	10% to 80% (no condensation)
humidity storage range	10% to 85% (no condensation)

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption (operating without optional unit)	60W
power consumption (operating with optional unit)	75W
power consumption (standby without optional unit)	10W

Weight and Dimensions

maximum read area	8.5" x 11.7" (216mm x 297mm)
width	13.1" (332mm)
depth	22.1" (562mm)
height	5.2" (133mm)
weight	18.7 lb (8.5 kg approx.)
