Epson Expression 1680 User Manual

Network Scanning
83
Starting the Scanner Server Installation on
Windows NT 4.0
Follow these steps to begin the scanner server installation:
1. Turn on your scanner first; then turn on your computer.
2. Log onto Windows NT. Then insert the EPSON Expression 1680 Scanning
Tools CD-ROM.

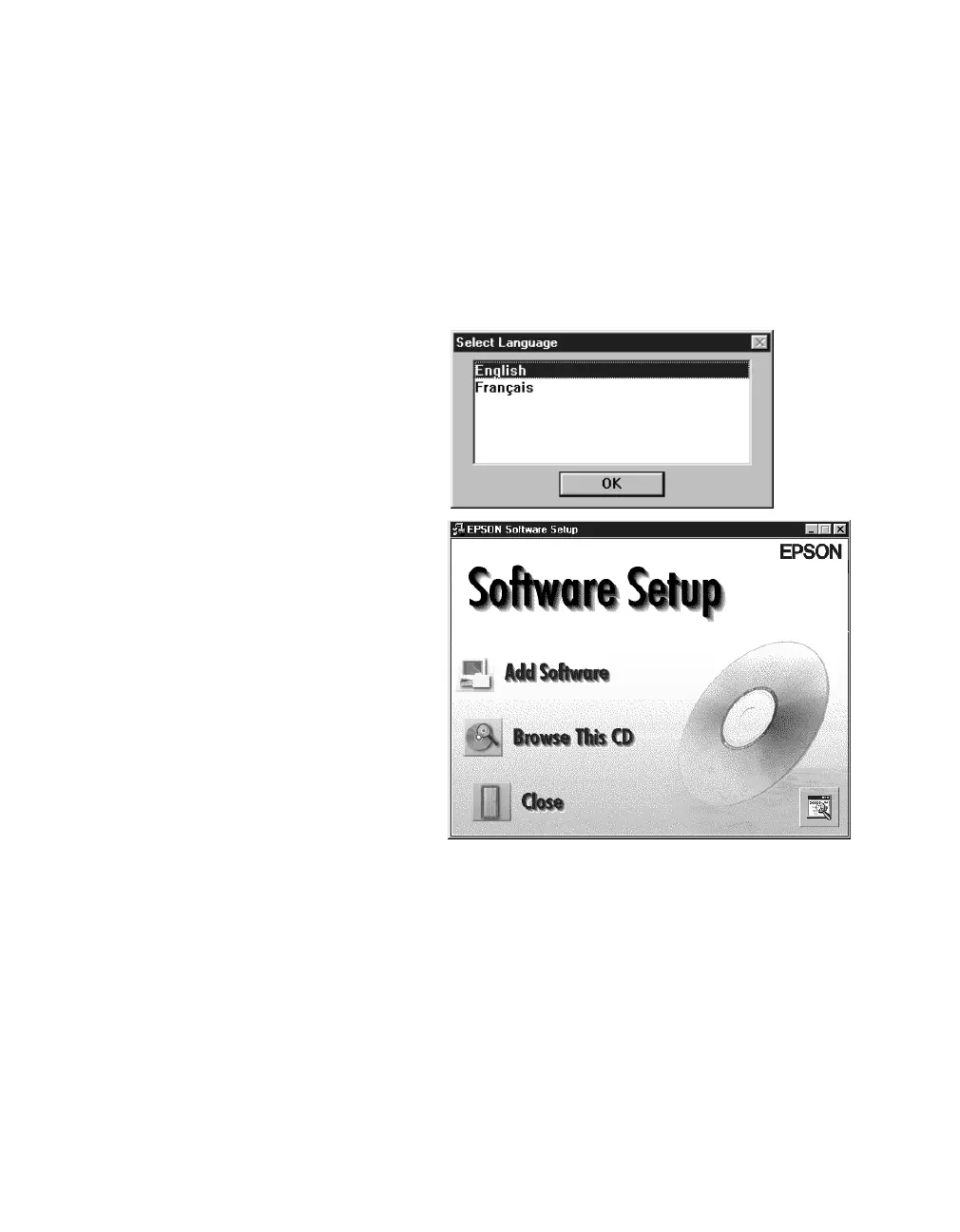

3. If the Select Language window
doesn’t appear, double-click the
My Computer
icon on your
Windows desktop, then
double-click the
Epson
CD-ROM icon.
4. Make sure
English
is selected,
then click
OK
to display the
Software Setup window.
5. You see the Software Setup
window. Click the
Add
Software
button to display the
software selection window.
Continue with the instructions
in the next section to finish
installing the scanner server
software.
1680.book Page 83 Thursday, March 1, 2001 4:28 PM

Epson Expression 1680 Specifications

Scanning Specifications

optical resolution	1600 x 3200 dpi
maximum resolution	13, 600 x 18, 720 dpi with interpolation
effective pixels	13, 600 x 18, 720 pixels (1600 dpi)
color depth	48 bits per pixel internal/external
grayscale depth	16 bits per pixel internal/external
scanning speed (color, 1600 dpi, draft mode)	9.2 msec/line (approx.)
scanning speed (grayscale/monochrome, 1600 dpi, draft mode)	3.1 msec/line (approx.)

Operating Environment

temperature operating range	41ºF to 95ºF (5ºC to 35ºC)
humidity operating range	10% to 80% (no condensation)
humidity storage range	10% to 85% (no condensation)

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption (operating without optional unit)	60W
power consumption (operating with optional unit)	75W
power consumption (standby without optional unit)	10W

Weight and Dimensions

maximum read area	8.5" x 11.7" (216mm x 297mm)
width	13.1" (332mm)
depth	22.1" (562mm)
height	5.2" (133mm)
weight	18.7 lb (8.5 kg approx.)
