Epson Expression 1680 User Manual

82
Network Scanning

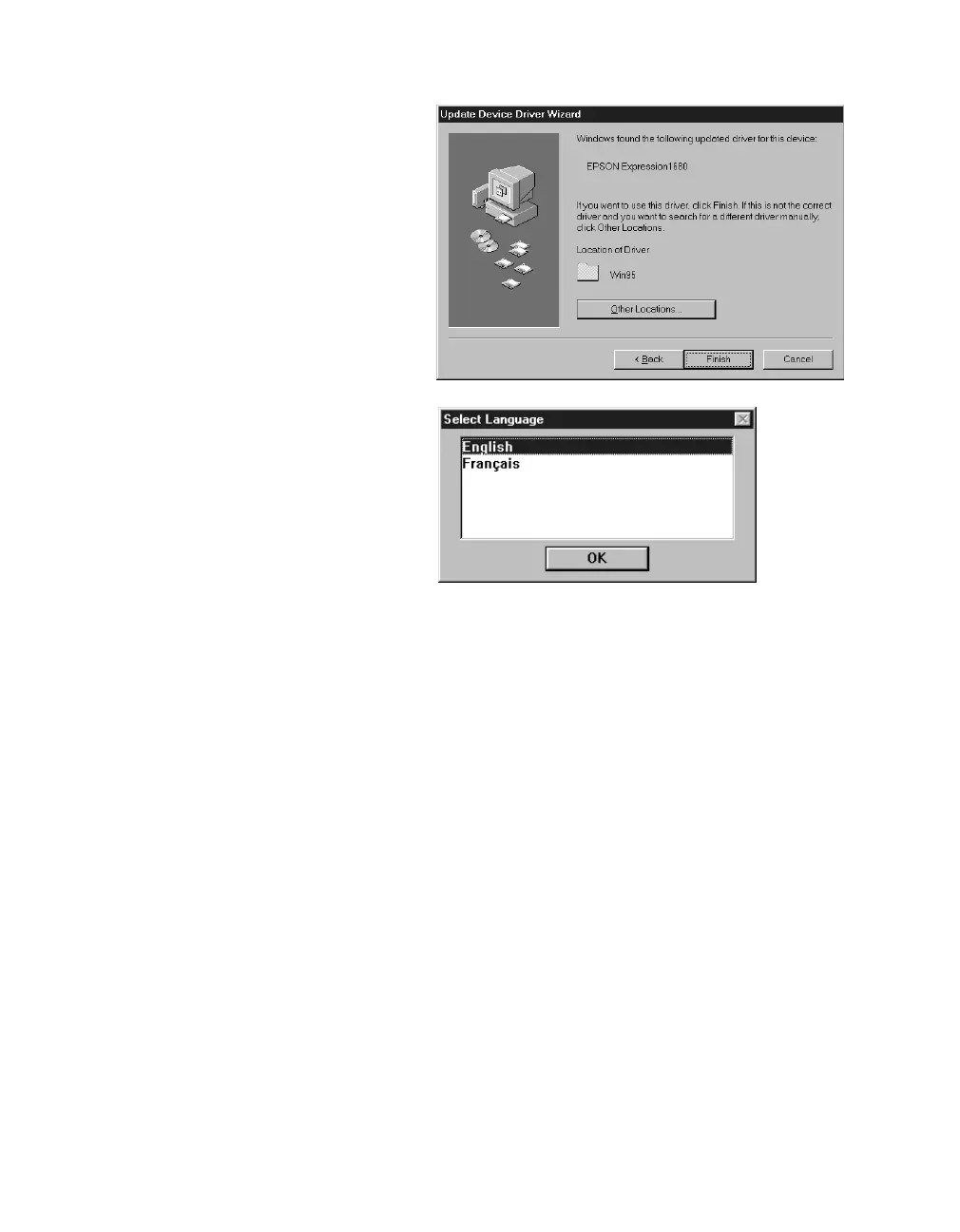

4. When you see this window, click
Finish
.
5. Double-click the
My Computer
icon on your Windows desktop,
then double-click the
Epson
CD-ROM icon. You see the
window on the right.
6. Make sure
English
is selected,
and click
OK
.
7. Click
Add Software
.
Continue with the instructions in “Finishing the Scanner Server Installation on
Windows 95 and Windows NT 4.0” on page 84.
1680.book Page 82 Thursday, March 1, 2001 4:28 PM

Epson Expression 1680 Specifications

Scanning Specifications

optical resolution	1600 x 3200 dpi
maximum resolution	13, 600 x 18, 720 dpi with interpolation
effective pixels	13, 600 x 18, 720 pixels (1600 dpi)
color depth	48 bits per pixel internal/external
grayscale depth	16 bits per pixel internal/external
scanning speed (color, 1600 dpi, draft mode)	9.2 msec/line (approx.)
scanning speed (grayscale/monochrome, 1600 dpi, draft mode)	3.1 msec/line (approx.)

Operating Environment

temperature operating range	41ºF to 95ºF (5ºC to 35ºC)
humidity operating range	10% to 80% (no condensation)
humidity storage range	10% to 85% (no condensation)

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption (operating without optional unit)	60W
power consumption (operating with optional unit)	75W
power consumption (standby without optional unit)	10W

Weight and Dimensions

maximum read area	8.5" x 11.7" (216mm x 297mm)
width	13.1" (332mm)
depth	22.1" (562mm)
height	5.2" (133mm)
weight	18.7 lb (8.5 kg approx.)
