EPSON Perfection4180 Photo Revision A
DISASSEMBLY/ASSEMBLY Disassembly Procedure 36
4. Remove the Carriage FFC from the Main Board. (Refer to Step 4 to Step 7 in 4.2.5
Removal of Main Board.)
5. Peel the Carriage FFC from the Housing Lower Cover.

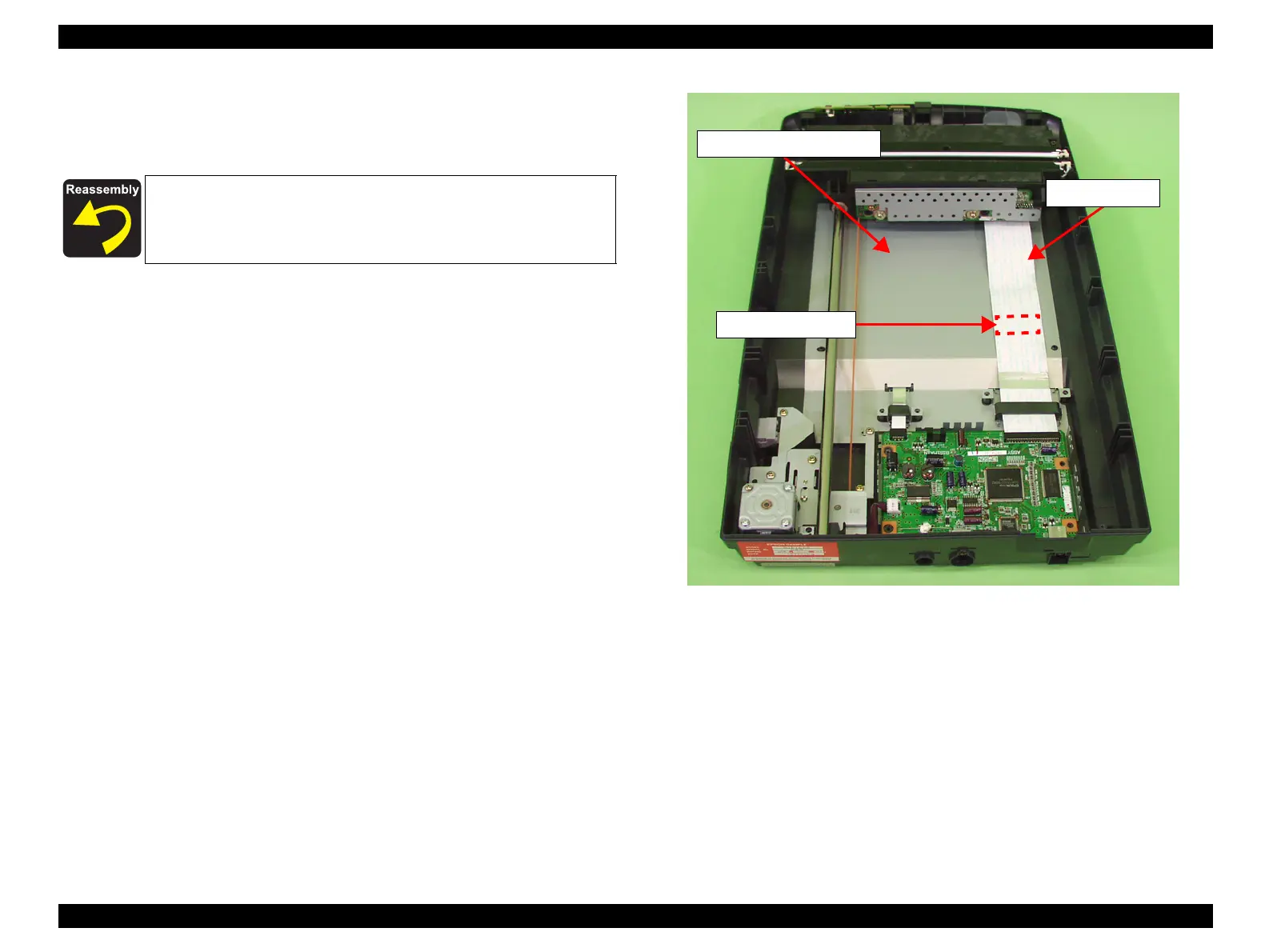

Figure 4-10. Peeling of Carriage FFC
Adhere the Carriage FFC in the position shown in Figure 4-10 with a
double-faced tape.
Adhering position
Carriage FFC
Housing Lower Cover
