15 Battery backup switchover function

RX8130CE Jump to Top / Bottom

ETM50E-07 Seiko Epson Corporation 41

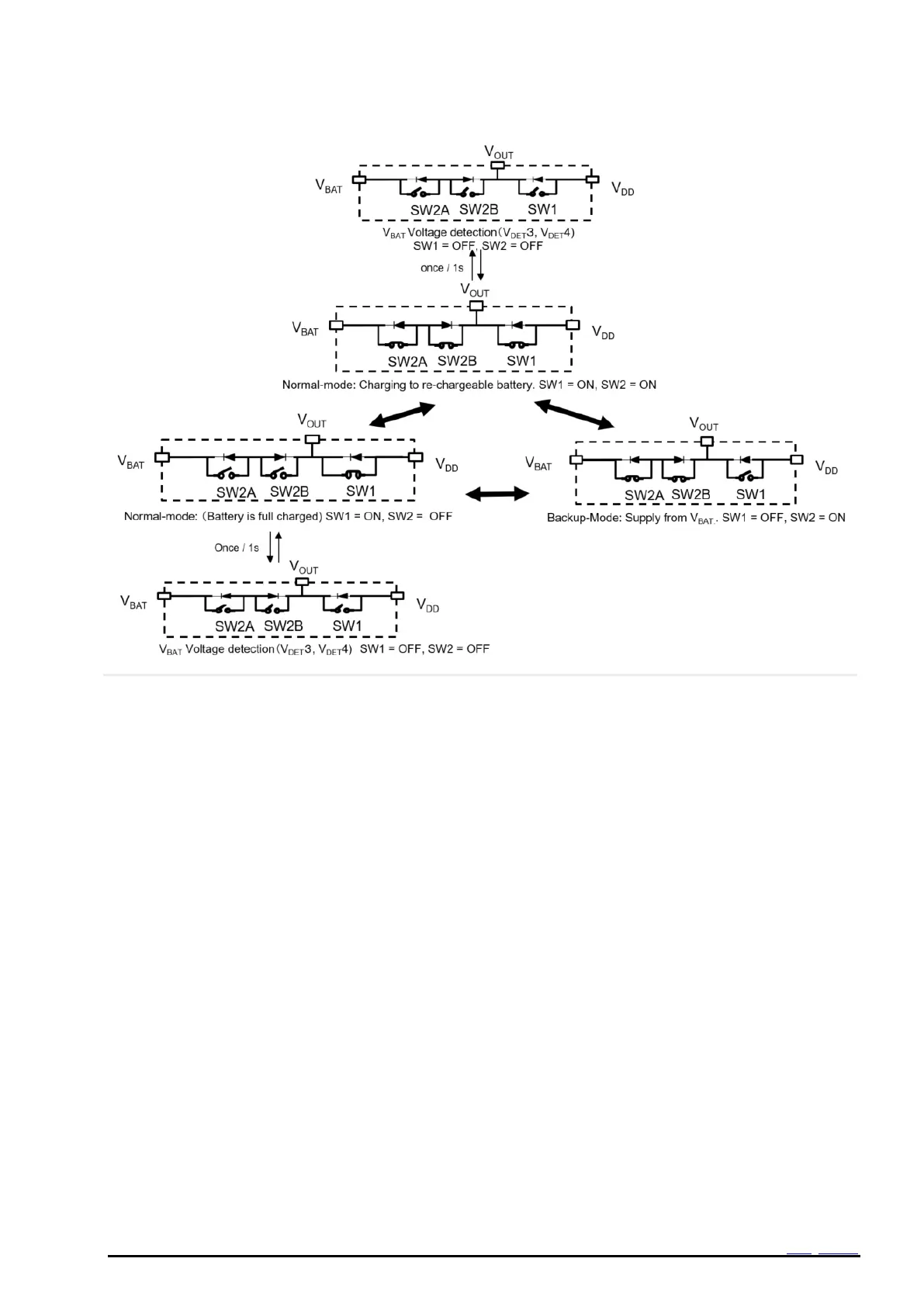

Figure 31 Re-chargeable battery SW1, SW2 control (INIEN = 1, CHGEN = 1)
