EPSON Stylus C50/C60/C61/C62 Revision C
Disassembly and Assembly Disassembly 117

When assembling the Printer mechanism to the Lower housing,

Make sure to set the Main frame reinforcing plate correctly
at the rightmost screw.

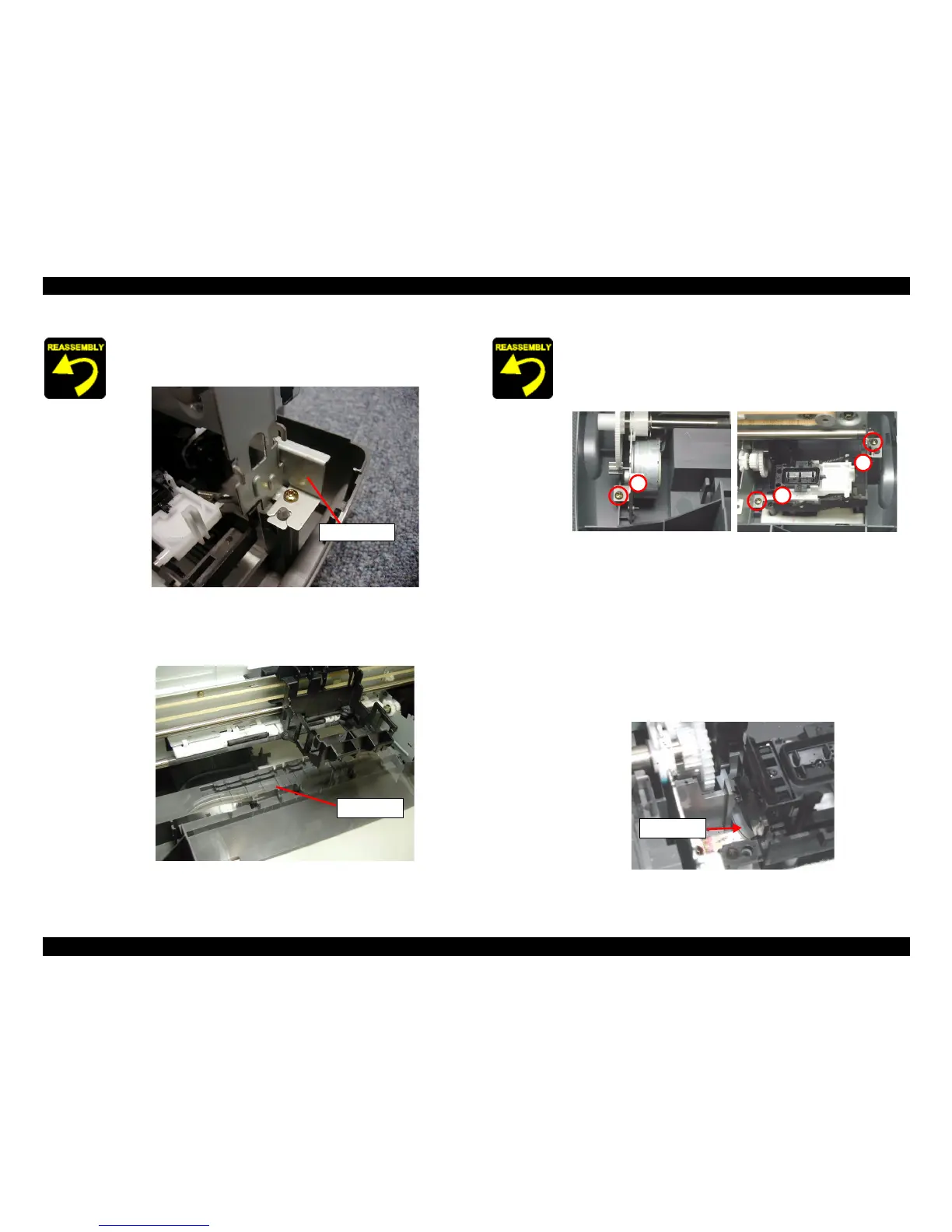

Figure 4-57. Reinforcing plate setting position

Avoid to damage the coated surface of the PF roller by using
the OHP sheet as shown figure below.
Figure 4-58. Printer mechanism assembling(1)
Reinforcing plate
OHP sheet

Do not damage the tooth of the Spur gear 60 of the Paper
eject roller because its roller is not fixed.

Fasten three screws (C.B.S. SCREW 3 x10 F/Zn) for
securing the Printer mechanism to the Lower housing.
Figure 4-59. Printer mechanism assembling(2)
Tightening torque for each screw is as follows.
•
C.B.S. SCREW, 3 x 10, F/Zn (3pcs) : 6 ± 1kgf.cm

Be careful not to drop the Cap unit from the Main frame.

Do not touch the sealing rubber portion and the cleaner head
of the Cap unit.

Make sure that the Cap unit is correctly fixed to the Main
frame.

Make sure to set the end of ink tube correctly.

Make sure to place the Ink tube as shown figure below.
Figure 4-60. Ink tube setting position
1
2
3
Ink tube

Epson Stylus C62 Specifications

Printing

printing method	4-color (CMYK) drop-on-demand Micro Piezo ink jet technology
resolution (dots per inch)	Up to 5760 x 720 optimized dpi
print speed (black text memo)	14 ppm

Paper Handling

maximum paper size	up to 8.5" x 44"
input paper tray capacity	100 sheets/10 envelopes
envelope types	No. 10, DL, C6

Dimensions and Weight

dimensions (L x W x H)	18.8" x 10.2" x 7.1"
weight	7.5 lb
maximum printable area	8.26" x 10.76"
