2. Notes on slip paper
• The slip paper must be flat, without curls or wrinkles, especially at the top edges.
Otherwise, the paper may rub against the ribbon and become dirty.
• There must be no glue on the bottom edge of slip paper. Choose slip paper carefully
when the glue is on the right or top edge, since paper feeding and insertion are affected
by gluing conditions (e.g., glue quality, method, and length) and glue location (refer to
the figure on the next page). Be especially careful when slip paper is wide and has the
glue on the left edge, since skew may occur.

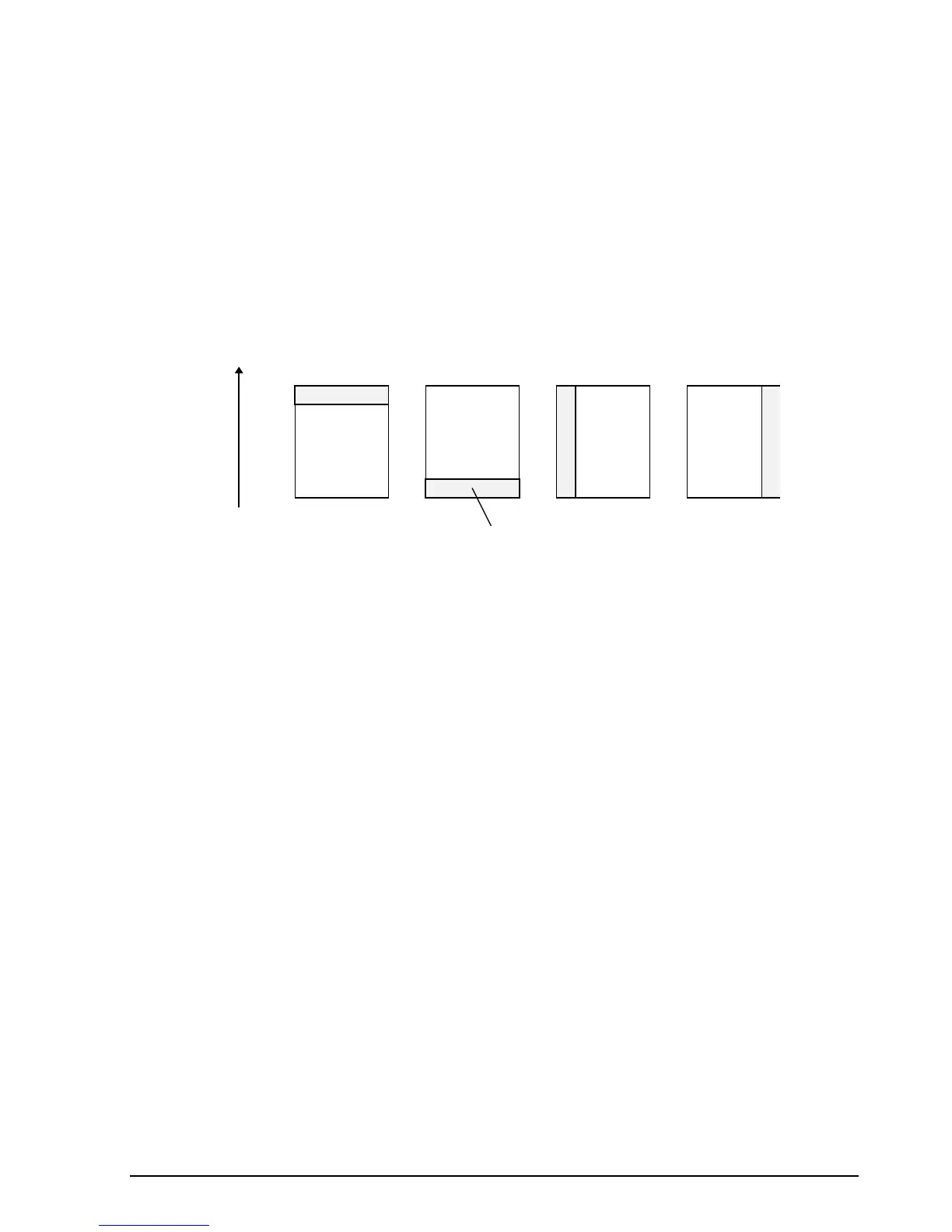

Slip paper glued area
• Since the slip BOF sensor uses a photo sensor, do not use paper that has holes at the
sensor position, or is translucent.
• Since the slip TOF sensor uses a reflective photo sensor and it detects from the back of
slip paper, do not use paper that has holes or dark portions with low reflection (less than
40% reflection) at the sensor position.
• Since the slip paper ejection sensor uses a reflective photo sensor and it detects from the
surface of the paper roll, do not use paper that has holes or dark portions with low
reflection (less than 40% reflection) at the sensor position.
Paper feed
direction
Glued area
Use carefullyUse carefullyDo not use
OK to use
