Chapter 1 Product Overview

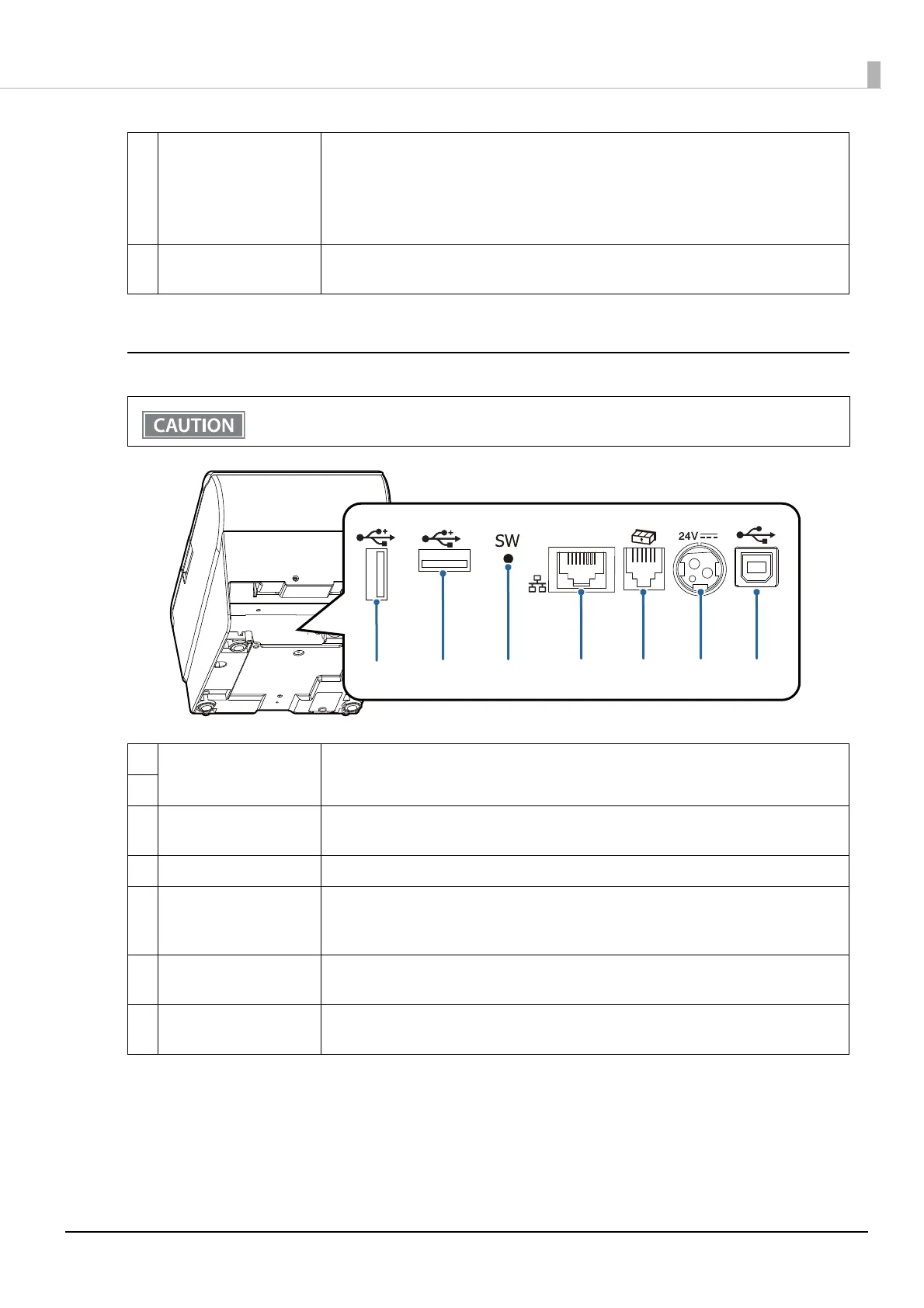

Fixed Interface Model
7 USB connector Use only for connecting optional Wireless LAN unit and customer display.
CAUTION:
It may be hard to disconnect some types of USB cable. Do not forcibly pull the cable, or
the USB connector and USB cable may be damaged. Contact qualified service personnel
if you encounter the trouble.
8 USB connector (Type B) Connects the USB cable for connecting to a computer.
See "Connecting the Printer to the Host" on page 34.
Do not
insert a Type-B USB connector into the LAN connector or the drawer kick connector. If it is
inserted, the connector, printer, and the system may malfunction.
1
USB connector (Type-A)
Connects a USB cable of a peripheral device such as an optional Wireless LAN cable set,
customer display, or handheld scanner.
2
3 Status sheet button Use this button to print a status sheet on interfaces or initialize the settings on
interfaces.
4 Ethernet connector Connects the 10BASE-T/100BASE-TX Ethernet cable.
5 Drawer kick connector Connects the cash drawer or the optional external buzzer.
See "Connecting the Cash Drawer" on page 40, and "Connecting the Optional External
Buzz
er" on page 42.
6
Power supply connector Connect the AC adapter.
See "Connecting the AC adapter" on page 33.
7
USB connector (Type B) Connects the USB cable for connecting to a computer.
See "Connecting the Printer to the Host" on page 34.
