Rev. E Notices for Replacement of the TM-U210/TM-U300 6-9
TM-U220 Technical Reference Guide

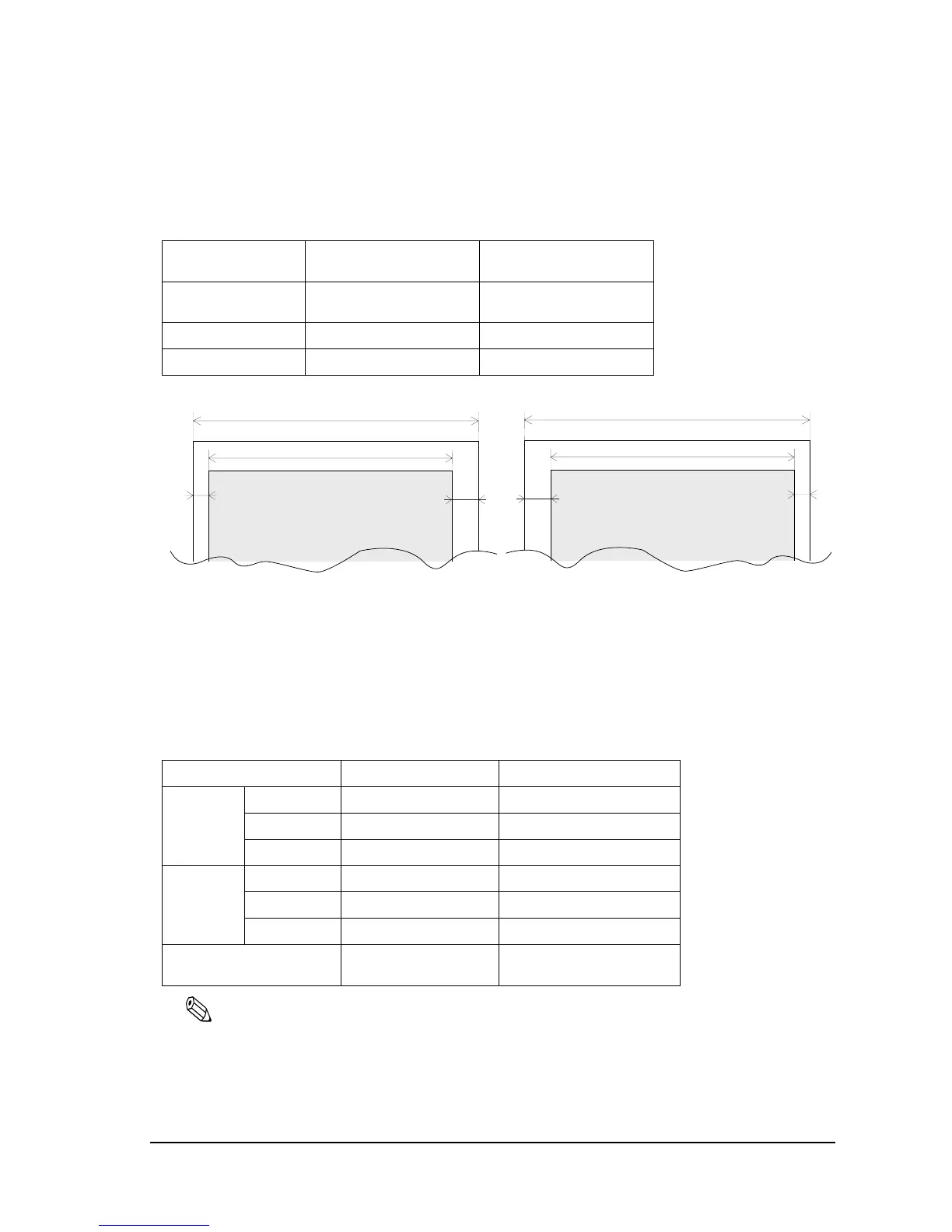

6.2.1.1 Printing area
The TM-U220 has almost the same printing area as the TM-U300 as shown in the following table
and figures. Therefore, the TM-U220 can print same contents as the TM-U300 without any
adjustment of original control sources.
This value is reference value.
Printing area and margins
6.2.1.2 Characters
The TM-U220 has almost the same character spec as the TM-U300. Therefore, the TM-U220 can
print the same contents as the TM-U300 without adjusting any original control sources.
Note:
The character per line for Font A, B can be changed by DIP SW2-1.
The cpl of the Kanji character font can be changed by ESC/POS command. (default:22cpl to 25cpl)
Printing areaItem TM-U300 (Type A,B, C, D) TM-U220 (Type A,B, D)
(when 76mm paper using)
Print width 63.5mm
(200dots, 400 position)
63.34mm
(200dots,400position)
Left margin 6mm 6.8mm
Right margin 6.5mm 5.8mm
Character spec TM-U300 (Type A,B, C, D) TM-U220 (Type A,B, D)
Character
per line
(CPI)
Font A (9 x 9) 33 cpl 33 (35) cpl
Font B (7 x 9) 40 cpl 40 (42) cpl
Kanji (16 x 16) 25 (22) cpl 25 (22) cpl
Character
width
Font A (9 x 9) 1.6 x 3.1 1.6 x 3.1
Font B (7 x 9) 1.2 x 3.1 1.2 x 3.1
Kanji (16 x 16) 2.7 x 2.7 2.7 x 2.7
Character configuration Code page 0 to 5 Code page 0 to 8, and 19 to
26 and code page 16, 17, 18
76 mm
63.5 mm
6.5 mm
6 mm
Printable area
76 mm
63.34 mm
6.8 mm
5.8 mm
Printable area
TM-U220 (When using 76mm roll paper)
TM-U300
These values are reference values
