Epson TM
U220 Reference Guide

3-30 Setup Rev. E
3.4.7.5 Connecting a Drawer
CAUTION:
Be sure to connect a drawer that meets printer specifications. Connecting a drawer of
the wrong specifications may result in damage to both the drawer and the printer.
Never connect the telephone line to the drawer kick out connector (labeled “DK”).
Doing so may result in damage to both the telephone line and the printer.
Never connect the drawer cable to the customer display connector (labeled “DM-D”).
Doing so may result in damage to both the drawer cable and the printer.
1. Connect the drawer cable to the drawer kick out connector (labeled “DK”) on the connector
panel.

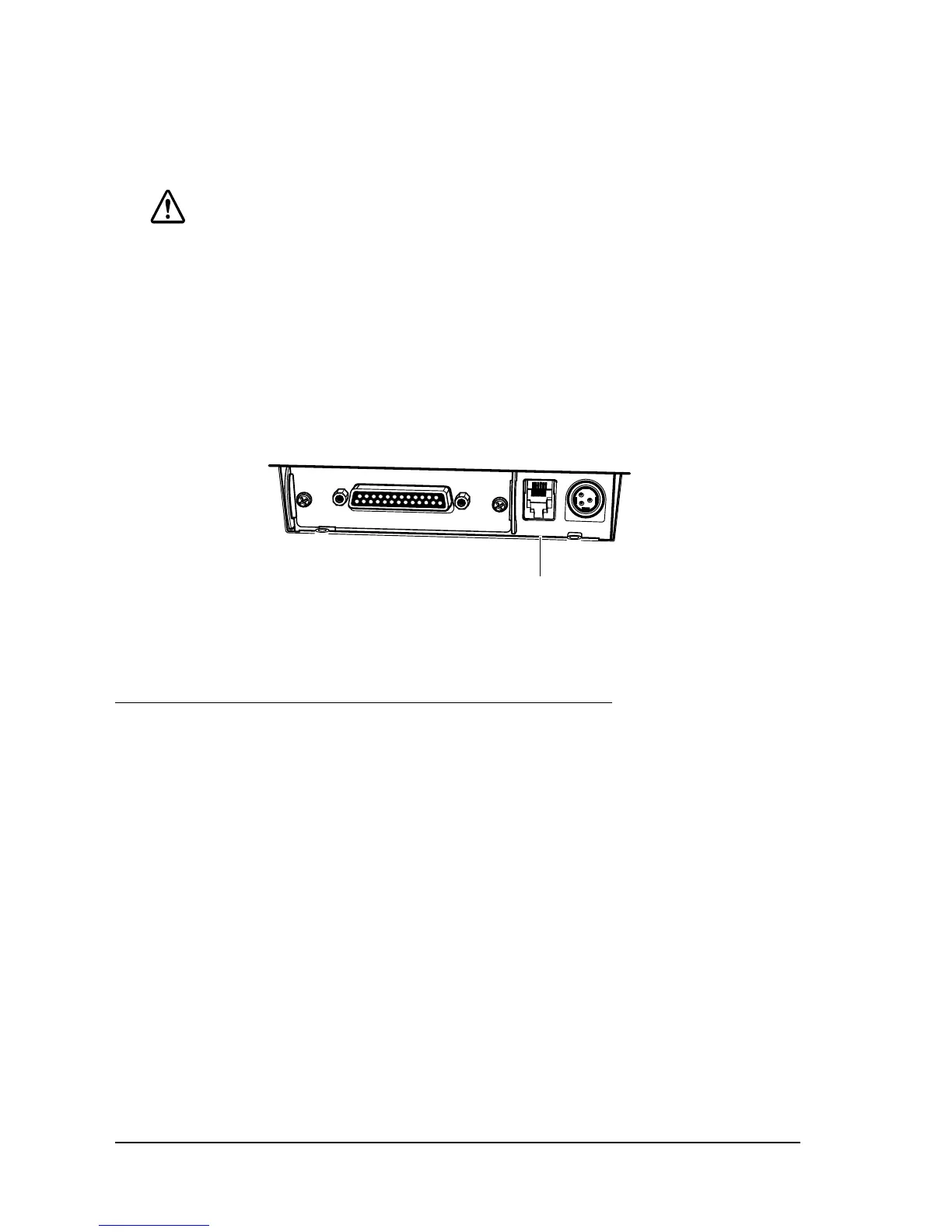

Connecting drawer
2. The connecting is finished.
3.5 Install a Printer Driver in the Host PC / POS Terminal
EPSON provides printer drivers for the TM-U220. The drivers are OPOS and Advanced Printer
Driver (APD). They are for the Windows® environment.
3.5.1 OPOS
3.5.1.1 Install and Set up.
When you install and set up, please refer to the User's Manual, the file is automatically created at
the installation of OPOS ADK.
DK
DC24V
FG
FG
Drawer kick connector

Epson TM
U220 Specifications

General

Print speed	4.7 lps
Character size	1.6 x 3.1 mm
Print technology	Dot matrix
Paper dimensions	57.5±0.5/69.5±0.5/76±0.5 x 83.0
Dimensions (WxDxH)	160 x 286 x 157.5 mm
Certification	WEEE/RoHS
Mean time between failures (MTBF)	180000 h
Parallel connector	Yes
Standard interfaces	Parallel
