Epson TM
U220 Reference Guide

2-8 System Planning Rev. E

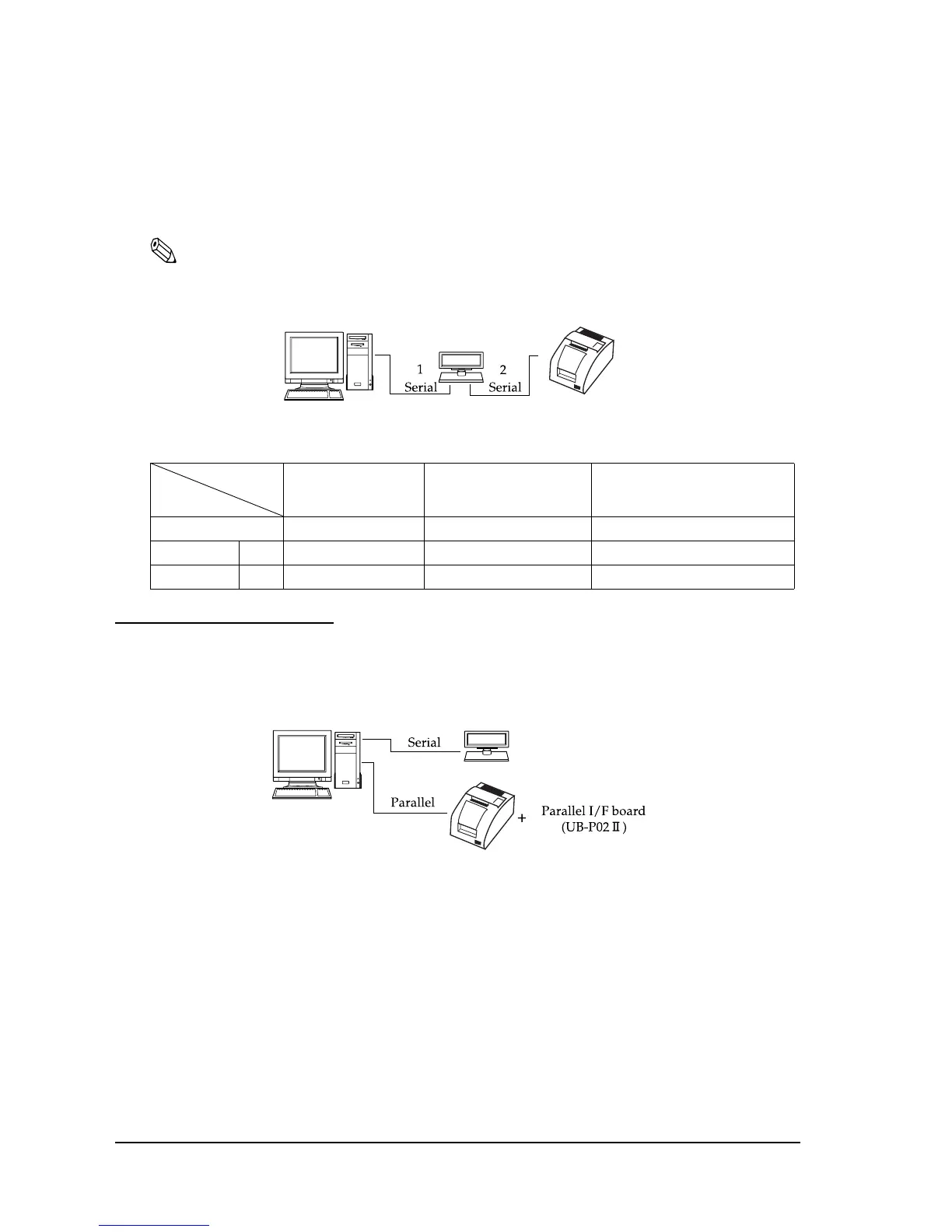

2.3.3 Pass-through connections
The TM printer is connected to the customer display (DM-D) via a serial port, and the DM-D is
connected to the host PC via a serial port.
Note:
On the DM-D (DM-D500 etc...) which has a DIP switch to select Y-type connection, confirm that the
DIP switch has been set to “Y-type connection: Disable.”
2.4 Parallel Connection
The TM printer is connected to the host PC via a parallel interface board (UB-P02II). The
customer display (DM-D) is connected to the host PC via a serial port.
Application
TM side control
control setting
XON/XOFF
(except OPOS)
DTR/DSR
(DOS, OPOS, Visual C)
RTS/CTS
(DOS, Windows driver, Visual C,
Visual Basic, MSComm)
XON/XOFF Not available — —
DTR/DSR 1 — Type A or B Type B
2 — Type A or B Type A or B

Epson TM
U220 Specifications

General

Print speed	4.7 lps
Character size	1.6 x 3.1 mm
Print technology	Dot matrix
Paper dimensions	57.5±0.5/69.5±0.5/76±0.5 x 83.0
Dimensions (WxDxH)	160 x 286 x 157.5 mm
Certification	WEEE/RoHS
Mean time between failures (MTBF)	180000 h
Parallel connector	Yes
Standard interfaces	Parallel
