TM-U220 Technical Reference Guide
3.4.7.4 Ethernet interface

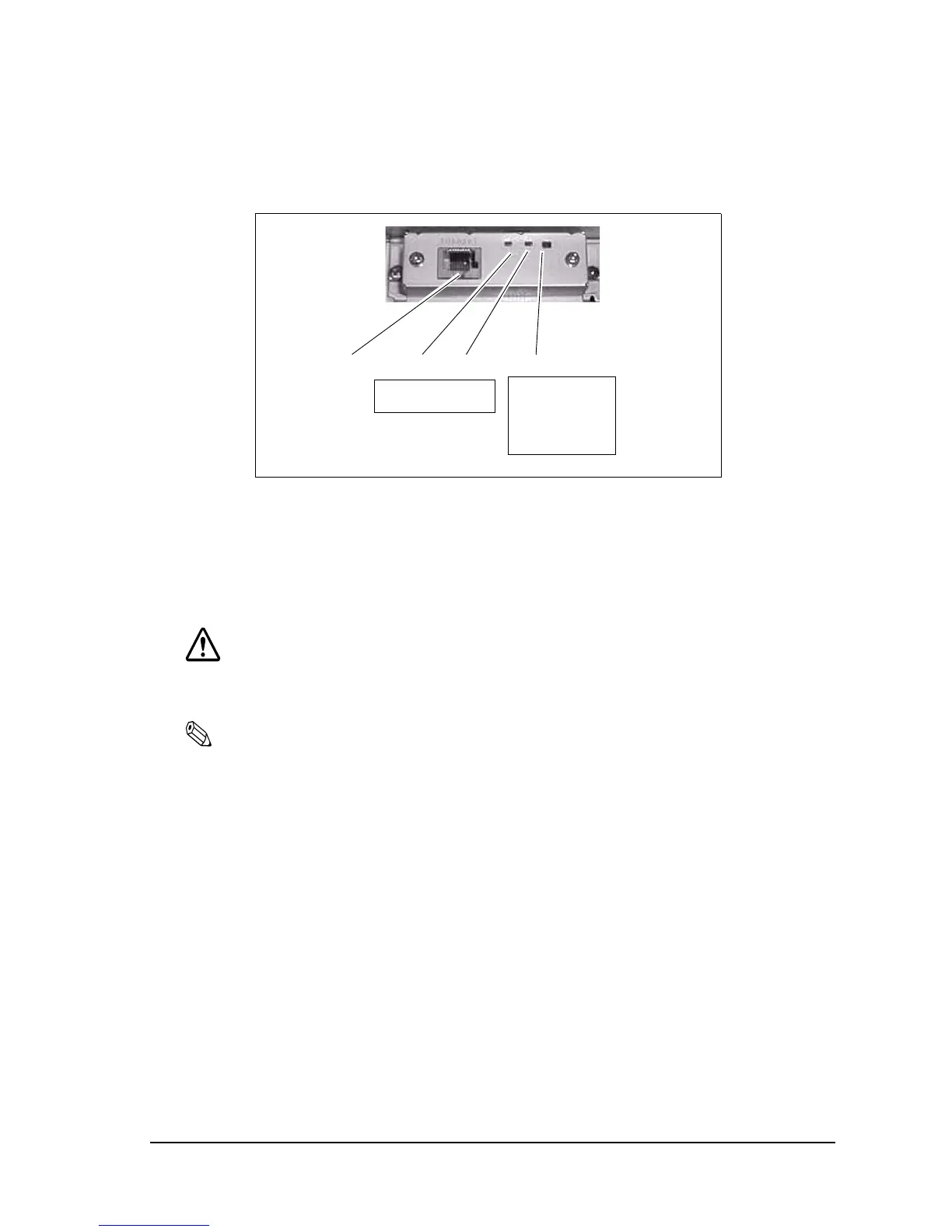

The following view shows the part names of the UB-E01.
Before connecting any of the cables, make sure that both the printer and the host computer are
turned off.
1. Make sure both the printer and the host computer are turned off.
2. Plug the 10BASE-T cable connector securely into the UB-E01's 10BASE-T Ethernet connector
until you feel it click.
CAUTION:
Do not connect a telephone line , a display module cable, or a drawer kick-out cable
to the UB-E01’s 10BASE-T connector.
Note:
The display module connector on the TM printer cannot be used when the UB-E01 is installed.
3. Connect the power supply to the printer.
10BASE-T Ethernet
interface
connector
LED (green) LED (red)
Be sure not to push the
LEDs by accident
Switch
If you press and hold
this switch when the
printer is on, the
interface will be
reset to the factory
settings

Epson TM
U220 Specifications

General

Print speed	4.7 lps
Character size	1.6 x 3.1 mm
Print technology	Dot matrix
Paper dimensions	57.5±0.5/69.5±0.5/76±0.5 x 83.0
Dimensions (WxDxH)	160 x 286 x 157.5 mm
Certification	WEEE/RoHS
Mean time between failures (MTBF)	180000 h
Parallel connector	Yes
Standard interfaces	Parallel
