B-4 How to Install the Printer on a Wall with the WH-10 Rev. E

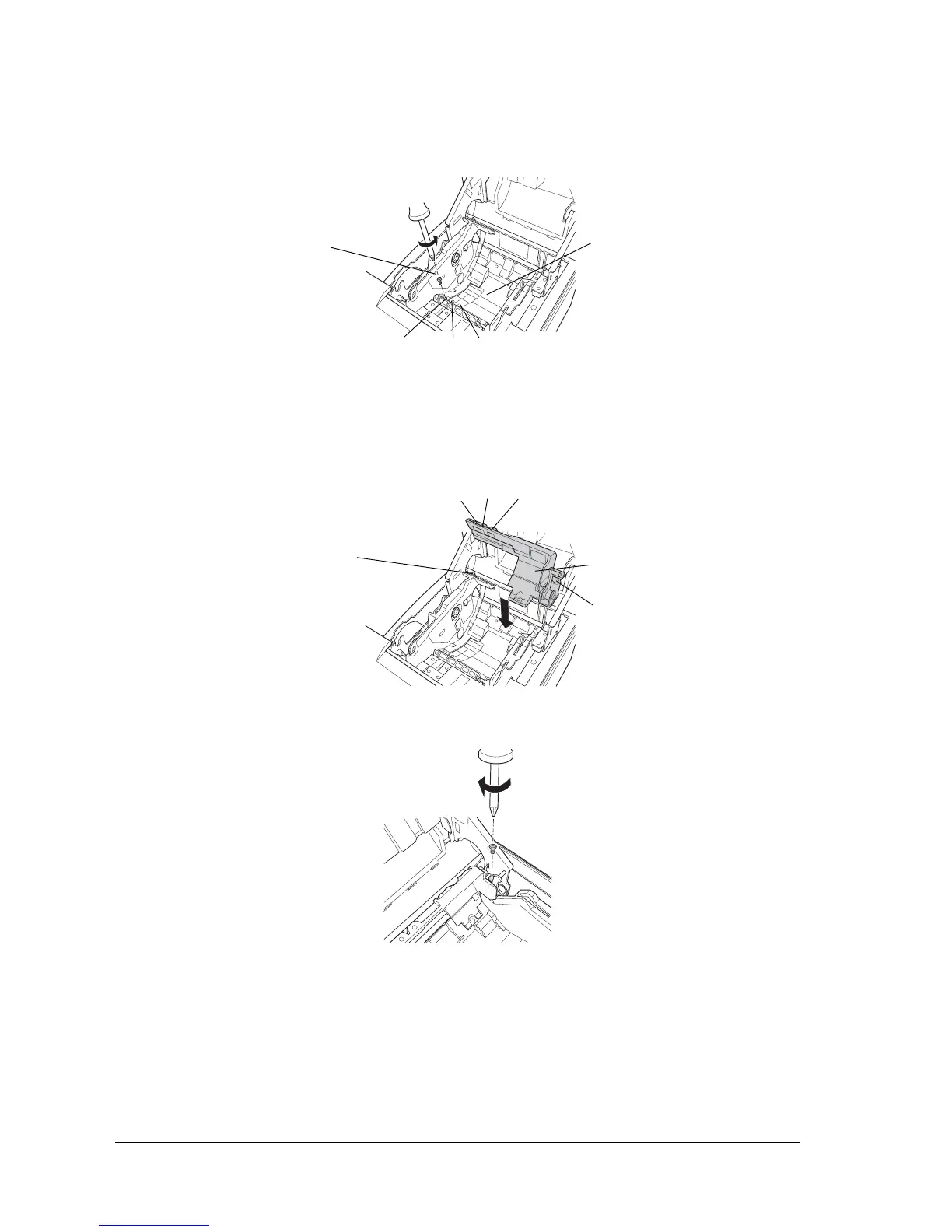

7. Align the hole on the roll paper holder for hanging bracket with the dowel on the roll paper
guide. (For a model that needs a change of paper width, the hole to be used will be different
to match your roll paper width.)
Putting the screw (3×6) in the hole on the roll paper holder for hanging bracket makes it
easier for you to tighten the screw in the next step.
8. Tighten the screw (3×6) to fix the roll paper holder for hanging bracket and the base frame.
roll paper
guide
roll paper
holder
76 mm
70 mm
58 mm
roll paper holder for
hanging bracket
76 mm 70 mm 58 mm
hole
dowel
