How to Install the Printer on a Wall with the WH-10
B-5
TM-U220 Technical Reference Guide

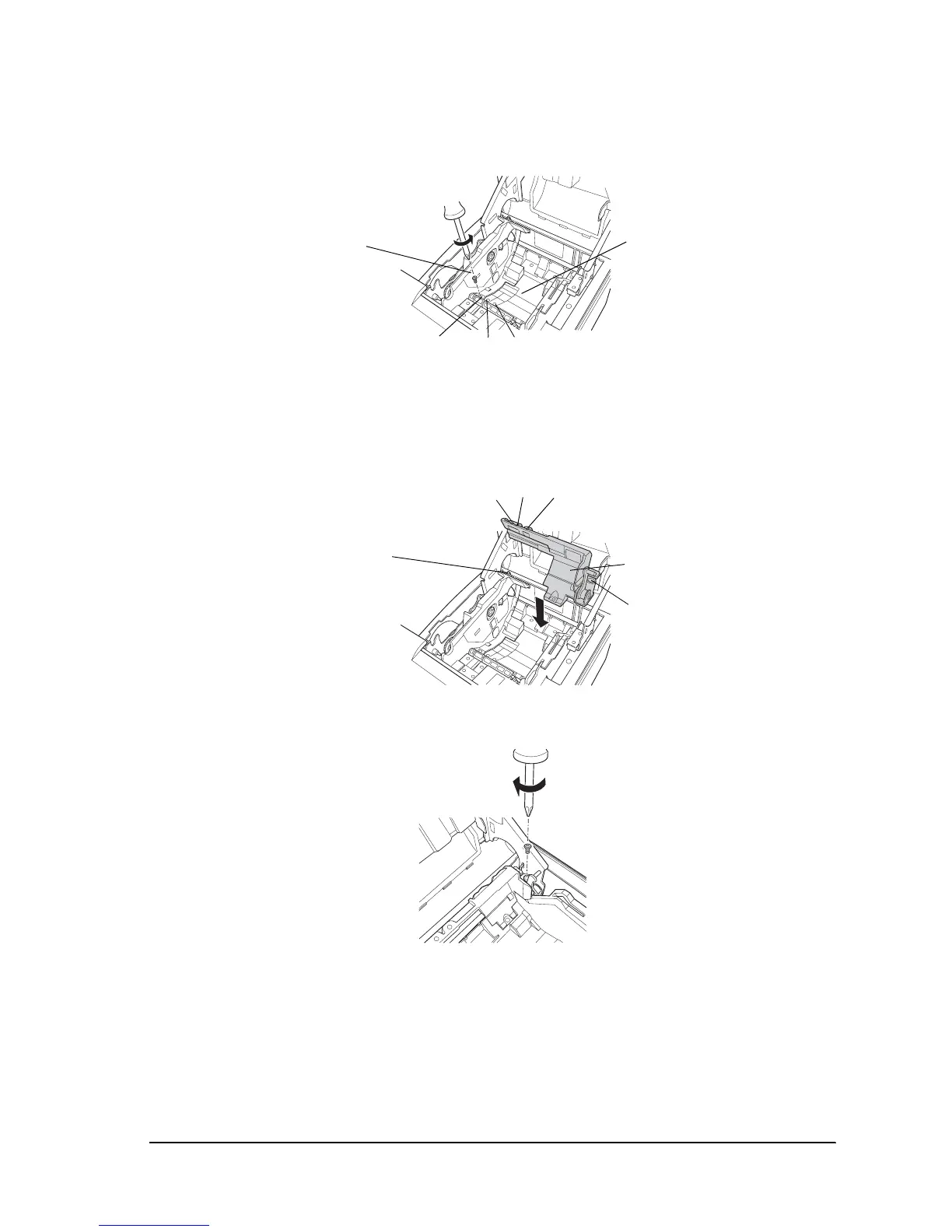

7. Align the hole on the roll paper holder for hanging bracket with the dowel on the roll paper
guide. (For a model that needs a change of paper width, the hole to be used will be different
to match your roll paper width.)
Putting the screw (3×6) in the hole on the roll paper holder for hanging bracket makes it
easier for you to tighten the screw in the next step.
8. Tighten the screw (3×6) to fix the roll paper holder for hanging bracket and the base frame.
roll paper
guide
roll paper
holder
76 mm
70 mm
58 mm
roll paper holder for
hanging bracket
76 mm 70 mm 58 mm
hole
dowel

Epson U220B - TM Two-color Dot-matrix Printer Specifications

General

Print Method	9-pin, serial impact dot matrix
MTBF	180, 000 hours
Weight	Approx. 2.5 kg
Data Buffer	4 KB or 40 bytes
Paper Handling	Friction feed
Character Set	95 Alphanumeric, 128 x 12 Graphic
Paper Dimensions	58, 70, 76 mm
Interface	USB, Serial (RS-232C), Parallel (IEEE-1284)
Reliability	18 million lines
Dimensions	160 (W) x 248 (D) x 139 (H) mm
Inked Ribbon	ERC-38
Color Support	Two-color printing (Black and Red)
Print Speed	4.7 LPS (lines per second) at 40 columns, 6.0 LPS at 30 columns
Character Size	1.2 × 3.1 mm (W × H) / 1.6 × 3.1 mm (W × H)
