Epson VT Series - Page 151

VT6L Maintenance 18. Controller Unit
VT series Maintenance Manual Rev.2 139
(

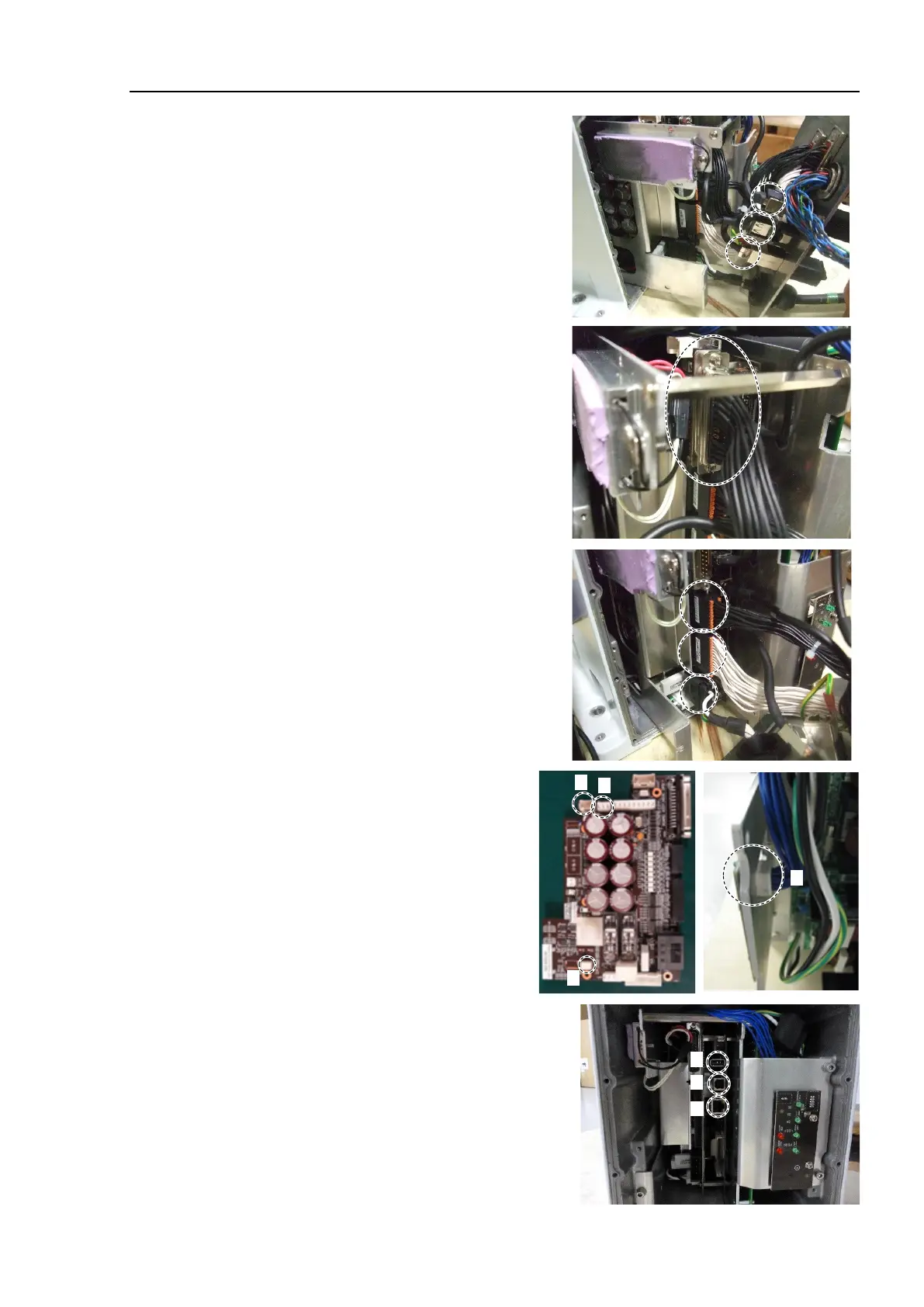

6)
D
isconnect the following connectors.
USB type A connector
USB type B connector
LAN connector
(
7)
Disconnect the
EMERGENCY
connector.
(
8)
Disconnect the
two I/O connectors.
(
9)
D
isconnect the power connector.
(
10)
Disconnect
the following
connectors of the Controller Unit.
A: Power cable connector
B: Signal cable connector
C: LED connectors × 2
C
A
B
C
D: USB type A connector
E: USB type B connector
F: LAN connector
D
E
F
