VT6L Maintenance 8. Cable
VT series Maintenance Manual Rev.2 49

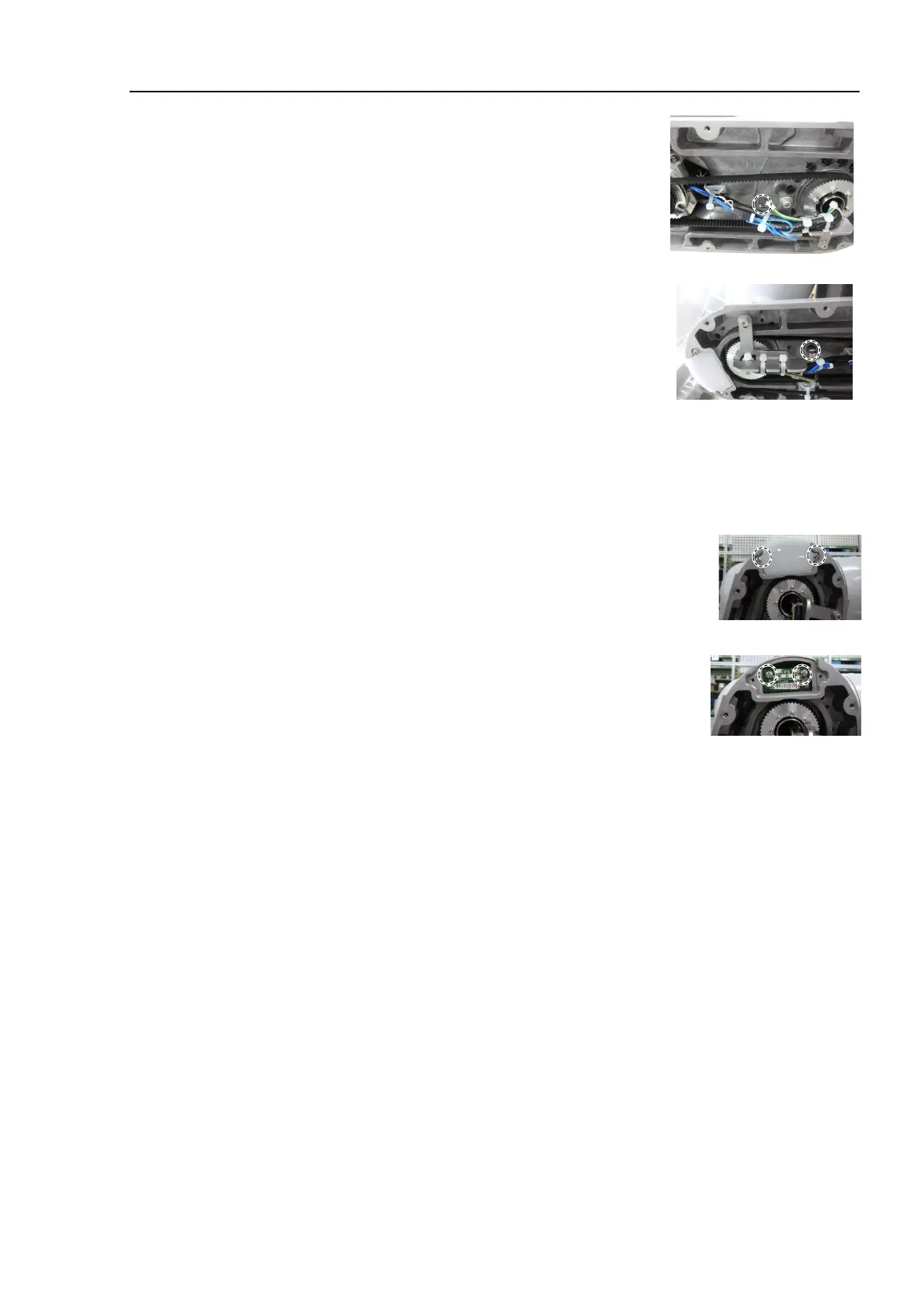

(15)
Remove the
ground wire terminals of Arm #2.
Cross recessed head screws: 2-M4×6
(16)
Remove the Joint #2 motor.
Reference: 10.1 Replacing Joint #2 Motor
(17)
Remove the Joint #3 motor.
Reference: 11.1 Replacing Joint #3 Motor
(18)
Remove the light guide plate.
Cross recessed head screws: 2-M3×10
(19)
Unscrew the cross recessed head screws fixing
the LED
board.
Cross recessed head screws: 2-M3×6
