VT6L Maintenance 8. Cable
50 VT series Maintenance Manual Rev.2
(20)

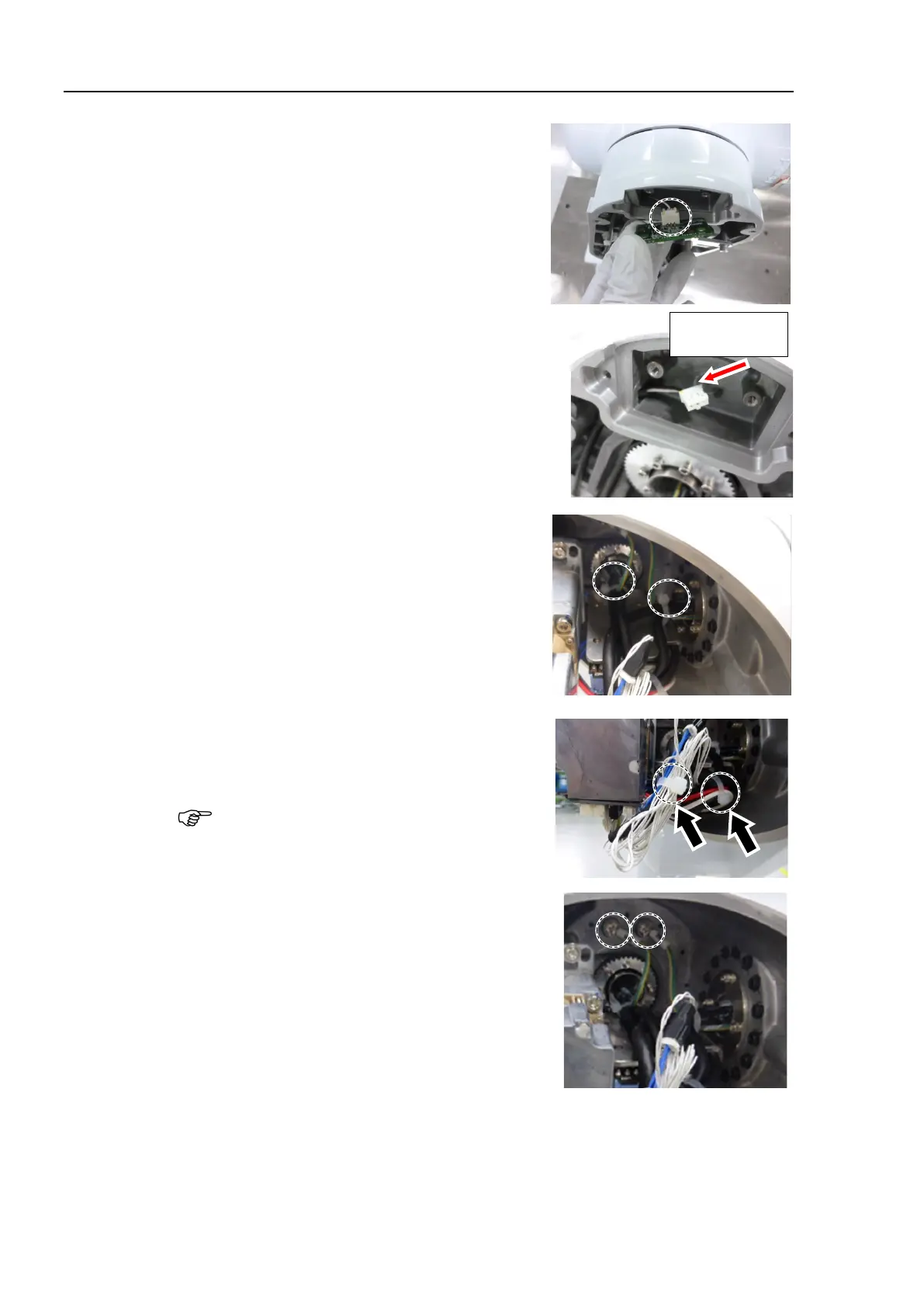

Disconnect the connector which is connected
to
the LED board.
Connector: LED_CN1
(21)
Pass
the LED cable through the opening of
the
Arm #2 and pull the LED cable out.
Pass through the
opening
(22)
Cut off the wire tie bound to the plate inside the
Arm #3.
Wire ties: AB150 ×2
(23)
Cut off
the wire ties that bind the
power cable
and
the signal cable of Joint #4 motor.
Wire ties: AB100 × 2
Be careful not to cut
the harness.
(24)
Remove the ground wire terminals
of Arm #3.
Cross recessed head screws: 2-M4×6

NOTE
