5 Cover lock

Parent topic: Product Parts Locations

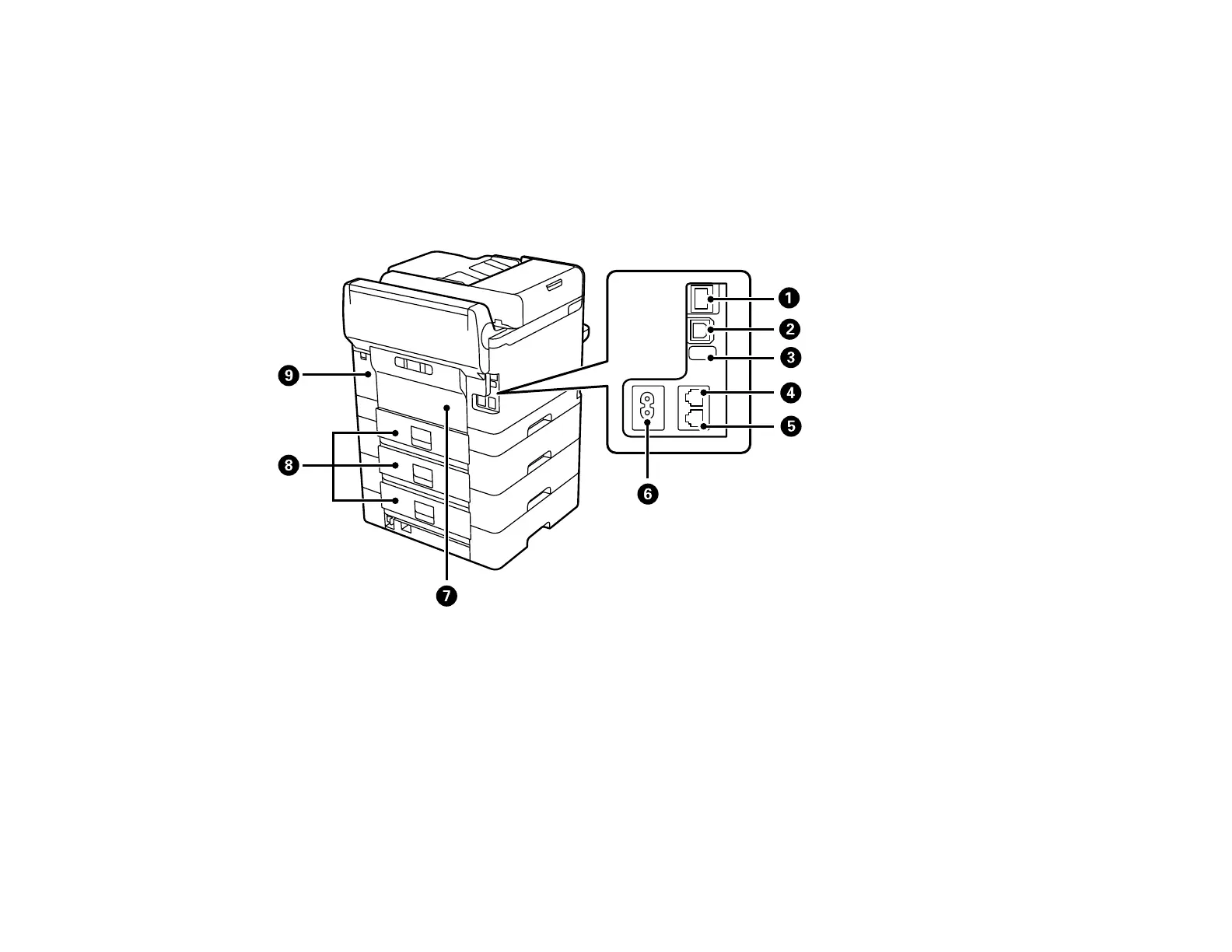

Product Parts - Back

Certain parts are labeled with a letter and number code. If you encounter any paper jams or errors, use

these codes to locate and correct the problem.

1 LAN port

2 USB port

3 Service USB port (do not remove sticker)

4 LINE port

5 EXT. port

6 AC inlet

7 Rear cover (D)
