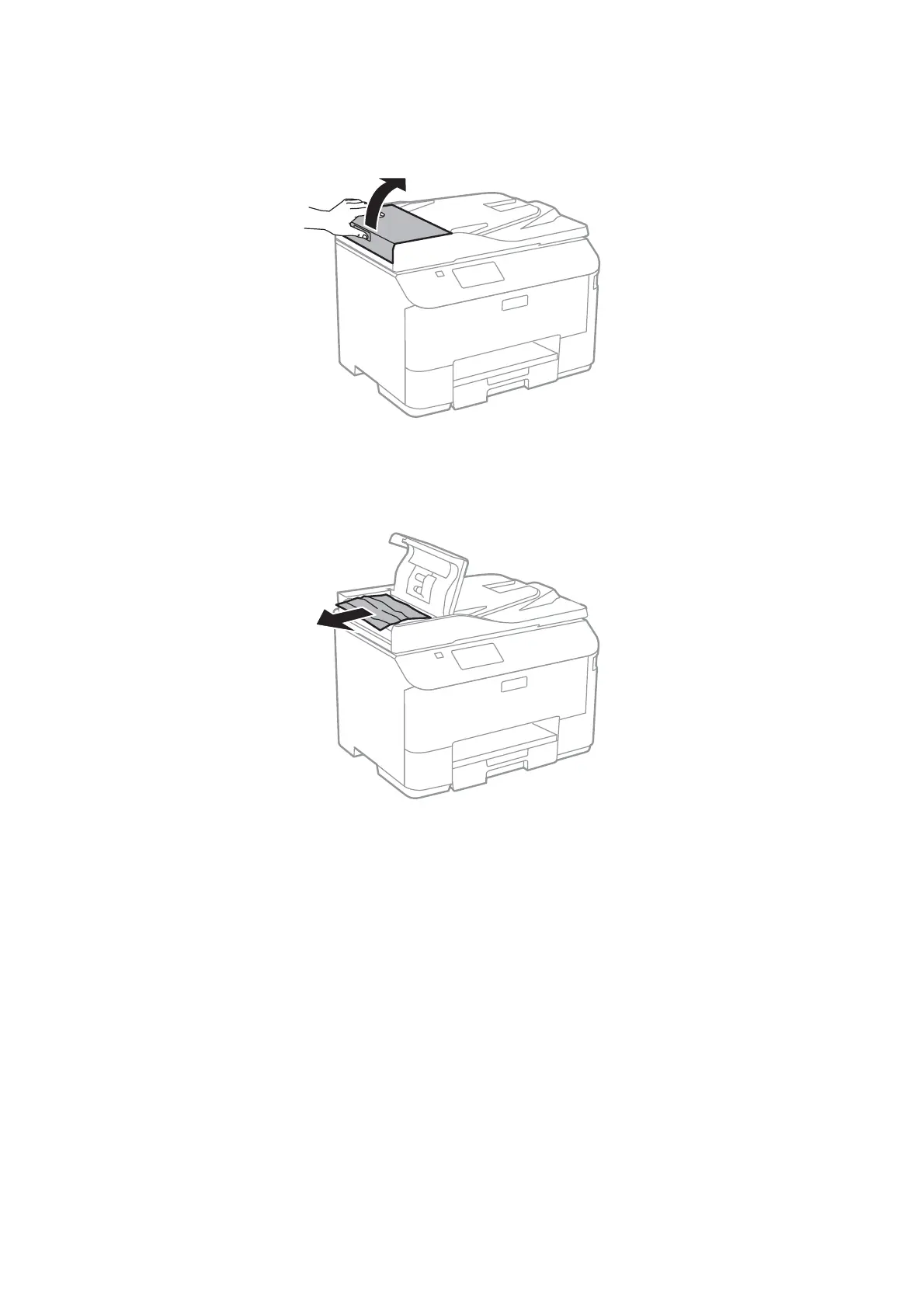

1. Open the ADF cover.

2. Remove the jammed paper.

3. Close the ADF cover.

User's Guide

Solving Problems

146
