248

Printable Area Specifications

Note: When printing borderless, quality may decline in the expanded printable area.

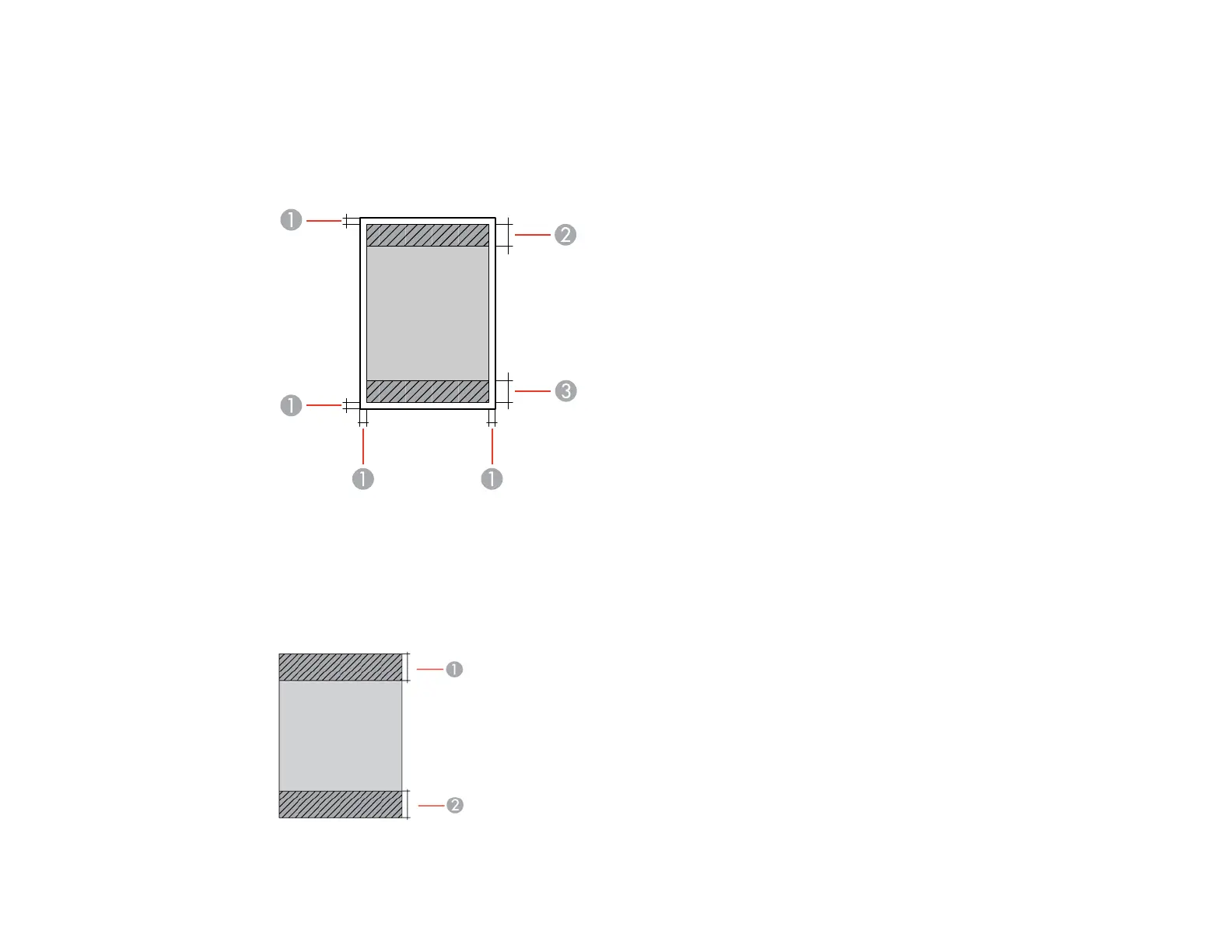

Single sheets - borders

1 Top/bottom/left/right margins: 0.12 inch (3 mm) minimum

2 Reduced print quality area/top: 1.61 inches (41 mm) minimum

3 Reduced print quality area/bottom: 1.46 inches (37 mm) minimum

Single sheets - borderless
