8 • Installation
80114-770_V23802
2021-01

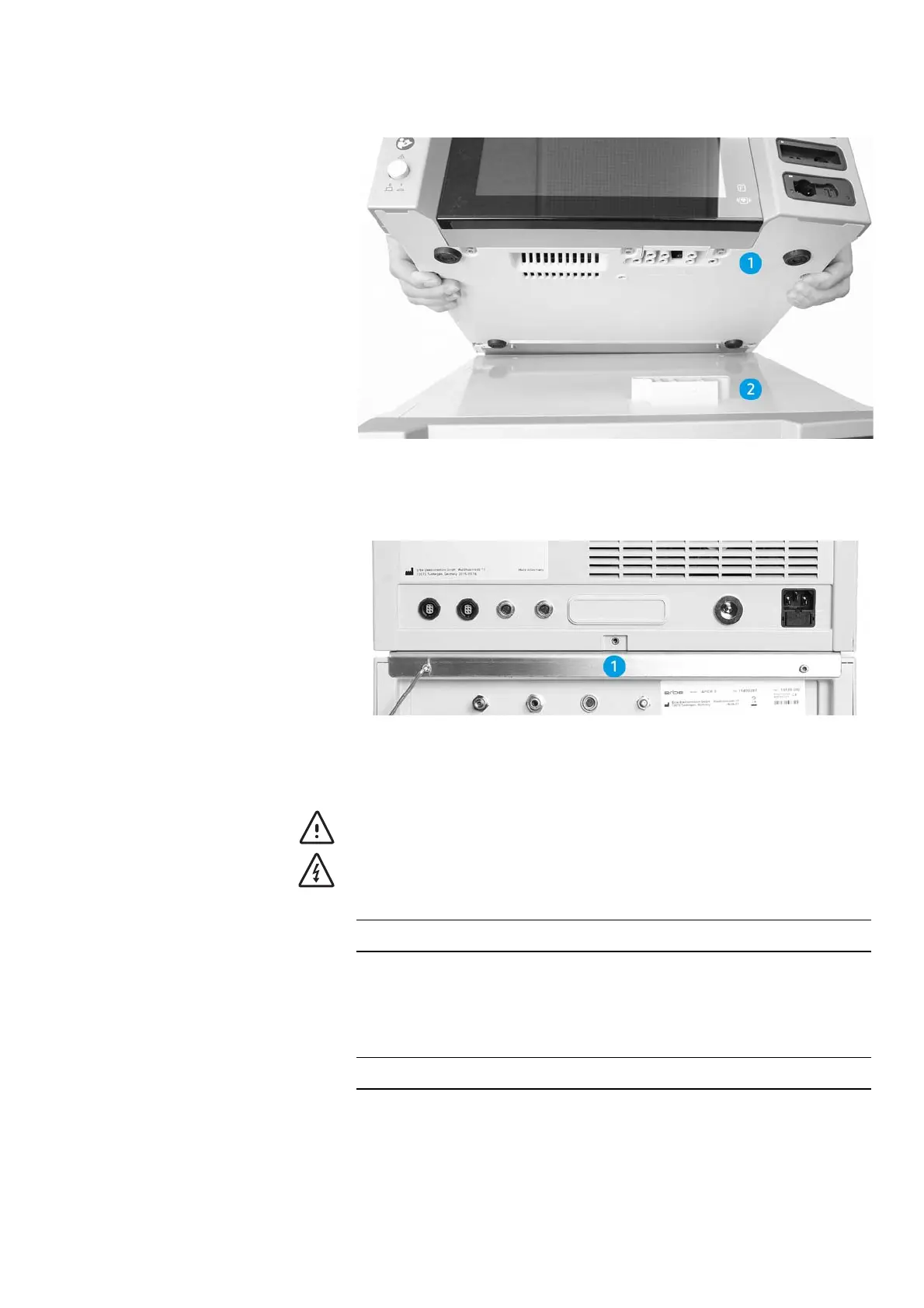

Fig. 8-3
3. Place the VIO 3 on the cover of the APC 3.
4. Insert the contacts of the VIO 3 (1) into the interconnections (2) of the APC 3.
Fig. 8-4
5. Screw the fixing bracket (1) to the rear of the APC 3 (2.5 mm hex socket wrench).
*Meaning of the symbols on the cap:
WARNING! Read the user manual before removing the cap.
WARNING! HF voltage when the unit is activated.
Installation of the APC 3 on an overhead suspension arm system
For the installation of the APC 3 on an overhead suspension arm system, you require
fastening set no. 20180-143. Installation instructions are included with the fastening
set. Install the APC 3 according to the installation instructions.
Installation of the APC 3 on an Erbe equipment cart
Please read the User Manual for the equipment cart concerned. There you will find in-
structions on how to secure the unit to the equipment cart.
