5 OPERATION
0463 933 001
- 15 -
© ESAB AB 2023
5 OPERATION
General safety regulations for handling the equipment can be found in the "SAFETY" chapter
of this manual. Read it through before you start using the equipment!
NOTE!
When moving the equipment use intended handle. Never pull the cables.
WARNING!
Electric shock! Do not touch the workpiece or the welding head during operation!

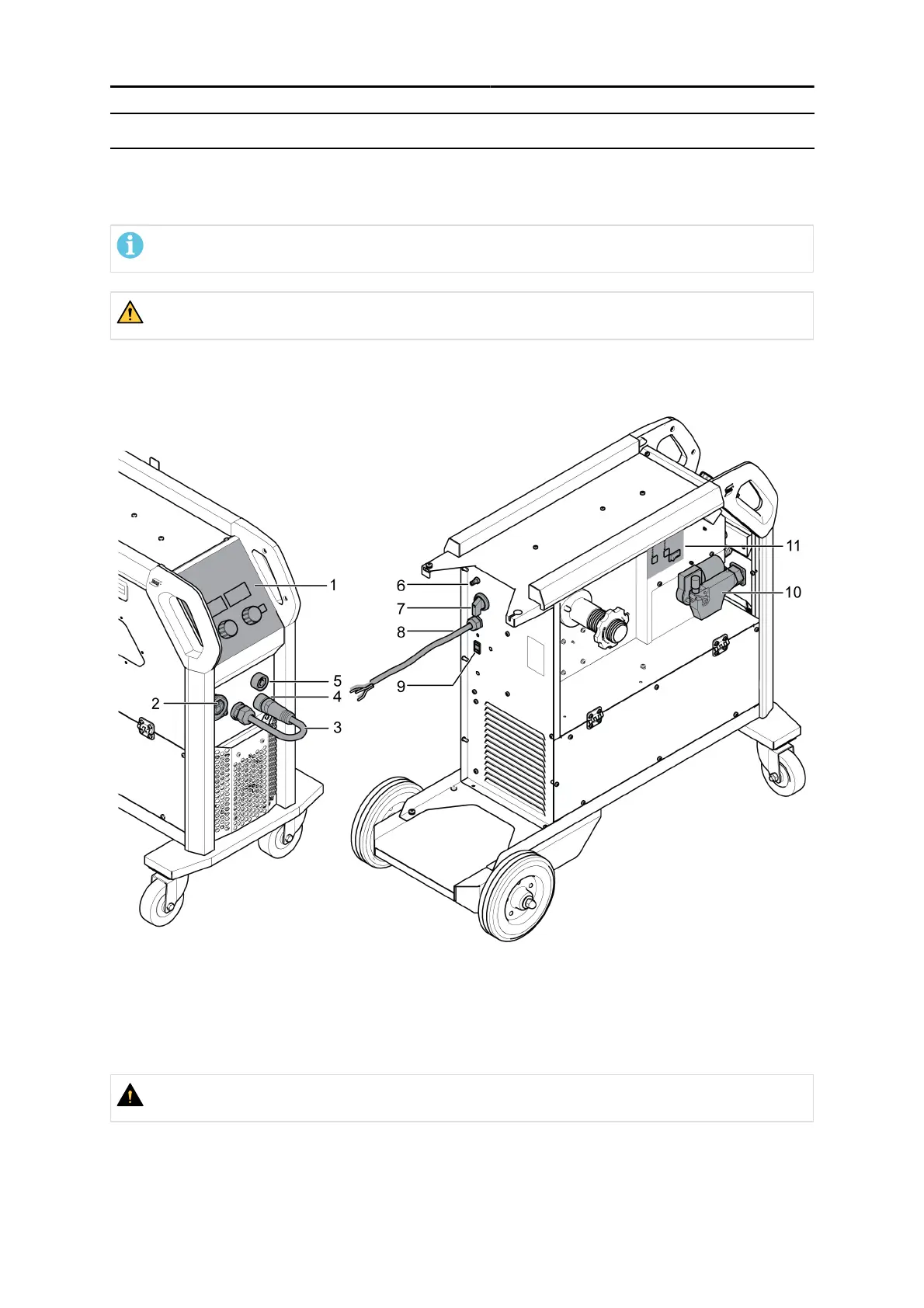

5.1 Connections and control devices
1. External control panel 7. Mains power supply switch, O/I
2. Connector for welding torch 8. Mains cable
3. Cable for change the polarity 9. Heater socket (optional)
4. Negative welding terminal: Return 10. Wire feeding mechanism
5. Positive welding terminal: Welding cable 11. Internal control panel
6. Connection for shielding gas
CAUTION!
The heater socket may only be installed by ESAB After-Sales personnel.
