B3 Corner Installations

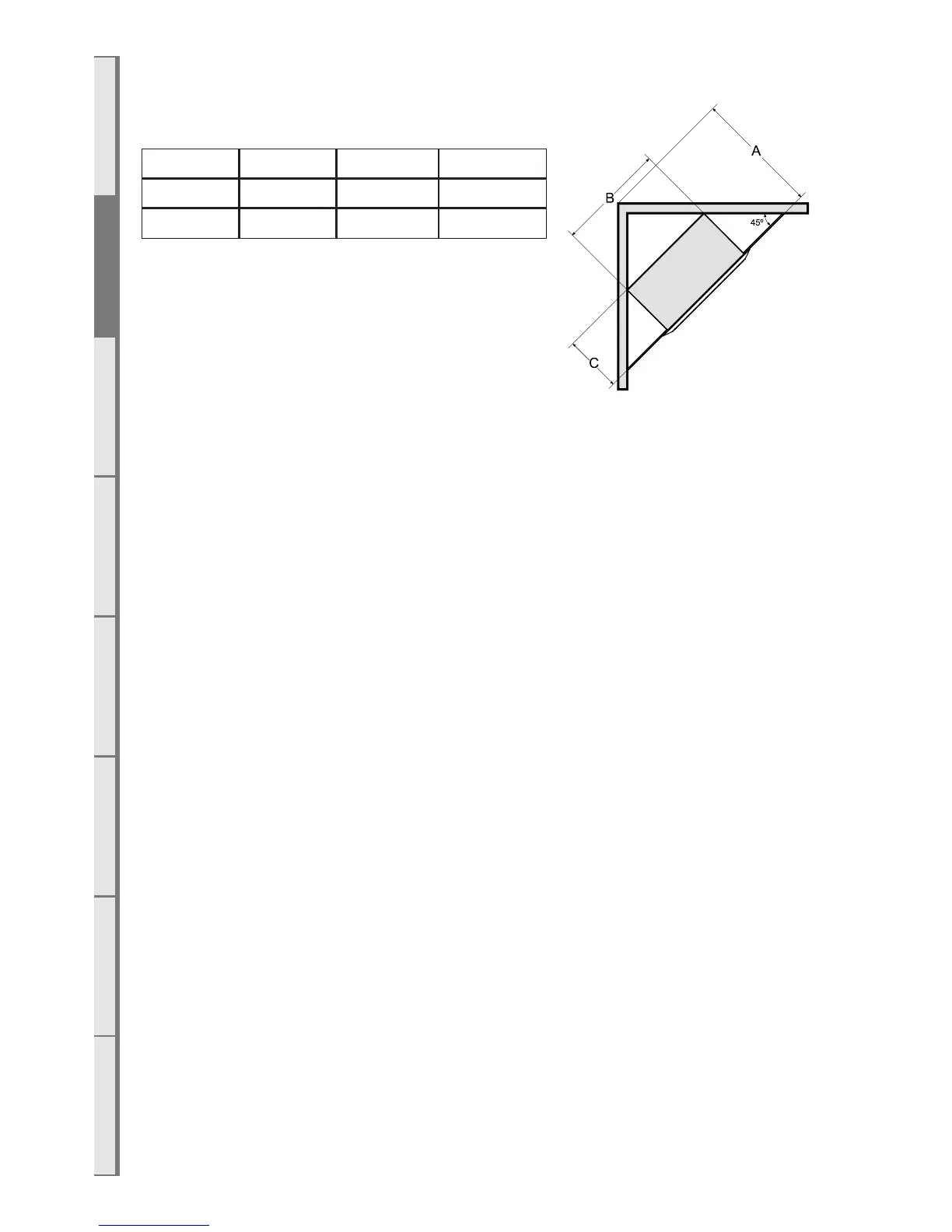

If a cavity is to be created in a corner, the following drawing gives the minimum sized interior wall
dimensions.
A B C
DF700 775mm 695mm 420mm
DF960
915mm 945mm 435mm
B4 Hearth
A Hearth is not required, however it may be used for decorative purposes or for protection of soft/sen-
sitive flooring as stated in section B2 to allow a smaller floor clearance. The hearth should not obscure
the front face of the fire, must protrude at least 200mm from the face of the fireplace and be at least
the width of the appliance.
B5 Cavity Base
This appliance MUST be fully supported on its base. The base must extend over the entire area of the
underside of the appliance. The base must also be levelled to prevent vibration from possible fan imbal-
ance. The base of the cavity must be strong enough to support 80kgs.
B6 Wall Linings
NOTE: for false cavity installations, DO NOT line the wall before the fireplace has been fitted into
the cavity; the top standos are required to be upright for this installation type.
The DF-Series fireplace is zero clearance rated with the stando rails installed on the ouside of the
chassis. The stando rails may only be removed when installing the fire into a masonry cavity.
The side-front flanges of the appliance must be on top of the finished wall surface in order for the
fascia to mount properly. Take into account any plaster board, tiles or any other finishing surface that
may be intended for the finished wall surface.
The wall board that lines the outside of this opening can be normal dry wall (plaster board) and does
not need to be non-combustible.
If for some reason the cavity dimensions exceed those specified in section B1 a register plate is avail-
able (New Zealand Only) for purchase through your local escea distributor.
Note: The temperature of the wall lining directly above the heater does get warm and hence may
discolour paint finishes that are susceptible to temperature damage or distort vinyl wall coverings. For
durability of finishes and surfaces you should contact the relevant manufacturer for their specification.
