Installing The Appliance
E1 Installation
Note: Ensure the wall has been correctly framed to the dimensions specified in section B1 before
starting the appliance install. The wall must be lined after the fire has been fitted into the cavity with
the appliance electrical cord plugged into an outlet, carefully place the appliance in front of the cavity
base.
E2 Connecting the Flue
Carefully push the fireplace into the cavity just enough to bring the gas connection through the
silicone grommet of the appliance (as shown in the second diagram of section D5). The appliance
should have enough room above the fireplace to reach in and align the flue spigot plate onto the rails

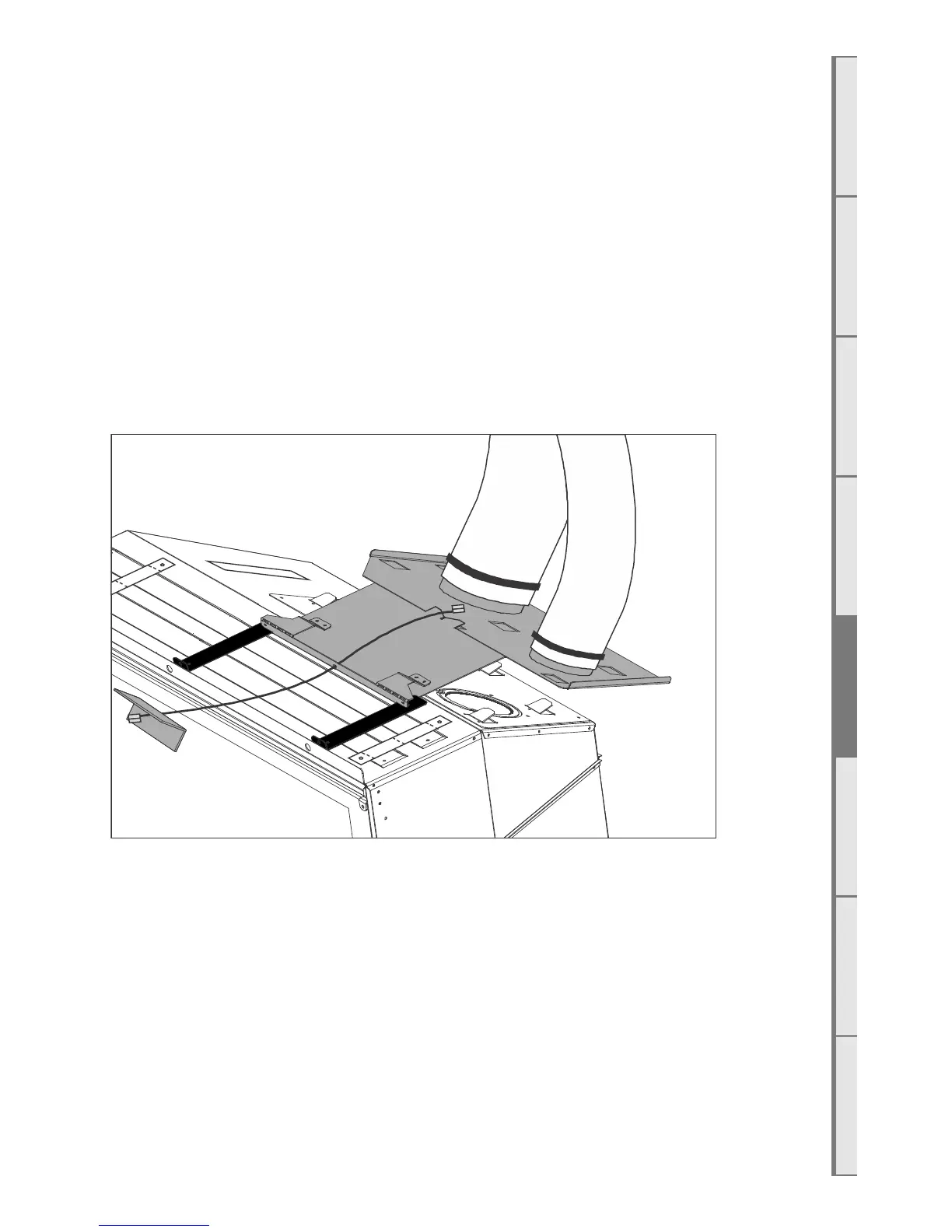

(highlighted in the diagram below). Use the cable tool provided for pulling the flue spigot plate up the
railing in a tight cavity. Use the tool as shown in the diagram below: with the cable threaded through
the hole in the front face of the flue spigot plate, locate the end of the tool into the “V” in the center
of the main fold in the flue spigot plate.
