37

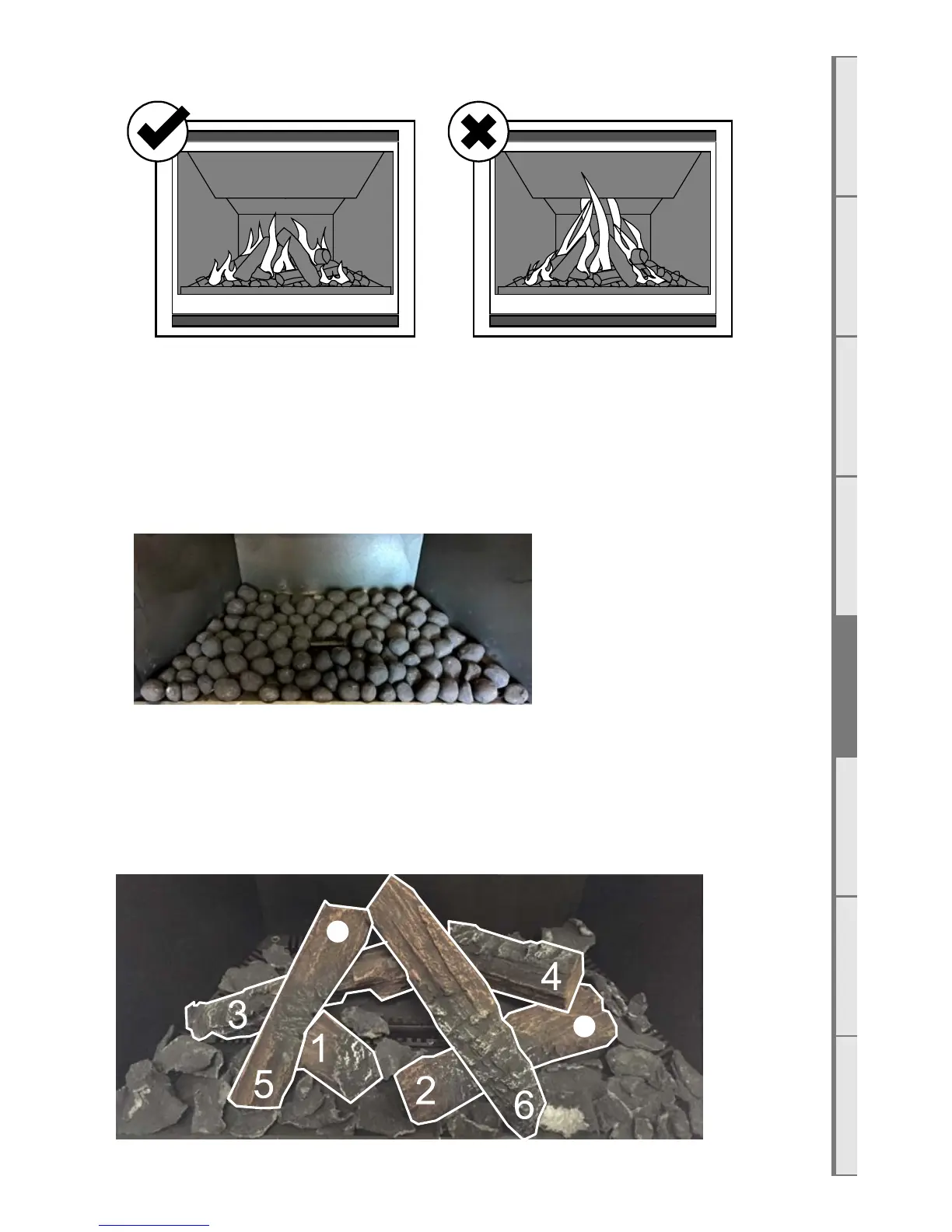

E12 Flame Picture
An abnormal flame pattern will look long and stringy and may cause soot to build up inside the firebox.
An abnormal flame pattern will likely be the result of incorrect settings (jet size, burner aeration collar,
flue restriction), and if present you must check these are correct before proceeding. If an abnormal
flame pattern is still present, please contact Escea.
It is the responsibility of the installer to ensure a correct flame pattern.
E13 Coal Fuelbed Installation
Note: The log retainer bracket must be removed when installing the coals.
Place all the Coals in a single layer atop the burners, covering the entire area except the pilot and pilot
guard .
E14 Log Fuelbed Installation
Place logs 1,2,3 and 4 down first locating them on the log retainer, followed by logs 5 and 6. The final
layout should replicate the picture shown below. Place the ember flakes in a single layer evenly after
the logs have been located correctly (excess flakes should NOT be added if one even layer has been
achieved) . The flakes must not cover the pilot or pilot guard.
Note: Logs must be located correctly as stated/depicted in this section or the warranty may void.
DF700 Log Layout
