DF960 Fan Screw Locations
S7 Removing Electronic Tray
ISOLATE THE POWER TO THE FIRE BEFORE THIS PROCEDURE.
All of the electronic components of the heater have been located on a removable tray.

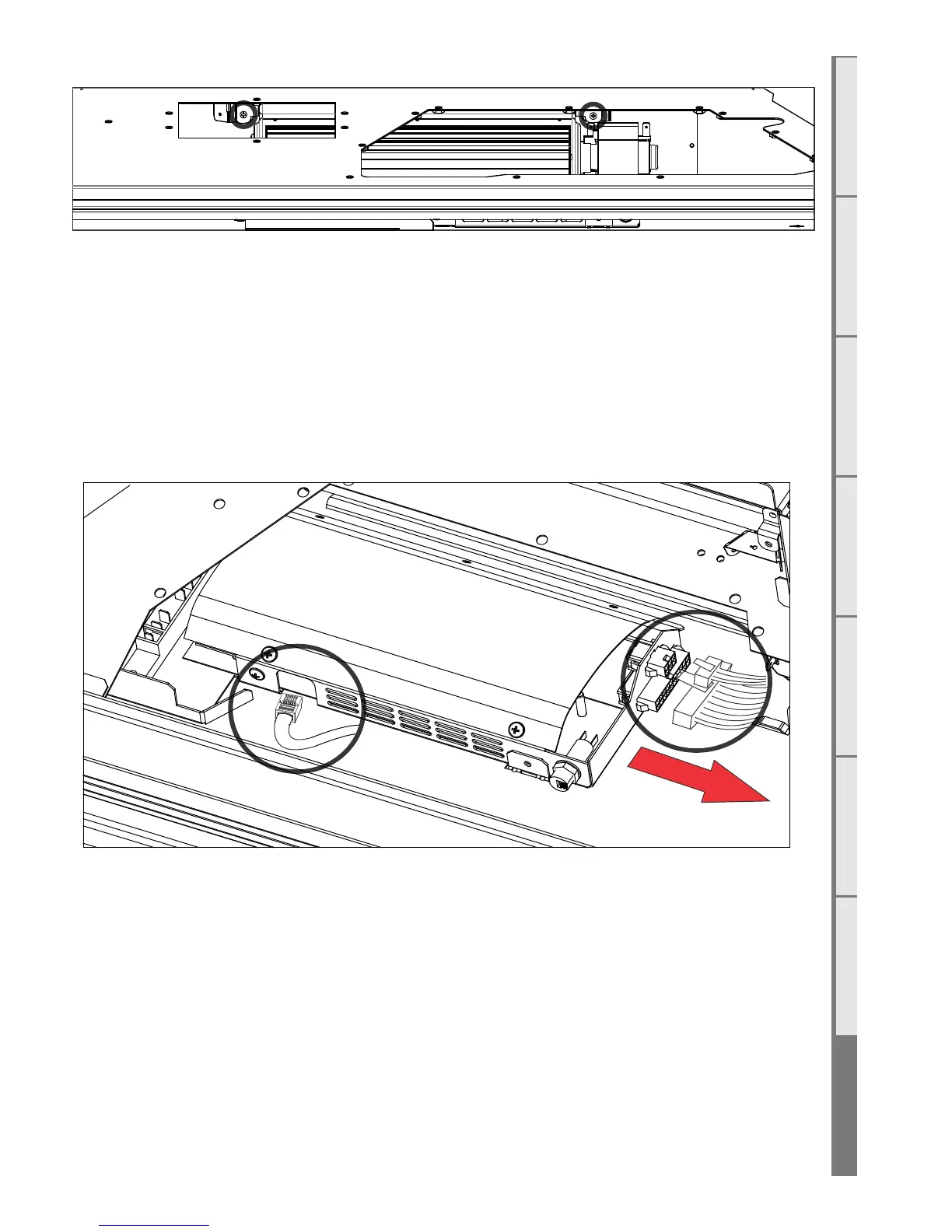

Remove the 18-way connector & 6-way connector from the end of the tray, the network cable, if
installed (both locations circled in diagram below) and the transformer connector located in the
rear LH corner of the electronics tray.
Remove one self tapping screw in the front face of the electronics tray.
The tray can now be slid towards the RH side then lifted out of the burner tray hole in the
rebox.
