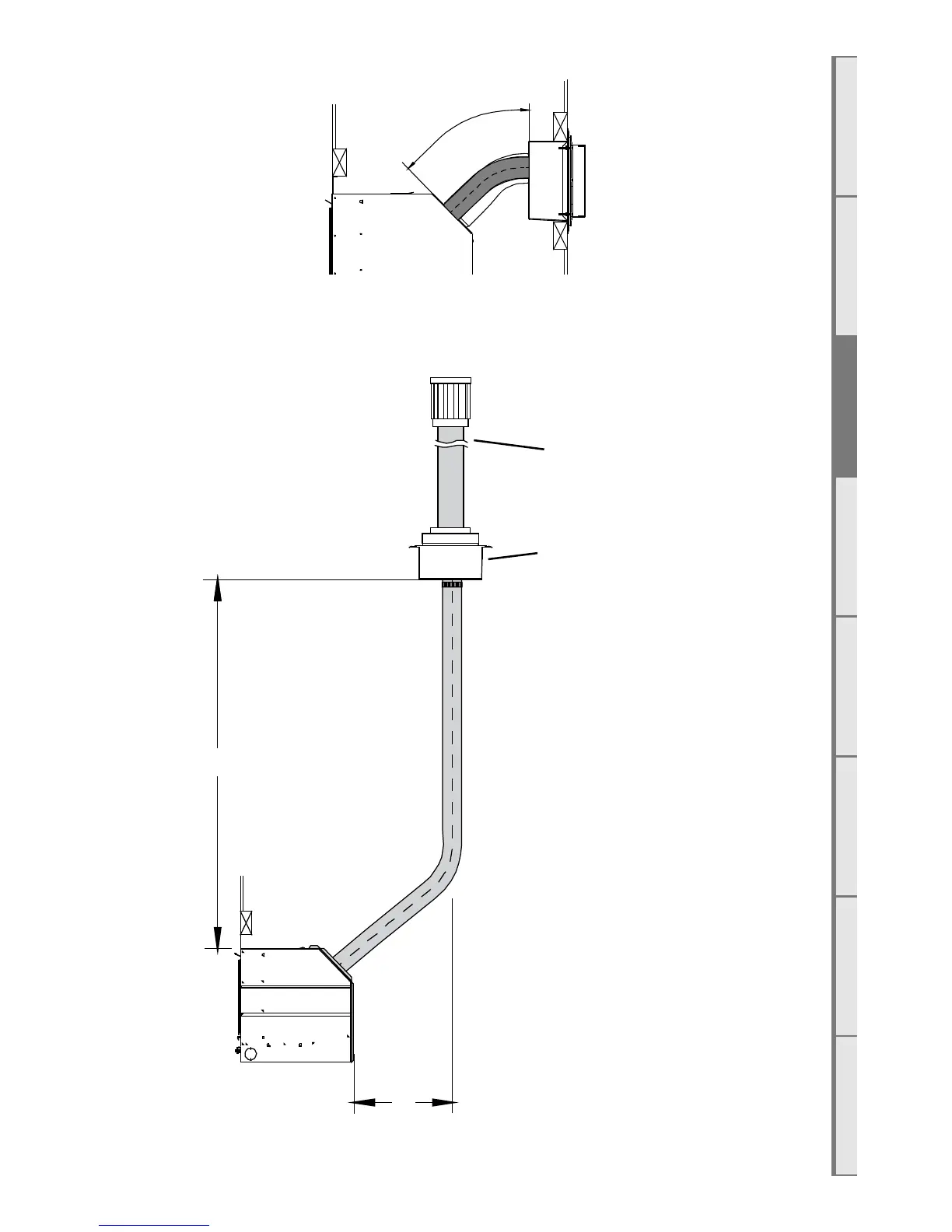

Vertically Terminated: (utilises the escea vertical power flue enclosure kit)
400mm Min.
4m Max.
Overall flue length:
1.2m Co-axial flue:
X
Y
X + Y Max = 4m
Y Max = 4m
X Max = 4m
Vertical Powerflue
Enclosure
