C2 Flue Configuration (If more than 4m flue length is required):
If your flue system is greater than 4m long (as shown in diagrams below), then a flexible flue with
condensate trap and rigid PP tube flue lengths is required.
4m
Ø80mm / Ø100mm
Flexible Flue
1.2m Co-axial Flue
Vertical Powerflue
12m MAX
Ø100mm
Condensate Trap
Ø80mm / Ø100mm
PP Tube
FOR MORE INFORMATION ON
INSTALLATION OF THE POLYPRO
FLUE, SEE ‘POLY PRO FLUE
INSTALLATION INSTRUCTIONS’
AVAILABLE ON:
WWW.ESCEA.COM
OR SUPPLIED WITH THE FLUE.
FOR POLY PRO COMPONENT GUIDES,
THESE ARE AVAILABLE ON:
WWW.ESCEA.COM
TITLED:
HORIZONTAL FLUE COMPONENT
GUIDE &
VERTICAL FLUE COMPONENT GUIDE
4m
ESCEAWALL
TERMINAL
12m MAX
Ø80mm / Ø100mm
PP Tube
Ø100mm
Condensate Trap
Ø80mm / Ø100mm
Flexible Flue

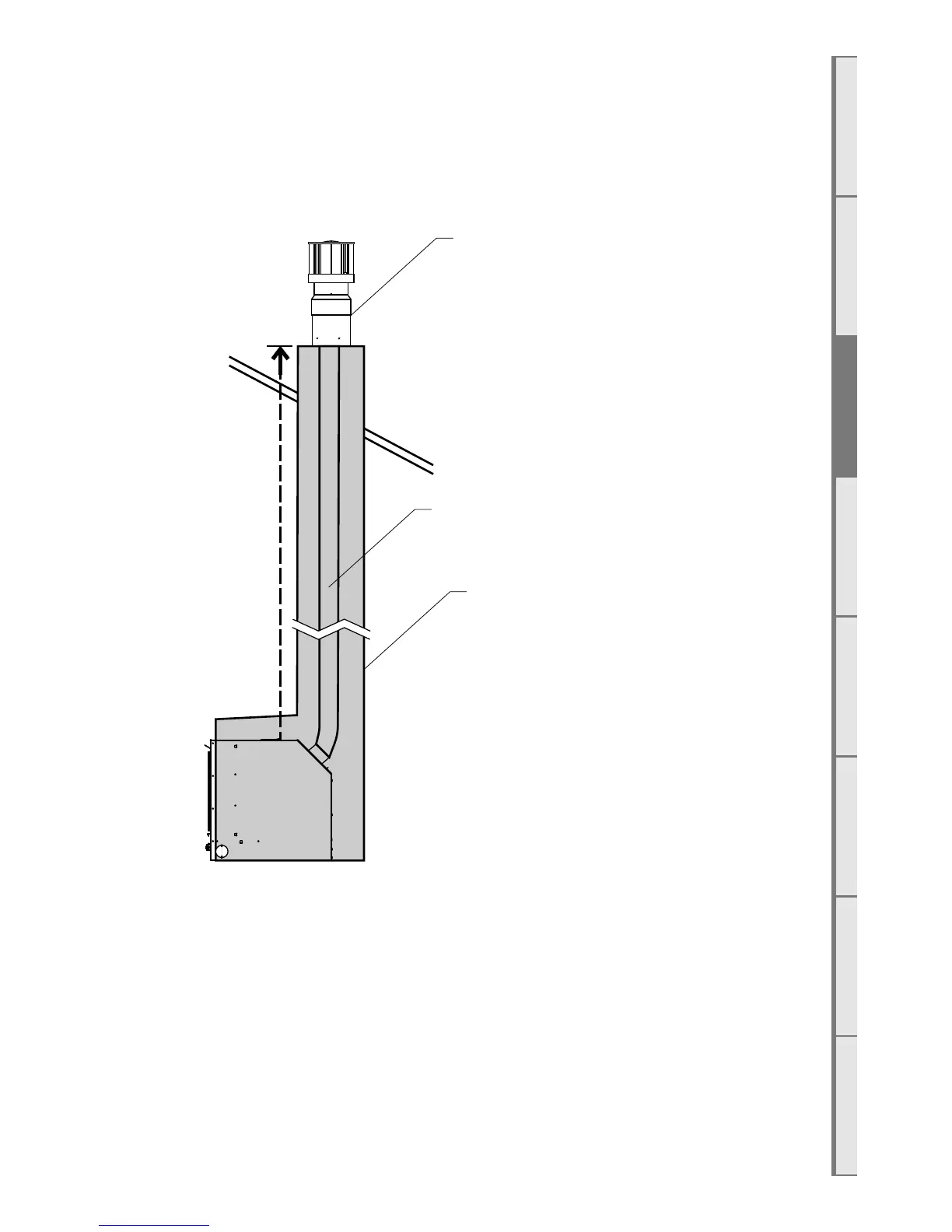

For Vertical terminations within a purpose-built sealed flue cavity
Including, but not limited to, installations into: a complete masonry chimney, a flue liner.
If your flue system is to be run vertically through a purpose-built sealed flue cavity (the cavity must
remain sealed up to the terminal), the maximum flexi flue length is 6m (as shown in the diagram
below), Polypro and a condensate drain is not required. Only the external vertical power flue kit can be
used for this installation type.
If the installation exceeds 6m vertically, contact Escea’s free architectural support service for
guidance.
6m Max
Ø80mm / Ø100mm
Flexible Flue
External Vertical
Powerue
Purpose-built
sealed ue cavity
