3.7 Exit
The Exit icon is only displayed on the Main screen. The user cannot exit the application
without first returning to the Main screen with the Home icon. To exit the Encon EV
application, <click> Exit icon. This will drop the Encon EV application and return to the
Windows XPe
TM
desktop.
3.8 Options
The Options screen enables all instrument options. To open the Options screen, <click>
the Options icon. The Options screen will be displayed. This screen contains three tabs:
Instrument, System Setup and User Accounts.

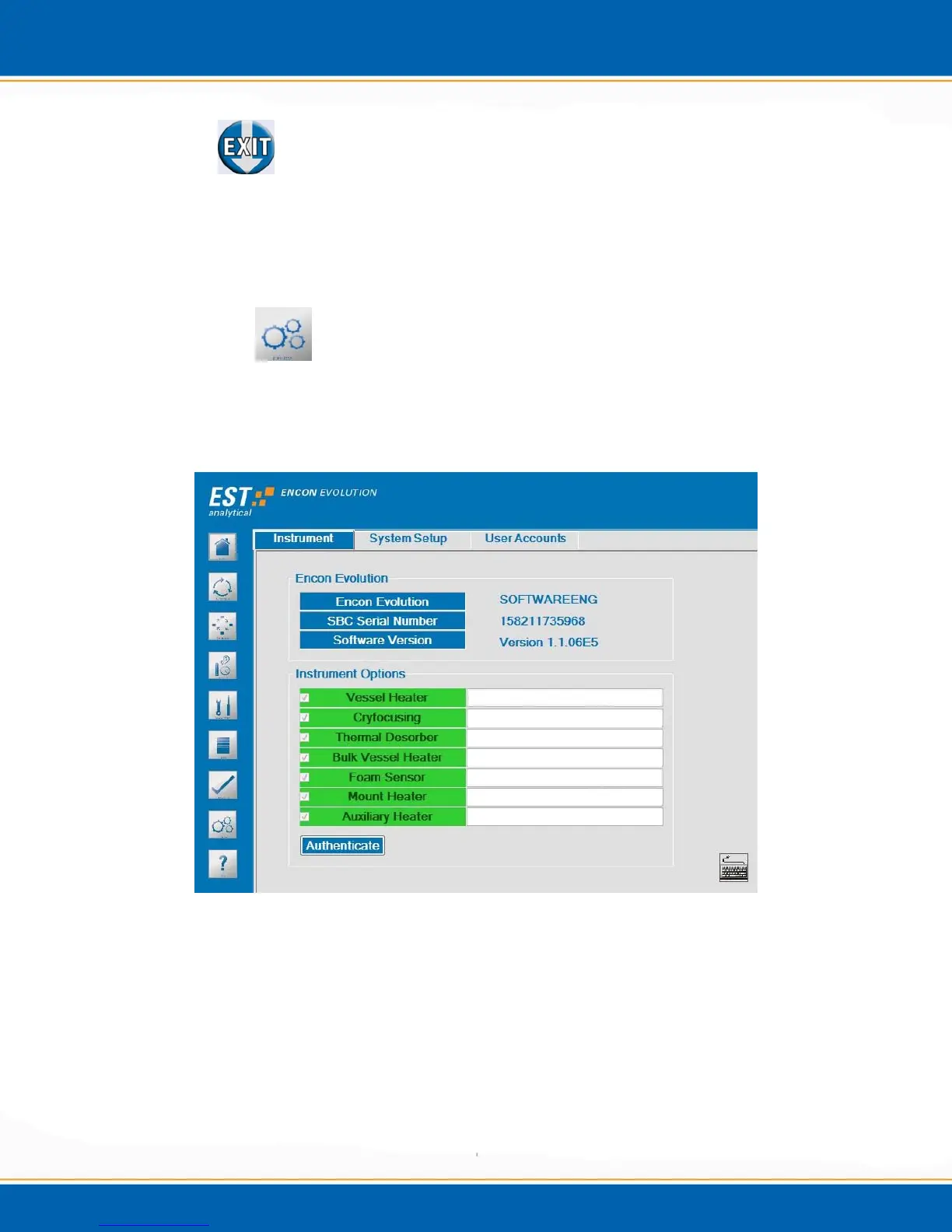

Figure 3b: Options screen – Instrument tab
Instrument tab - <click> the Instrument tab, the screen will appear as shown in Figure
3b. This provides information specific to the Encon EV instrument.
Encon Evolution – Listed in the Encon Evolution box is the instrument name, serial
number and software version. This information is used in troubleshooting and generating
key codes for the optional hardware additions to the standard Encon EV platform.
Instrument Options – Listed in the instrument options box are the manufacturer
supplied key codes to activate hardware options.
