Etac Cross 5 - Settings; Front Seat Height; Adjusting the Front Seat Height by Using the Front Fork Attachment; Adjusting the Front Seat Height by Changing the Position of the Castor Wheel

12
Etac / Cross 5 / www.etac.com
A
B
± 1,5 cm
20Nm

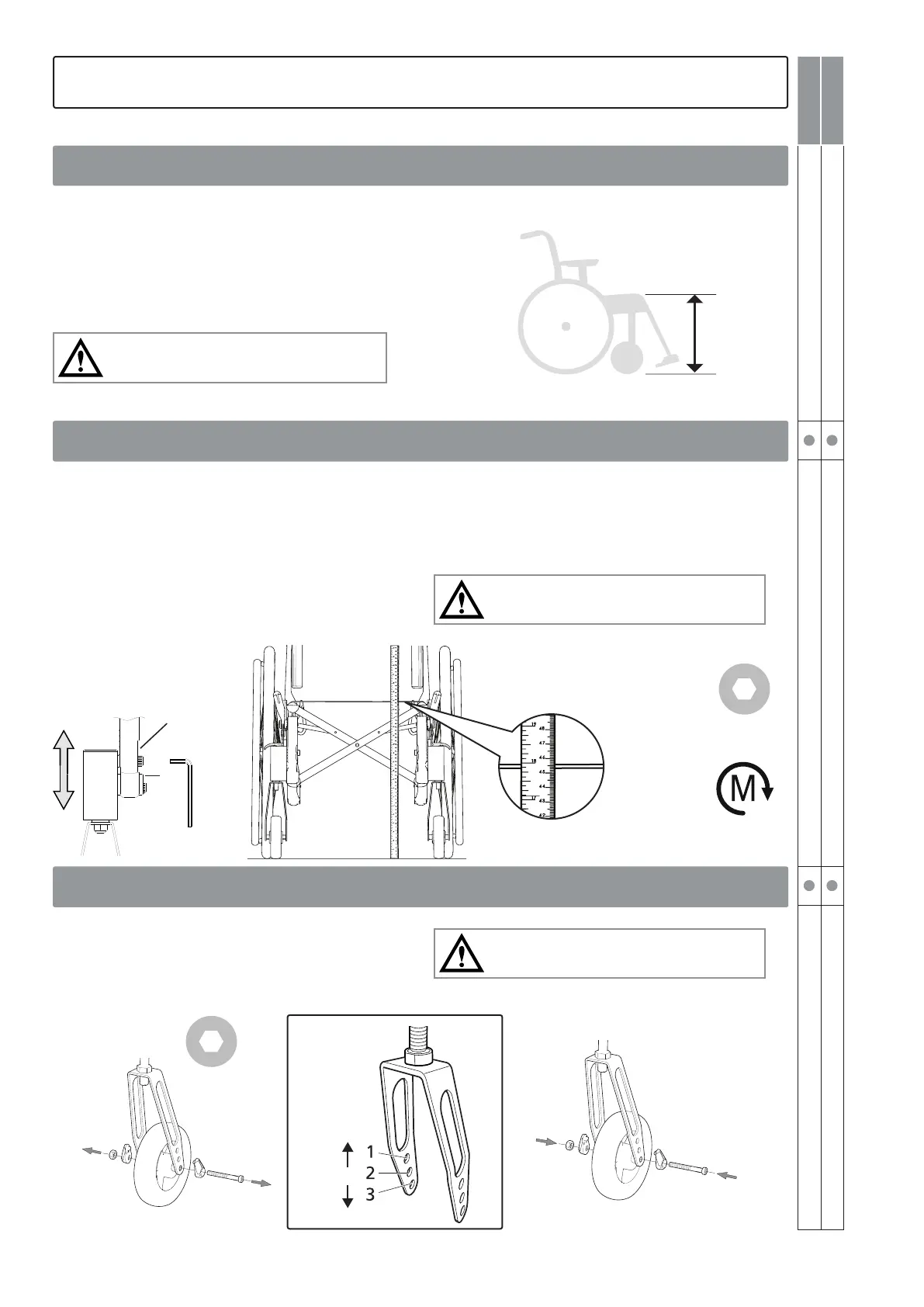

The front seat height may be adjusted by:
- Using the front fork attachment, adjustable in
height and angle.
-Changing the position of the castor wheel.
-Changing the front fork.
-Changing the castor
Tipping risk! Always check the anti-tip function
after adjustments!
Front seat height
5. Settings
Cross 5 Cross 5 XL
Loosen the screws (A and B). Set the desired seat
height by measuring from the floor to the seat
upholstery and tighten the screws on one front fork
mounting. Use the position markings as a reference
for adjusting the height on the other side. Tighten
the other mounting. Check and adjust so that the
mountings are perpendicular. (See section ’Angle
setting of front fork mounting’.) Fine-tune the height
of the front fork mountings so that both wheels are
flush with the floor.
Tipping risk! Always check the anti-tip function
after adjustments!
Adjusting the front seat height by using the front fork attachment
6 mm
See also section ”Front seat height table”.
Tipping risk! Always check the anti-tip function
after adjustments!
Adjusting the front seat height by changing the position of the castor wheel
5 mm
