Cross 5
Cross 5 XL

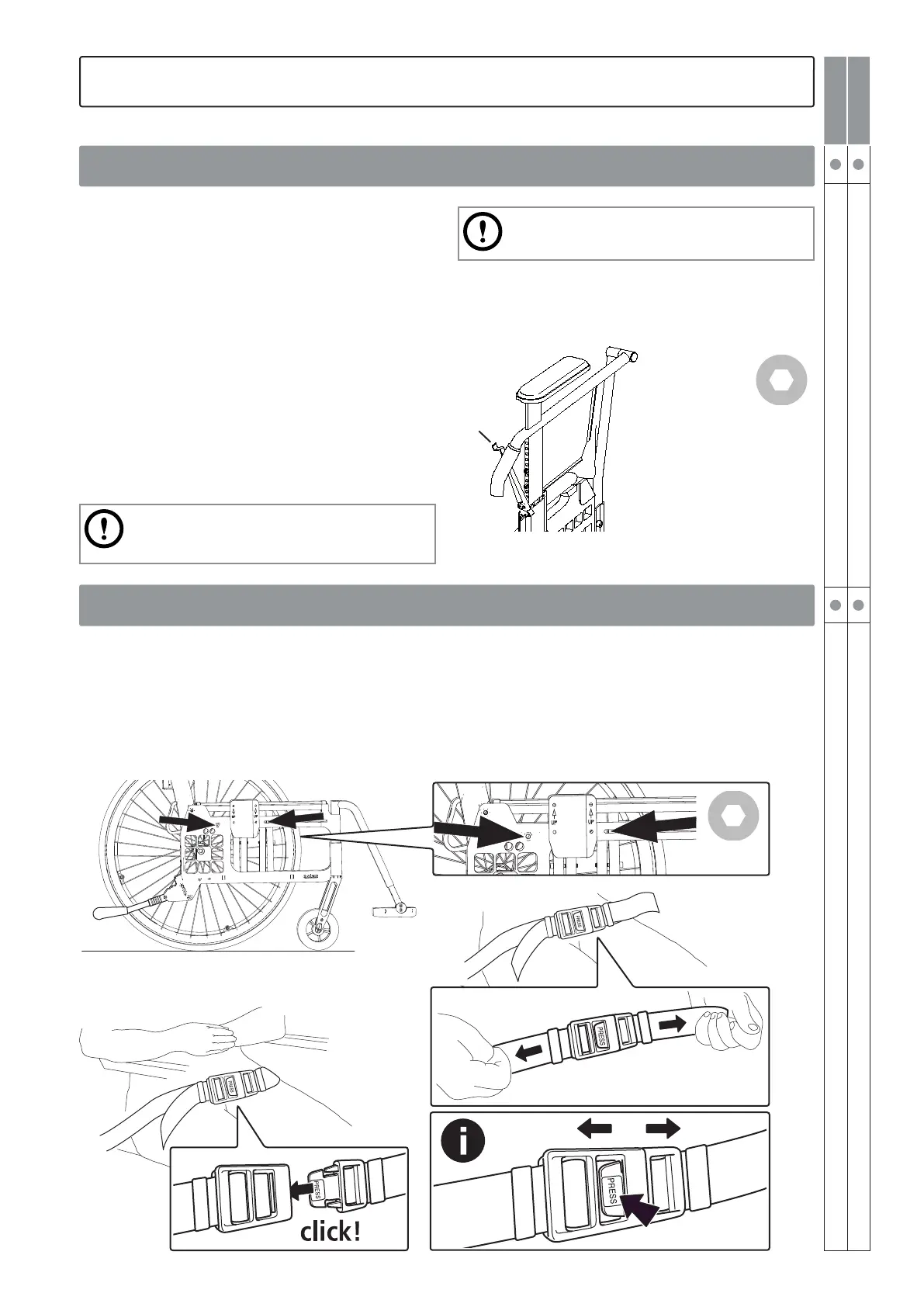

The flip-up arm support comes in two varieties, height
adjustable and fixed. It is mounted onto the wheelchair’s
frame and can be flipped upwards/backwards by pres-
sing the red lever (A) inwards.
Mount the arm support according to the assembly
instructions supplied.
The arm support height is settable between 22 and 30
cm with 1 cm intervals.
- Push the red lever to one side and loosen the screws
that fix the arm support bracket to the frame.
- Slide the arm support up or down to the desired
height.
- Tighten the screws again.
Never use the arm supports to lift the wheelchair.
These arm supports cannot be combined with
cane holder or with 24” 22” or 20” rear wheels in
position C.
For anti-tip limitations, refer to the information in
the Accessory section.
The positioning belt is in two parts, is adjustable in
length and has a snap-lock. It is mounted in the holes
just in front of the back support joint, above the wheel
mounts.
Assembly instructions are supplied with the belt.
The belt is to be used only for positioning in the wheel-
chair. It must not be used as a substitute for a car safety
belt.
10. Accessories - adjusting, handling
Arm support, flip-up, height adjustable
Positioning belt
3 mm
5 mm
