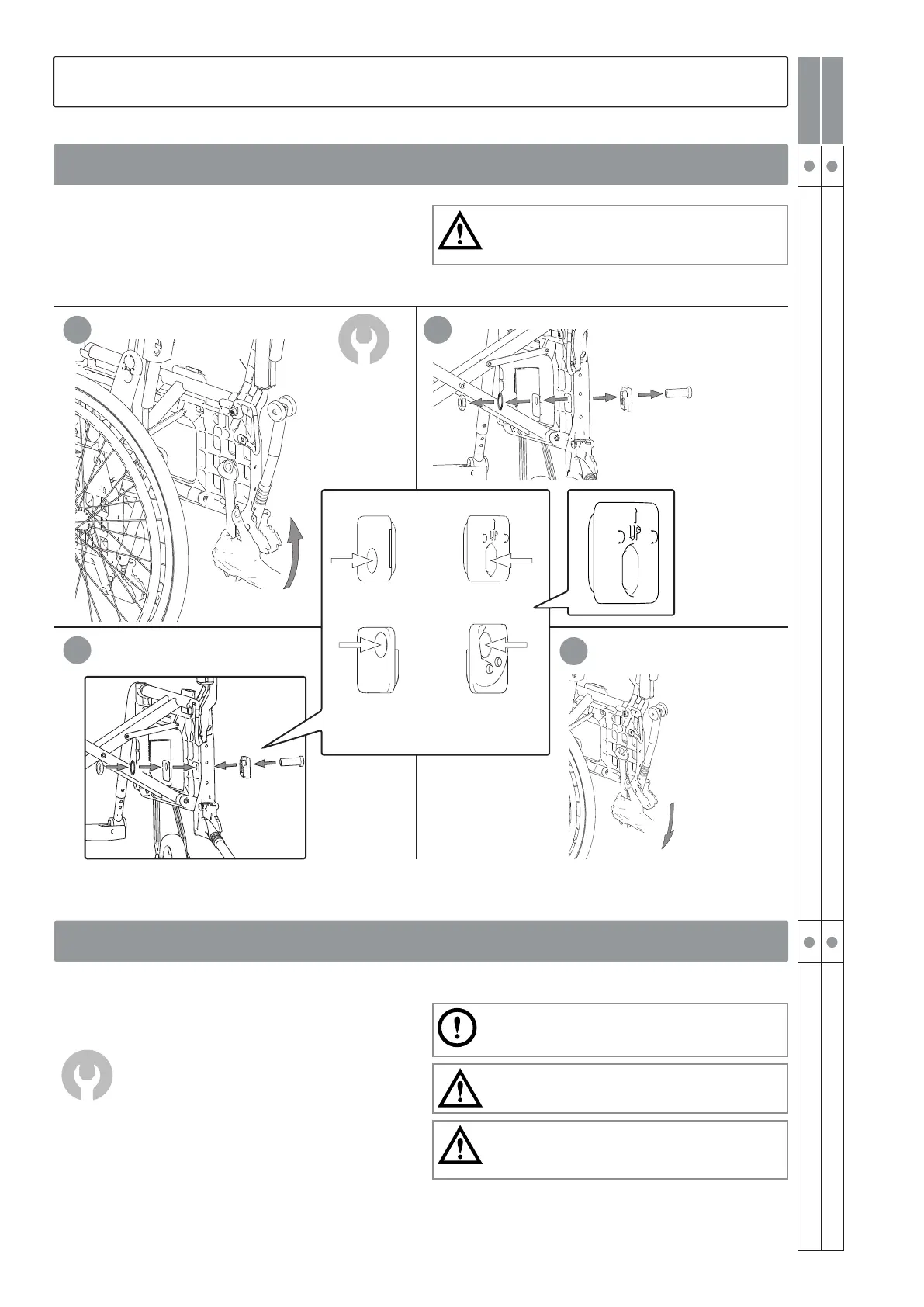

The centre of balance can be adjusted by changing the
position of the rear wheels.
- Move the axle shaft/rear wheels forwards/backwards.
24 mm
When the position of the rear wheels is moved for-
wards the wheelchair becomes more manoeuvrable,
but the tendency to tip backwards increases. See
section ”Adjusting rear seat height by changing rear
wheel position or rear wheel size”.
The brakes must also be adjusted, see section ”Brake,
adjustment”.
The centre of balance is also altered when the seat
and/or back support angle is adjusted.
Tipping risk! Always check the anti-tip function after
adjustments!
When assembling, always make sure that
the quick-release button in the hub springs
out properly. Test by pulling the wheel.
The camber angle can be changed by changing the
washers that are mounted between the hub sleeve
and the nut. See section ”Adjusting rear seat height
by changing rear wheel position or rear wheel size”.
When assembling, always make sure that
the quick-release button in the hub springs
out properly. Test by pulling the wheel.
9. Readjustments
Adjusting the centre of balance
Changing the camber angle
24 mm
2° camber
0° camber
