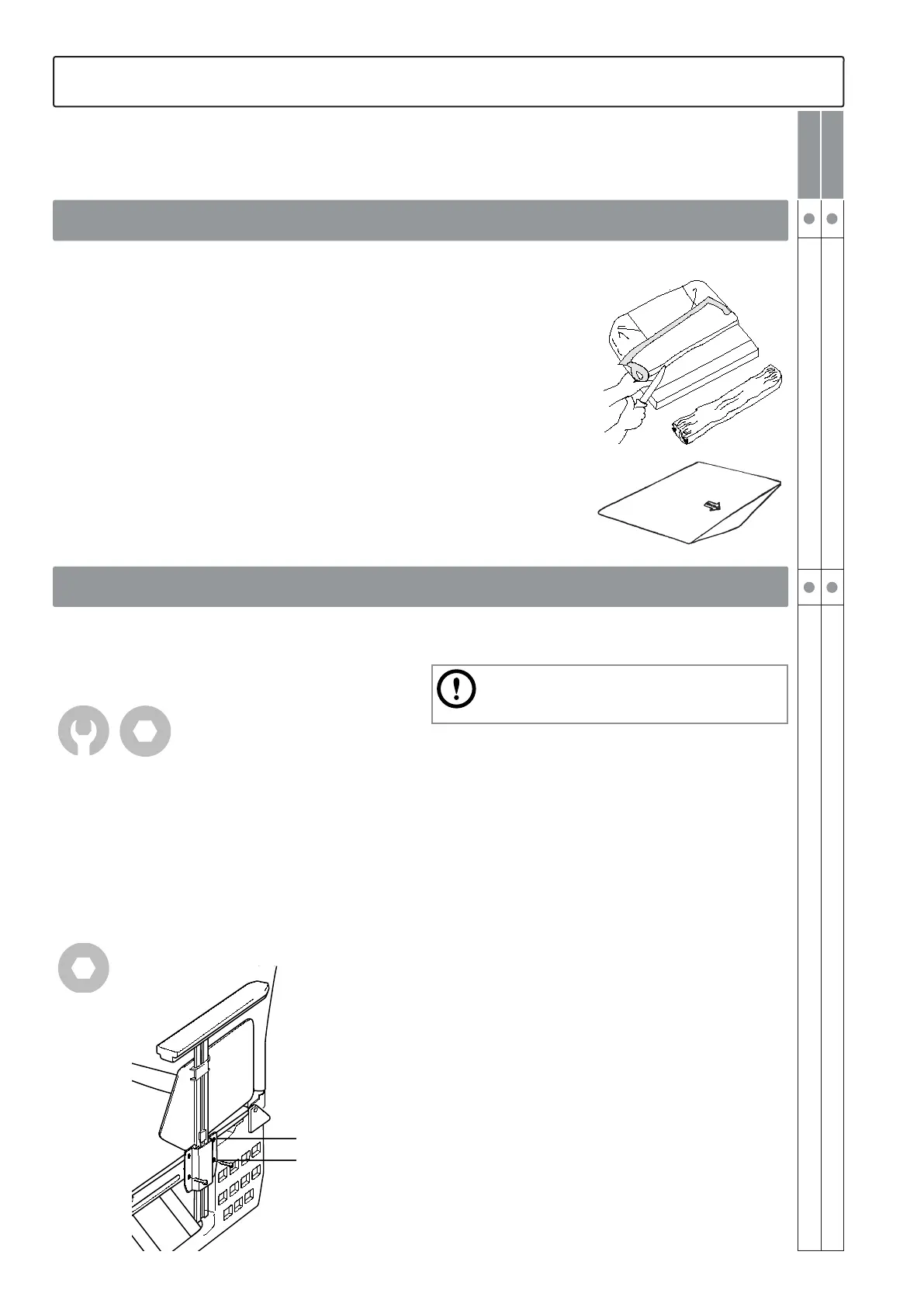

The cushion is cut to the required depth at the
front or back edge. When measuring the length,
ensure that the cushion is properly positioned
between the back tubes with the rounded corners
to the rear.
The cushion is a standard model and is not suita-
ble for users with sitting sores.
A comfort wedge is a useful accessory for the
seat cushion. It evens out the front edge of the
seat, giving even greater seat comfort. Place
the comfort wedge in the cushion-cover’s inside
pocket, under the cushion. The arrow on the com-
fort wedge should be on the top-side pointing
forwards.
The arm support attachment can be fitted in 2 different
heights. In position 1 the height of the arm support is
settable between 18 and 26 cm, and in position 2
(standard) between 24 and 31 cm, with 1 cm intervals.
10 mm 5 mm
The lock lug is used both to set the height of the arm
support and secure the side guard:
- Loosen the screw that fastens the lock lug.
- Slide the guard up or down to the desired height.
- Refasten the lug on the side guard.
If necessary the right arm support can be fitted on the
left side and vice versa.
3 mm
Never use the arm supports to lift the wheelchair.
With 24” low pressure or solid tyres in pos. C1, the
arm support’s sideguard does not cover the front
edge of the rear wheel.
Assembly instructions are always provided with accessories when they are delivered from Etac.Instruc-
tions are also available on our website www.etac.com.
