Etac Cross 5 - Adjusting Seat Depth Using Lumbar Angle; Fitting Seat Extender

34
Etac / Cross 5 / www.etac.com
1
1
2
2
3
Cross 5 Cross 5 XL

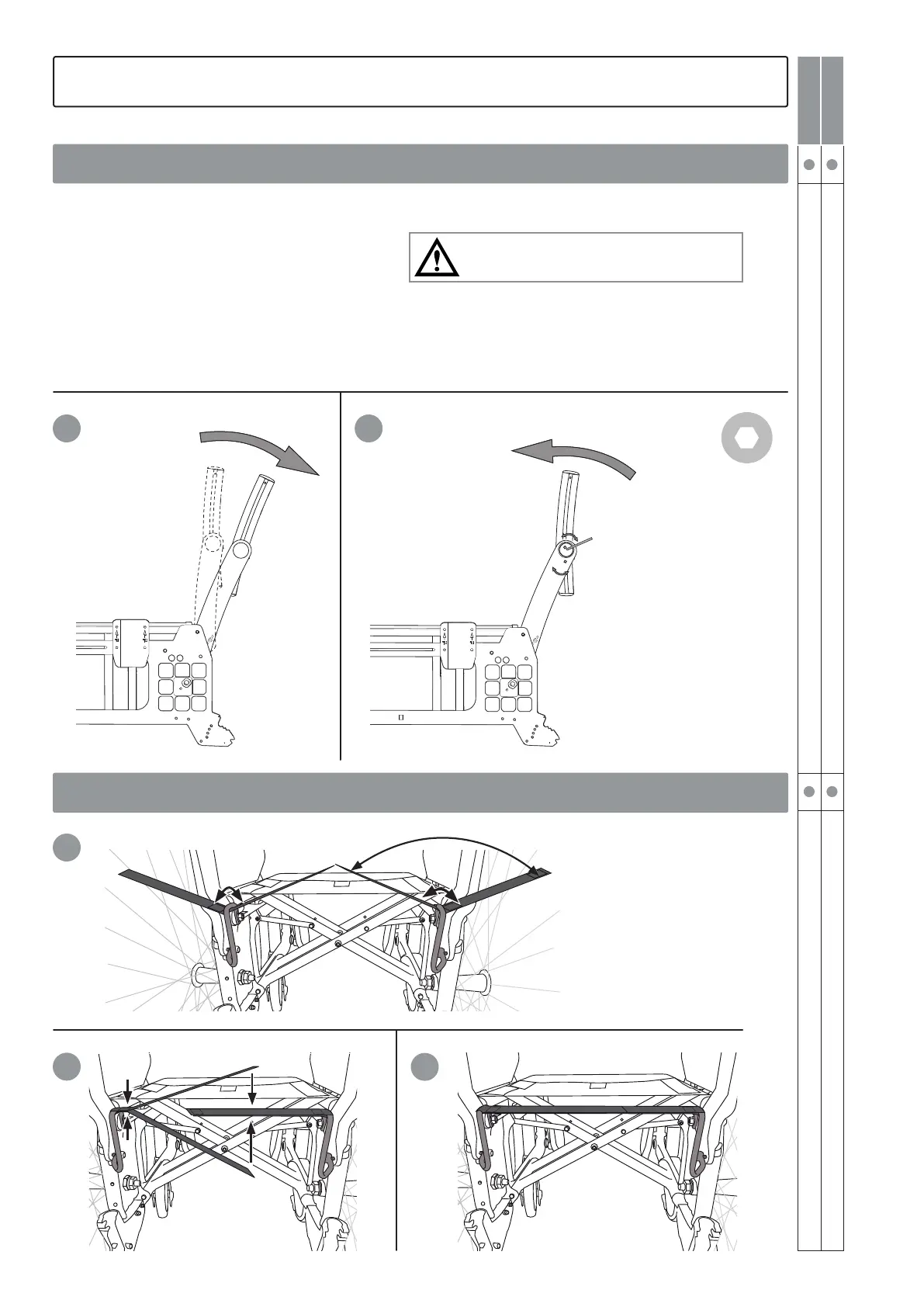

An extended seat depth is achieved by opening
the back support angle (hip) and then the lumbar
angle.
1. Adjust the back support angle (see also illustra-
tion 1-3 on page 32).
2. Adjust the lumbar angle to the required back
support angle using the eccentric shaft as in point
4-5 on page 34.
3. If necessary fit seat extender (accessory)..
Tipping risk! Always check the anti-tip function
after adjustments!
6. Settings back support 3A
Adjusting seat depth using lumbar angle (one eccentric shaft)
Fitting seat extender
5 mm
