Etac Cross 5 - Adjusting Back Support Height and Lumbar Angle

33
Etac / Cross 5 / www.etac.com
3
1 2
5 mm
6 Nm
A
Cross 5 Cross 5 XL

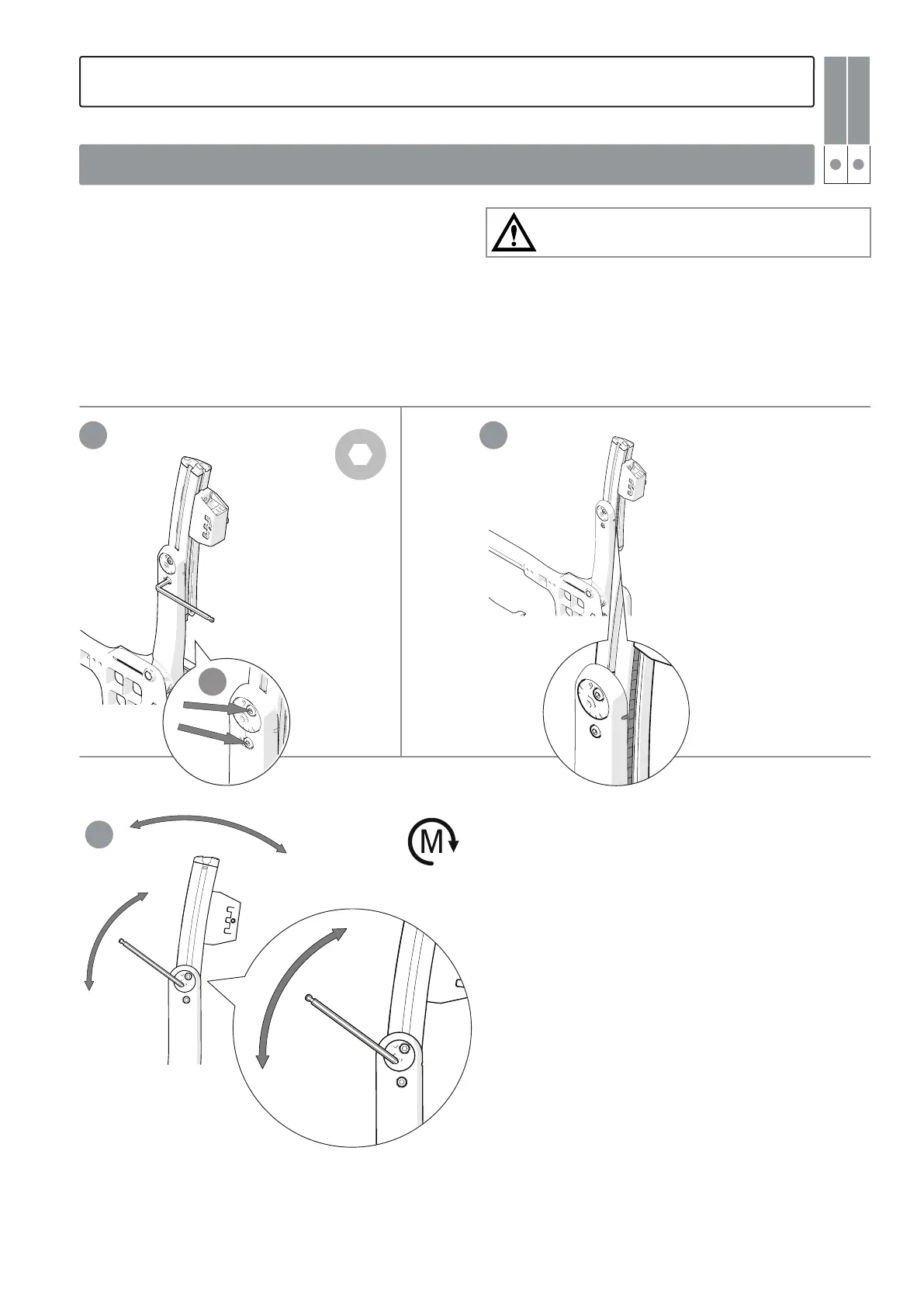

1. Loosen the locking screws (A) max. 1 turn.
2. Adjust the back support height using the graduation
and the marking on the lower back rod. Tighten the
locking screws max. 1/2 turn.
3. Place the Allen key in the eccentric shaft’s locking
screw and loosen it 1/2 turn. Move the Allen key to
the eccentric shaft‘s key handle and set the required
lumbar angle.
4. Tighten the locking screws with 6 Nm.
Tipping risk! Always check the anti-tip function after
adjustments!
6. Settings back support 3A
Adjusting the back support height and lumbar angle (one eccentric shaft)
