ES4455.2 Load Carrier Board - User’s Guide 37
ETAS Connections and Connectors
3 Connections and Connectors
This chapter describes the connections of the ES4455.2 Load Carrier Board and
its variants ES4450.3, ES4451.4, ES4452.1, ES4453.1, ES4457.1 and ES4458.1
that are mounted with load modules.
3.1 Backplane Connector CO200 of the ES4455.2 Load Carrier Board
The ES4455.2 Load Carrier Board and its variants ES4450.3, ES4451.4,
ES4452.1, ES4453.1, ES4457.1 and ES4458.1 mounted with load modules all
have the same backplane connector:
Type: DIN41612_Type_F_MALE

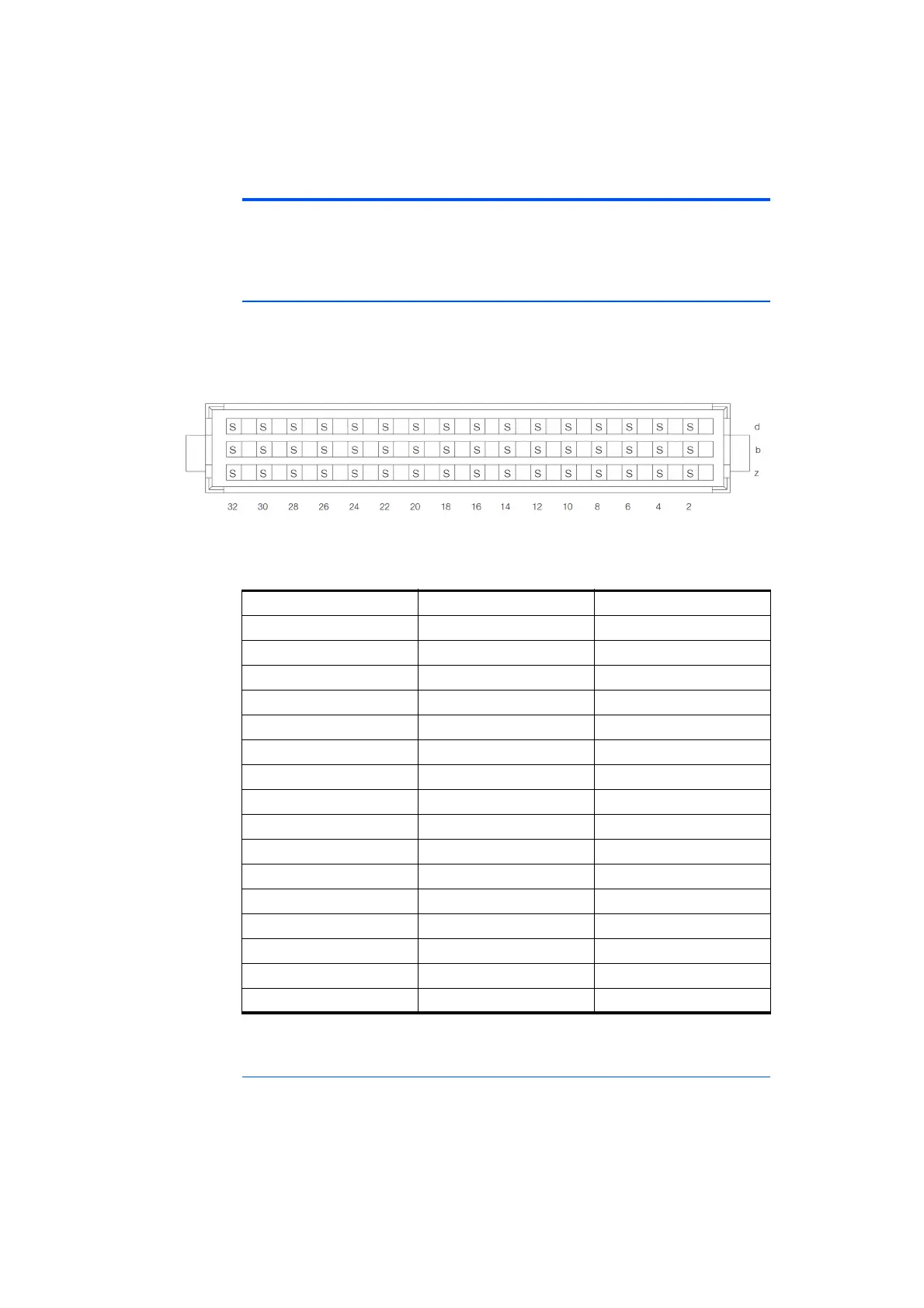

Fig. 3-1 Backplane connector CO200 of the ES4455.2 Load Carrier Board
and its variants ES4450.3, ES4451.4, ES4452.1, ES4453.1, ES4457.1
and ES4458.1 mounted with load modules.
Tab. 3-1 "CO200" pin assignment
Reference Potentials
• I_Dig_Out_x_GND (b16): reference potential for I_Dig_Out_1,....4
• Online_Probe_GND (b14): reference potential for the loads Load 1,..4
Pin Signal Pin Signal Pin Signal
z2 +12VUF b2 GND d2 n.c.
z4 +5VUF b4 not connected d4 +3_3VUF
z6 SPI_GTL_MISO b6 SPI_GTL_MOSI d6 SPI_GTL_CLK_R
z8 nCS0 b8 JTAG_TDI_CON d8 JTAG_TDO_CON
z10 JTAG_TCK_CON_R b10 JTAG_TMS_CON d10 I_Dig_Out_1
z12 I_Dig_Out_2 b12 I_Dig_Out_3 d12 I_Dig_Out_4
z14 Online_Probe b14 Online_Probe_GND d14 n.c.
z16 n.c. b16 I_Dig_Out_x_GND d16 -UBAT_R
z18 Load 1+ b18 Load 1+ d18 Load 1+
z20 Load 1- b20 Load 1- d20 Load 1-
z22 Load 2+ b22 Load 2+ d22 Load 2+
z24 Load 2- b24 Load 2- d24 Load 2-
z26 Load 3+ b26 Load 3+ d26 Load 3+
z28 Load 3- b28 Load 3- d28 Load 3-
z30 Load 4+ b30 Load 4+ d30 Load 4+
z32 Load 4- b32 Load 4- d32 Load 4-
