ES4455.2 Load Carrier Board - User’s Guide38
Connections and Connectors ETAS
3.2 Plug Connector CO1200 on ES4455.2, CO150 and CO100 on the
Load Modules
The ES4455.2 Load Carrier Board is connected with the load modules of
ES4452.1, ES4453.1, ES4457.1 and ES4458.1 via connector CO1200 and a rib-
bon cable. The connectors on the load modules ES4452.1, ES4453.1, ES4457.1
and ES4458.1 feature the same type (ES4452.1: CO150, ES4457.1: CO100)
Type: SMC-Q 68 M (order no. 244839)

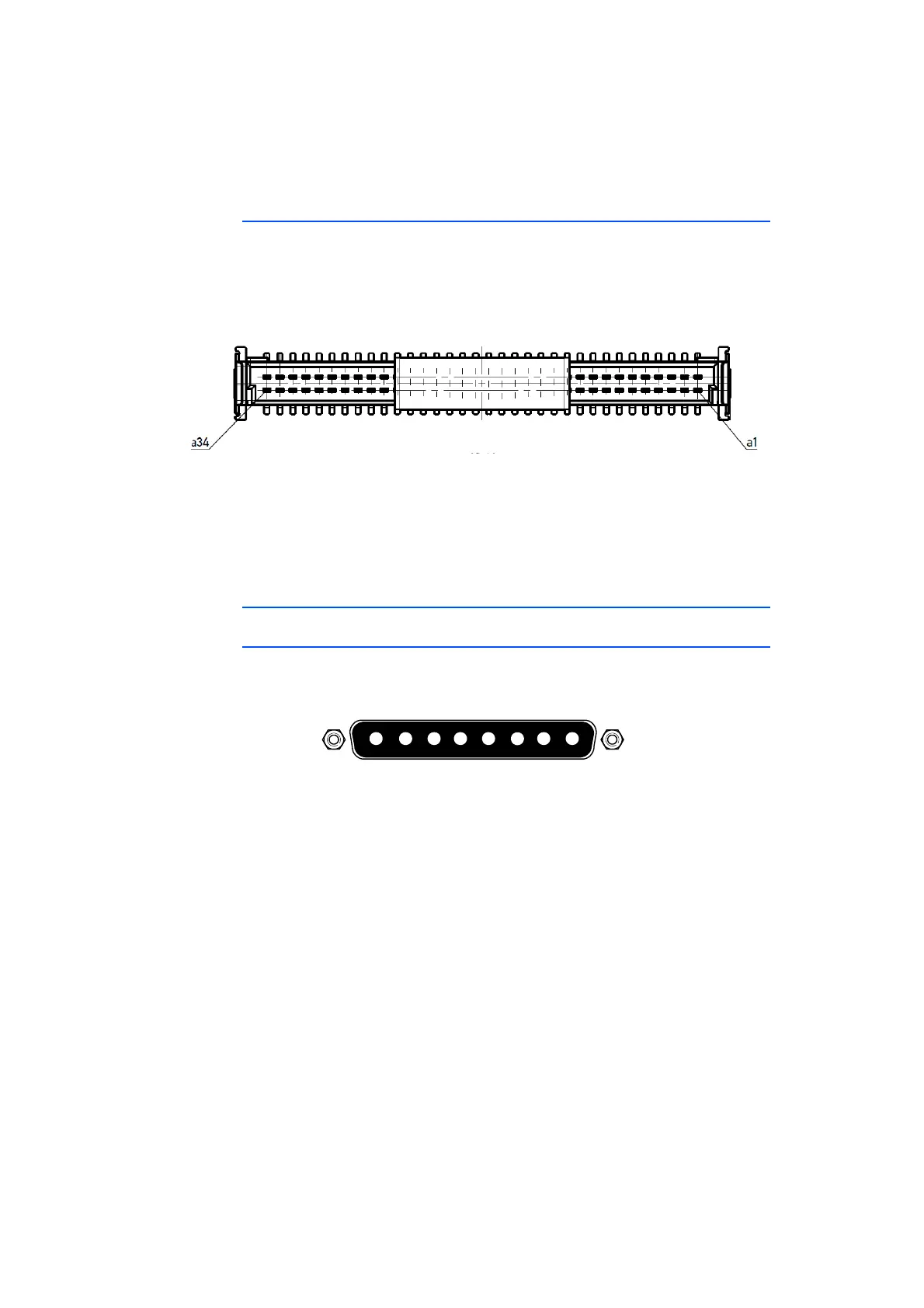

Fig. 3-2 Plug connector CO1200 on the ES4455.2 Load Carrier Board,
CO150 on the load module of ES4452.1, ES4453.1, ES4458.1 and
CO100 on the load module of ES4457.1
3.3 Connections and Plug Connections for Installation in the ES4408.1
Load Chassis
3.3.1 Plug Connectors "Load 7", " Load 8-1" and "Load 8-2"
The plug connectors "Load 7", "Load 8-1" and "Load 8-2" on the ES4408.1
Load Chassis allow connecting the load modules of the ES4455.2, ES4450.3,
ES4451.4, ES4452.1, ES4453.1. ES4457.1 and the ES4458.1 to an ECU.
Fig. 3-3 Plug connectors "Load 7", " Load 8-1" and "Load 8-2"
Type: Hybrid DSUB 8W8 (male)
Counterplug: Hybrid DSUB 8W8 (female)
The plug connector "Load 7" enables access to the plug-in card in slot 2.
