ETAS ES4455.2 - Load Chassis

ES4455.2 Load Carrier Board - User’s Guide 41
ETAS Connections and Connectors
The pin assignment is as follows:
Tab. 3-4 "Load 8-2" pin assignment
3.3.2 Plug Connector "Meas 7", "Meas 8-1" and "Meas 8-2" on ES4408.1 Load
Chassis
The plug-in cards ES4455.2 Load Carrier Board and its variants ES4450.3,
ES4451.4, ES4452.1, ES4453.1, ES4457.1 and ES4458.1 mounted with load
modules output measuring signals via the plug connectors "Meas 7", "Meas 8-
1" and "Meas 8-2" of the ES4408.1 Load Chassis. These measuring signals are
listed in the columns "Slot: Signal name" of Tab. 3-5, Tab. 3-6 and Tab. 3-7.
Type: DSUB 9-pin (female)
Counterplug: DSUB 9-pin (male)

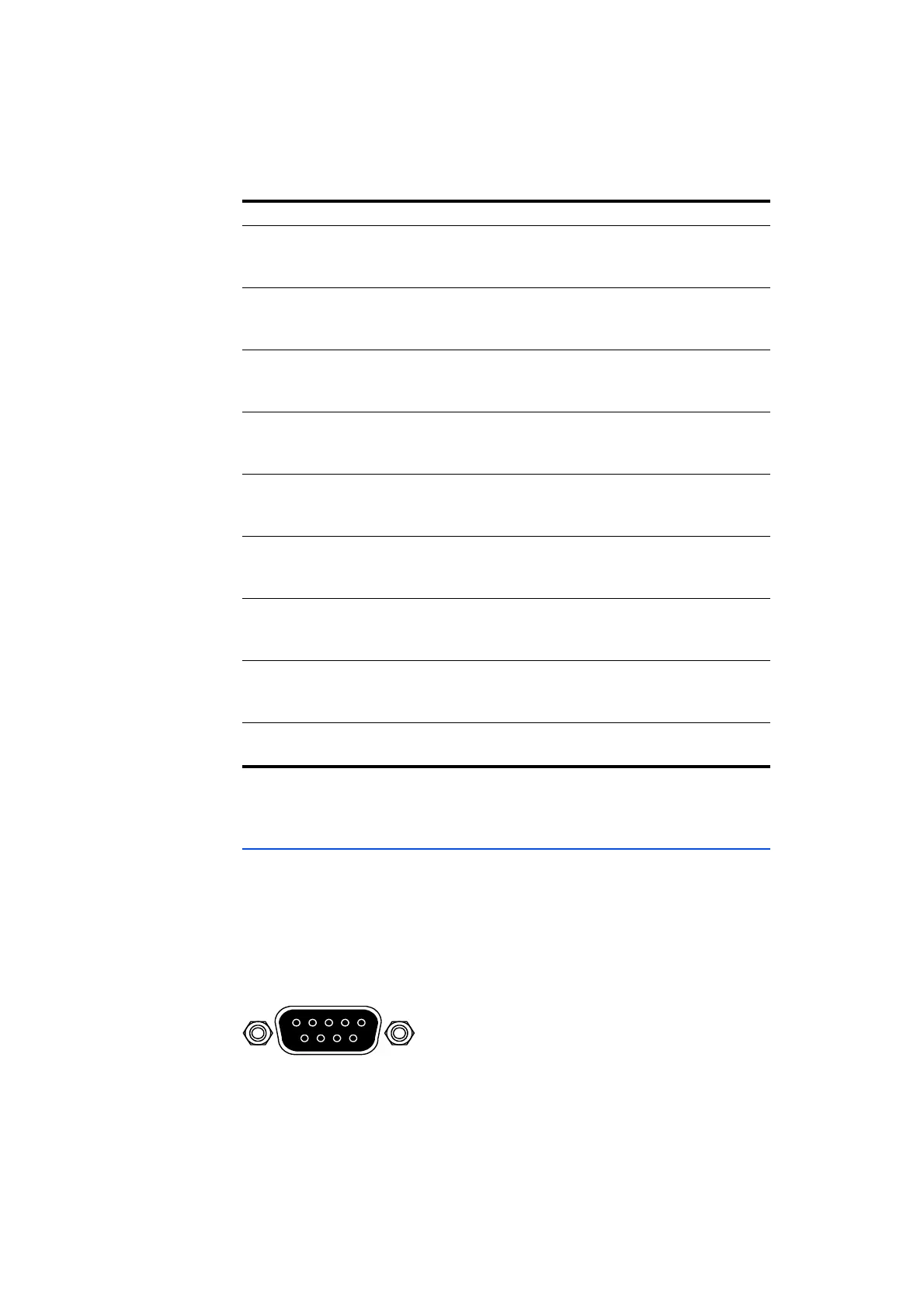

Fig. 3-4 Plug connectors "Meas 7", "Meas 8-1" and "Meas 8-2" on
ES4408.1 Load Chassis
Pin Slot:Signal Backplane connection
A1 Slot 0:Load 1+ Slot 0:z18
Slot 0:b18
Slot 0:d18
A2 Slot 0:Load 1– Slot 0:z20
Slot 0:b20
Slot 0:d20
A3 Slot 0:Load 2+ Slot 0:z22
Slot 0:b22
Slot 0:d22
A4 Slot 0:Load 2– Slot 0:z24
Slot 0:b24
Slot 0:d24
A5 Slot 0:Load 3+ Slot 0:z26
Slot 0:b26
Slot 0:d26
A6 Slot 0:Load 3– Slot 0:z28
Slot 0:b28
Slot 0:d28
A7 Slot 0:Load 4+ Slot 0:z30
Slot 0:b30
Slot 0:d30
A8 Slot 0:Load 4– Slot 0:z32
Slot 0:b32
Slot 0:d32
Housing ES4408 protective
ground
54 321
9876
