ETC Source 4WRD - Shape the Beam

Source 4WRD Installation and User Manual 15

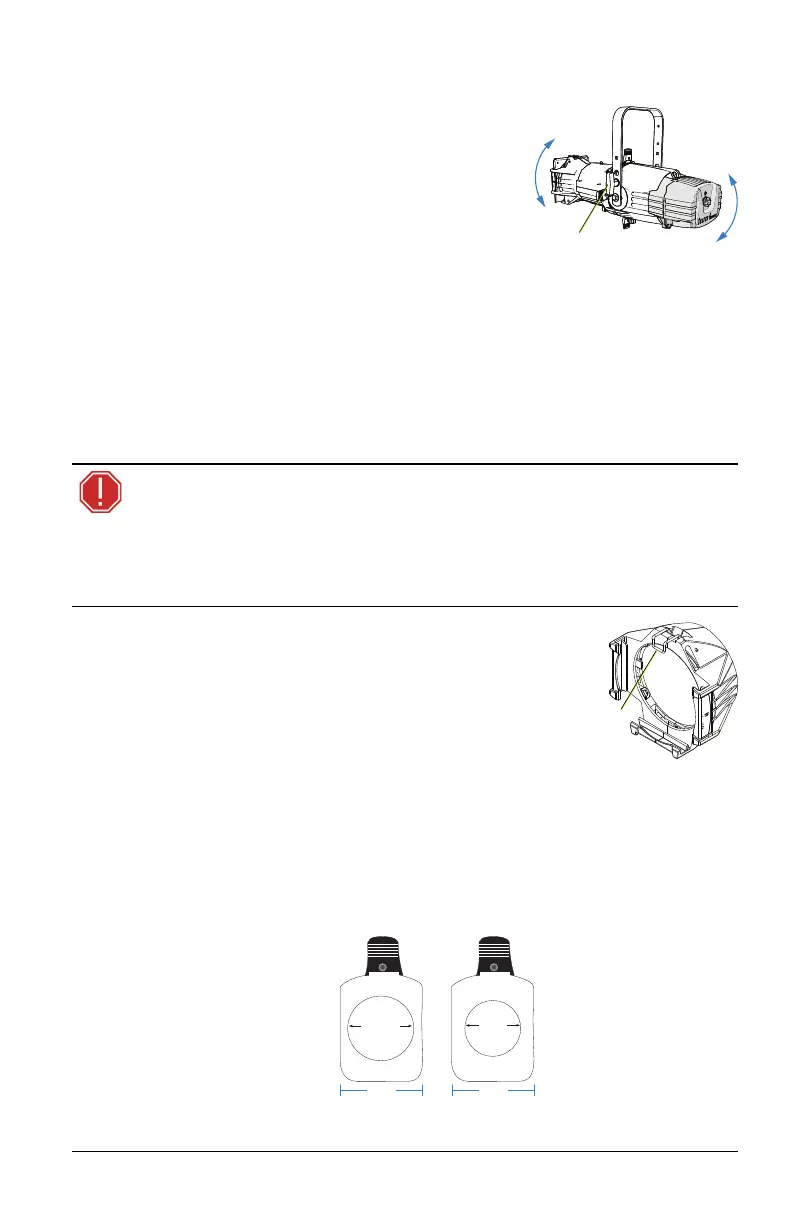

Set the angle within the yoke
Yoke locking
knob
1. Loosen the yoke locking knob. Do not
remove the knob.
2. Tilt the fixture to the desired position.
3. Tighten the yoke locking knob to
secure in position.
Shape the beam
You can shape the beam by using the
shutters, a pattern, an optional drop-in iris, and by rotating the barrel.
Use the color frame
The color frame holder is equipped with a spring-loaded retaining clip
that prevents color frames and accessories from falling out.
WARNING: Make sure all color frame accessories are locked in
position with the retaining clip before hanging the fixture.
AVERTISSEMENT : S’assurer que tous les porte-filtres sont
verrouillés en place à l’aide du verrouillage de la cassette avant de
suspendre le projecteur.
Retaining
clip
1. Release the retaining clip by pushing it
sideways while gently pulling
backwards.
2. Insert the color frame.
3. Lock the retaining clip by pushing
sideways while gently pushing forward.
Use a pattern
The pattern holder slot is on the top side of the barrel and in front of
the shutters. It accommodates A-size, B-size, and glass pattern
holders. Because the Source 4WRD fixture aperture is 3 inches wide,
ETC recommends A-size patterns for maximum effectiveness.
3.12 in
(7.93 cm)
diameter
2.75 in
(7 cm)
diameter
3.7 in
(9.4 cm)
3.7 in
(9.4 cm)
A-size pattern holder:
Holds 3 in (7.6 cm)
diameter patterns
B-size pattern holder:
Holds 2.5 in (6.35 cm)
and 2.75 in (7 cm)
diameter patterns
