Eureka E75/2 - Page 13

14

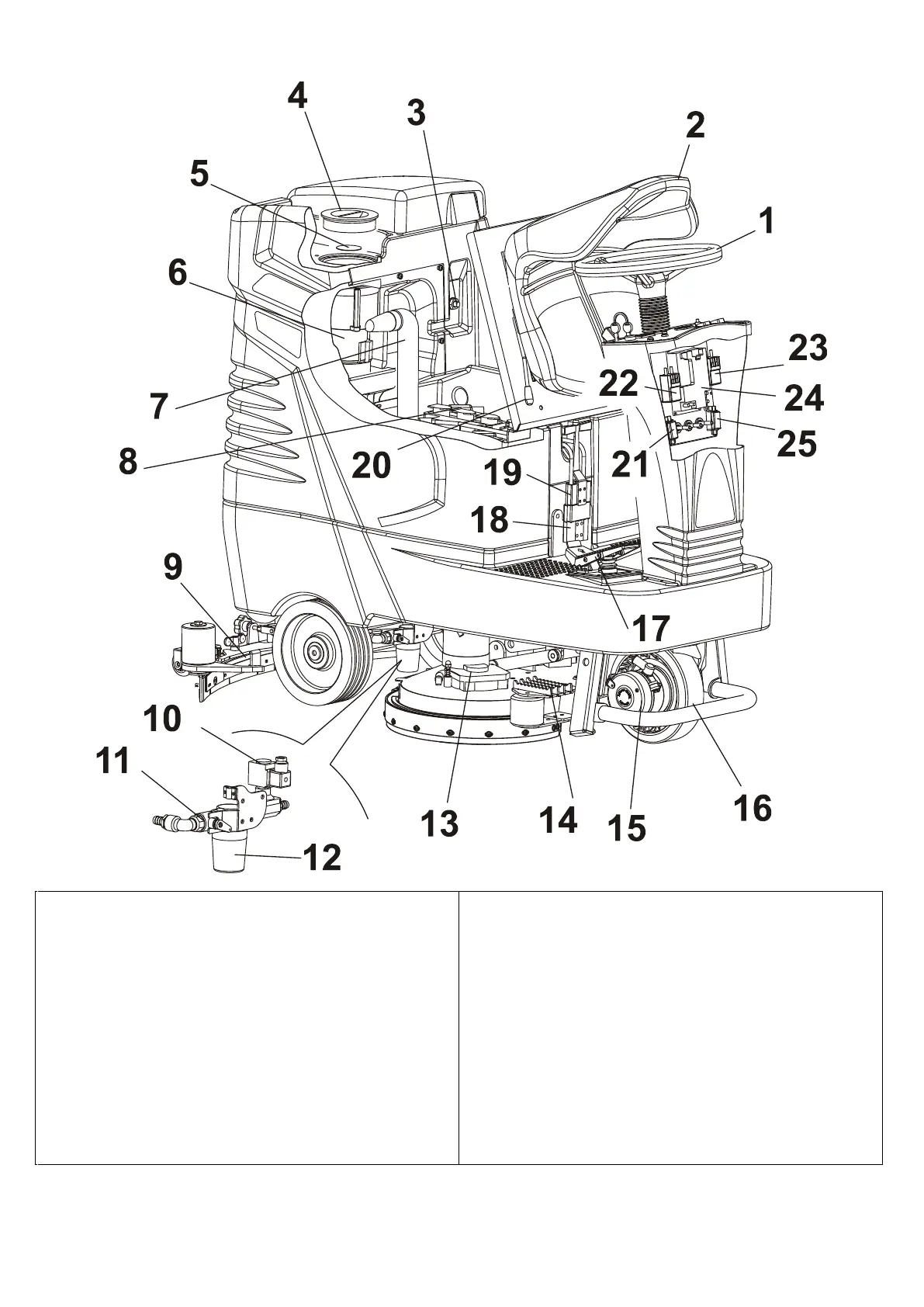

1. Hand-wheel
2. Seat
3. Max. level floating device of the recovery tank
4. Vacuum motor filter inspection cap
5. Vacuum motor filter
6. Vacuum motor
7. Vacuum motor discharge pipe
8. Batteries
9. Squeegee
10. Solenoid valve
11. Solution faucet
12. Solution filter
13. Brush motor
14. Easy lift pedal
15. Drive wheel
16. Front wheel
17. Forward and reverse foot pedal
18. Fixed connector
19. Mobile connector
20. Seat adjusting lever
21. Fuse holder
22. Remote-control switch
23. Remote-control switch
24. Drive control card
25. Fuse holder
