Evco EV3 200 WEB User Manual

1143W24E4.00 · EV3 200 Web 03/2021
| 11 |
WARNING
MALFUNCTIONING OF THE EQUIPMENT
• Performthewiringcarefully,incompliancewithelectromagneticcompatibilityandsafetyrequirements.
• Makesurethewiringiscorrectfortheapplication.
• Use shielded cables for all I/O signal and communication cables.
• Minimise the length of the connections as much as possible and avoid winding the cables around electrically connected
parts.
• Thesignalcables(analogueanddigitalinputs,communicationandcorrespondingpowersupplies),powercablesandpower
supply cables for the device must be routed separately.
• Beforeapplyingthepowersupply,checkallthewiringconnections.
• Usetherequiredsafetyinterlockswherepersonneland/orequipmenthazardsexist.
• Installandoperatethisequipmentinacabinetappropriatelyratedforitsintendedenvironmentandsecuredbyakeyedor
tooledlockingmechanism.
• Power line and output circuits must be wired and fused in compliance with local and national regulatory requirements for
the rated current and voltage of the particular equipment.
• Do not use this equipment in safety-critical machine functions.
• Donotdisassemble,repairormodifythisequipment.
• Do not connect wires to unused terminals and/or to terminals labelled “No connection “(N.C.)”.

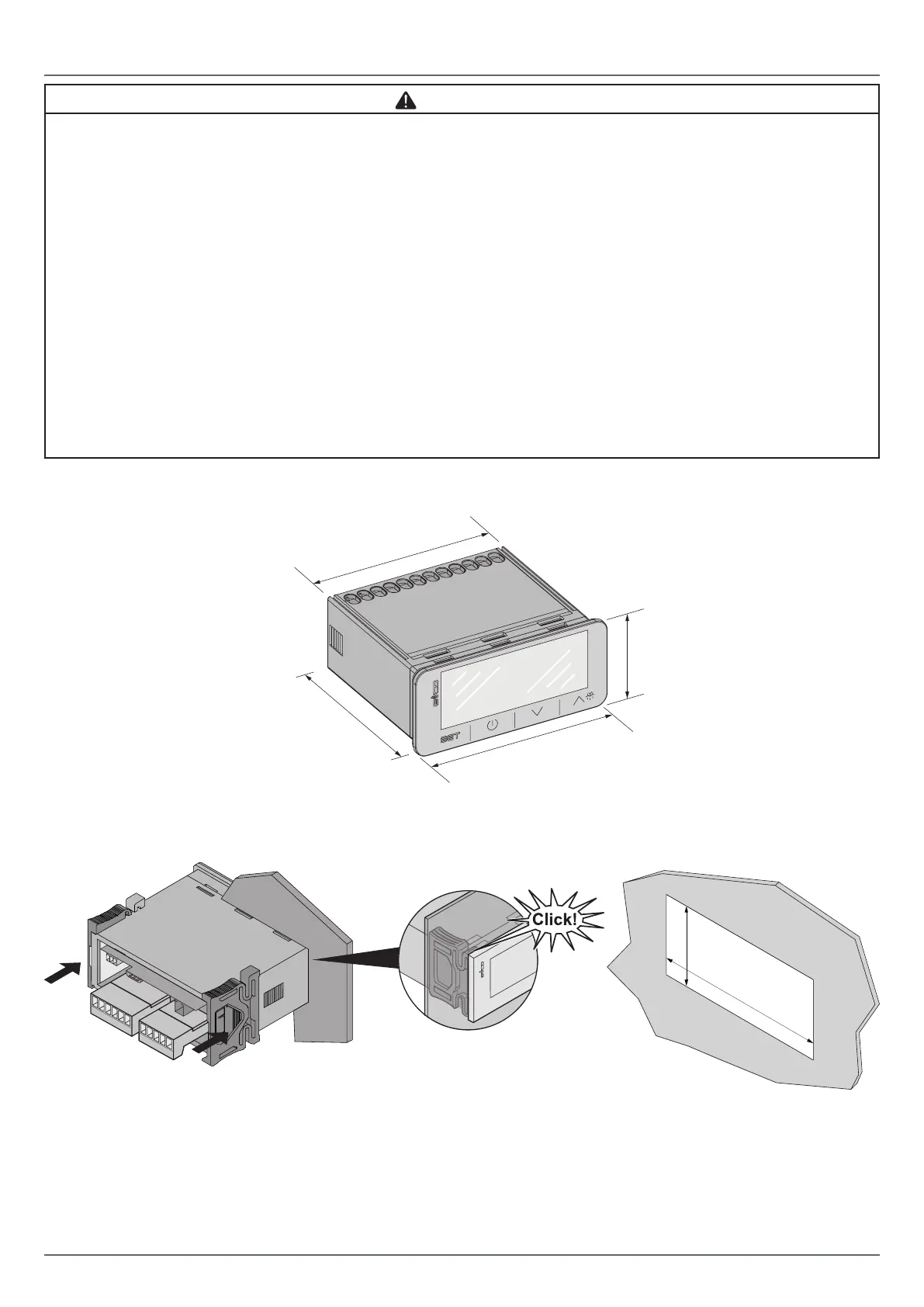

3.3 DIMENSIONS
33 (1.30)
75 (2.95)
69 (2.71)
59 (2.32)
mm (in.)
Fig. 1. Dimensions EV3 200 Web
3.4 INSTALLATION
71
(
2.7
9)
29 (1.14)
mm (in.)
Fig. 2. Installation EV3 200 WEB

Evco EV3 200 WEB Specifications

General

Brand	Evco
Model	EV3 200 WEB
Category	Controller
Language	English
