1143W24E4.00
·
EV3 200 Web
03/2021
| 30 |
7.4
DOUBLE COMPRESSOR
If output
out4
is configured
u1
=8,thecontrollermanages2compressors.
Activating compressor 2
Compressor 2 is activated after a delay
C11
from compressor 1 switch-on.
Ifactive,compressor2usesthe:
•
Setpoints;
•
Differentials;
•
Delays and
•
Protections
set for compressor 1.

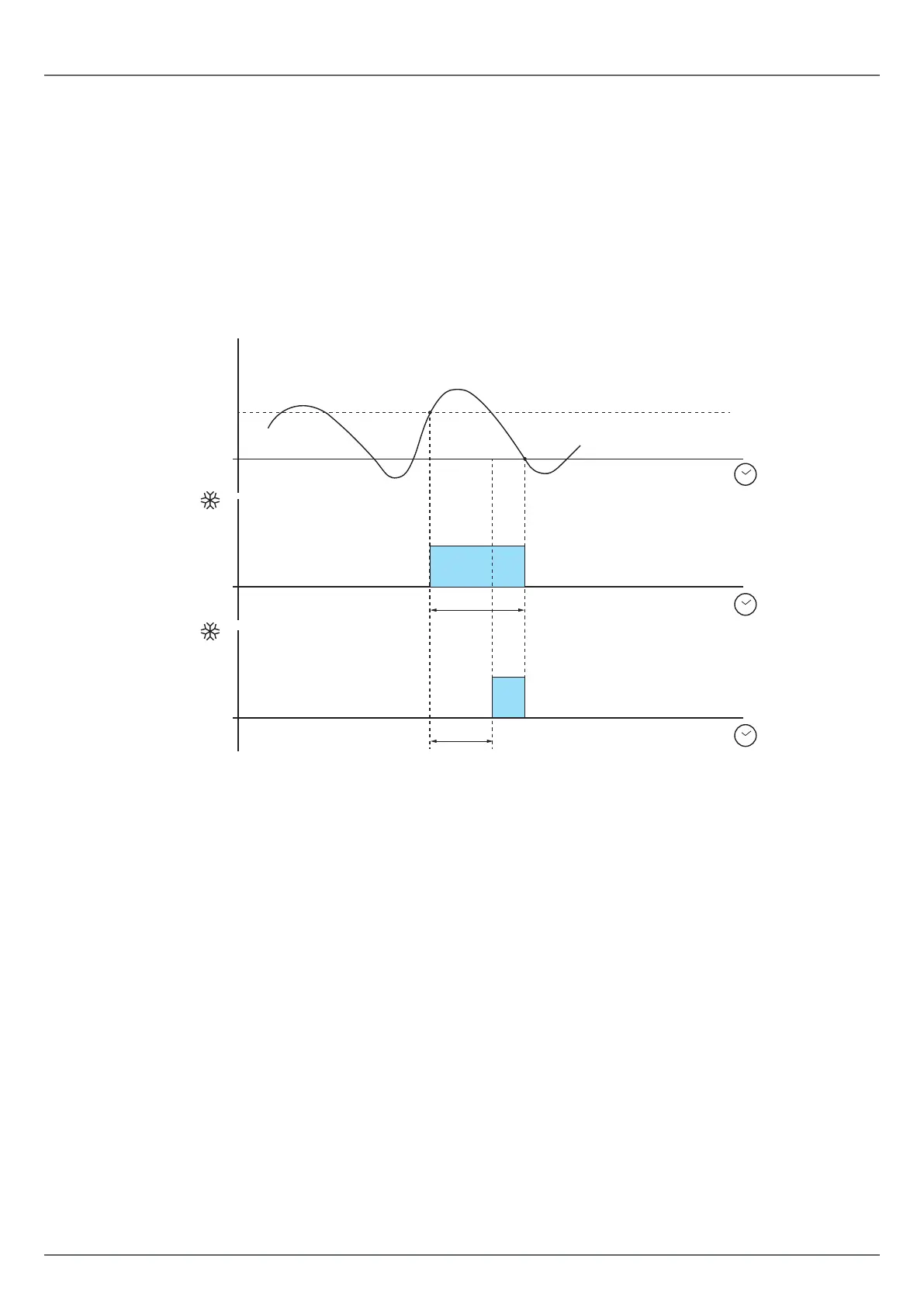

7.4.1
Operating Diagram
Pb1
ON
1
OFF
Setpoint
Setpoint + r0
C3
ON
2
OFF
C11
Fig. 31.
Normal compressor 2 operation
29
31
