8. REMOTE COMMUNICATION CONFIGURATION
8.1 INTRODUCTION
EV3 200 Web can be configured to connect with EPoCA in two different ways:
• FromaPC (Windows only) through EPoCA.exe (online/ofine) which can be downloaded from the website:
https://www.evco.it/assets/doc/EVCO-EV3200Web_congurator_for_EPoCA.zip
• Fromasmartphone/tablet using the EVLink Wi-Fi app.
Inbothcases,thedevicesmustbevisibleonthelocalnetwork.IfthelocalnetworkrequiresastaticIPaddress,configureusing
the micro-B USB cable.
Ifusedinasubnetwork,configuretheBLEparameterforeverydevicefrom1to10beforesearchingonthenetwork.

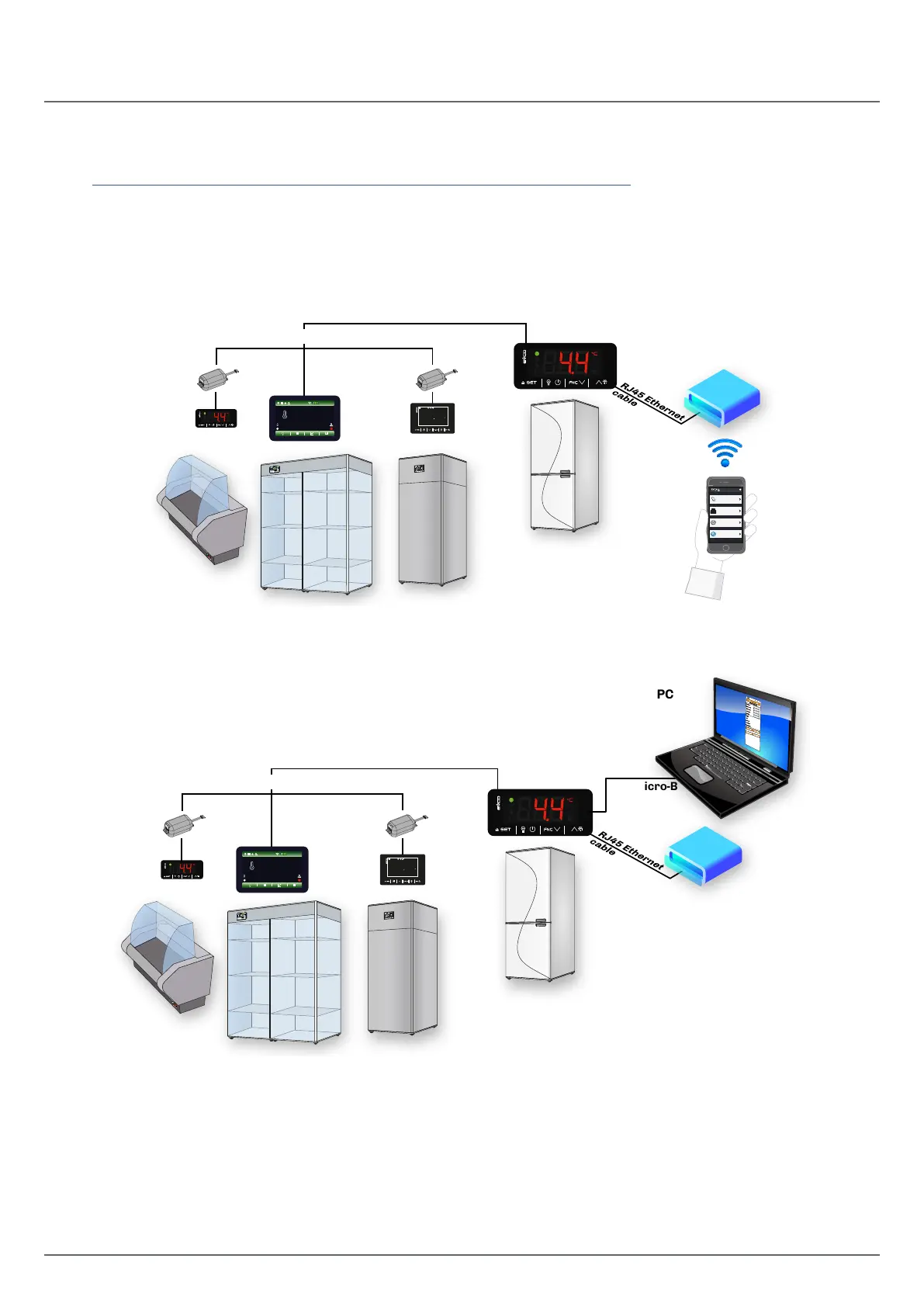

8.1.1 Configuration diagram when using a smartphone and the EVLink Wi-Fi app.
RS-485 subnet
EV3
TTL/RS-485
RS-485
VColor 279
EVJ
EV3 200 Web
TTL/RS-485
11:01 76%
?
?
Configure EVLink
Plant List
Settings
EPoCA
03/07/18 09:22
PRODUCT TEMPERATURE: -35.3°C LOG OUT
WORKING SETPOINT: -38.0°C LOGIN: ADMIN
CABINET
TEMPERATURE
STATUS OK
-35.8
°C
-17. 5
60
%
Over Temp
Program 01
Stop
°c
Fig. 34. Conguration diagram when using a smartphone
8.1.2 Configuration diagram when using a PC with direct connection via USB
EV3 200 Web
USB micro-B
PC
RS-485 subnet
EV3
TTL/RS-485
RS-485
VColor 279
EVJ
TTL/RS-485
03/07/18 09:22
PRODUCT TEMPERATURE: -35.3°C LOG OUT
WORKING SETPOINT: -38.0°C LOGIN: ADMIN
CABINET
TEMPERATURE
STATUS OK
-35.8
°C
-17. 5
60
%
Over Temp
Program 01
Stop
°c
Fig. 35. Conguration diagram when using a PC - USB
