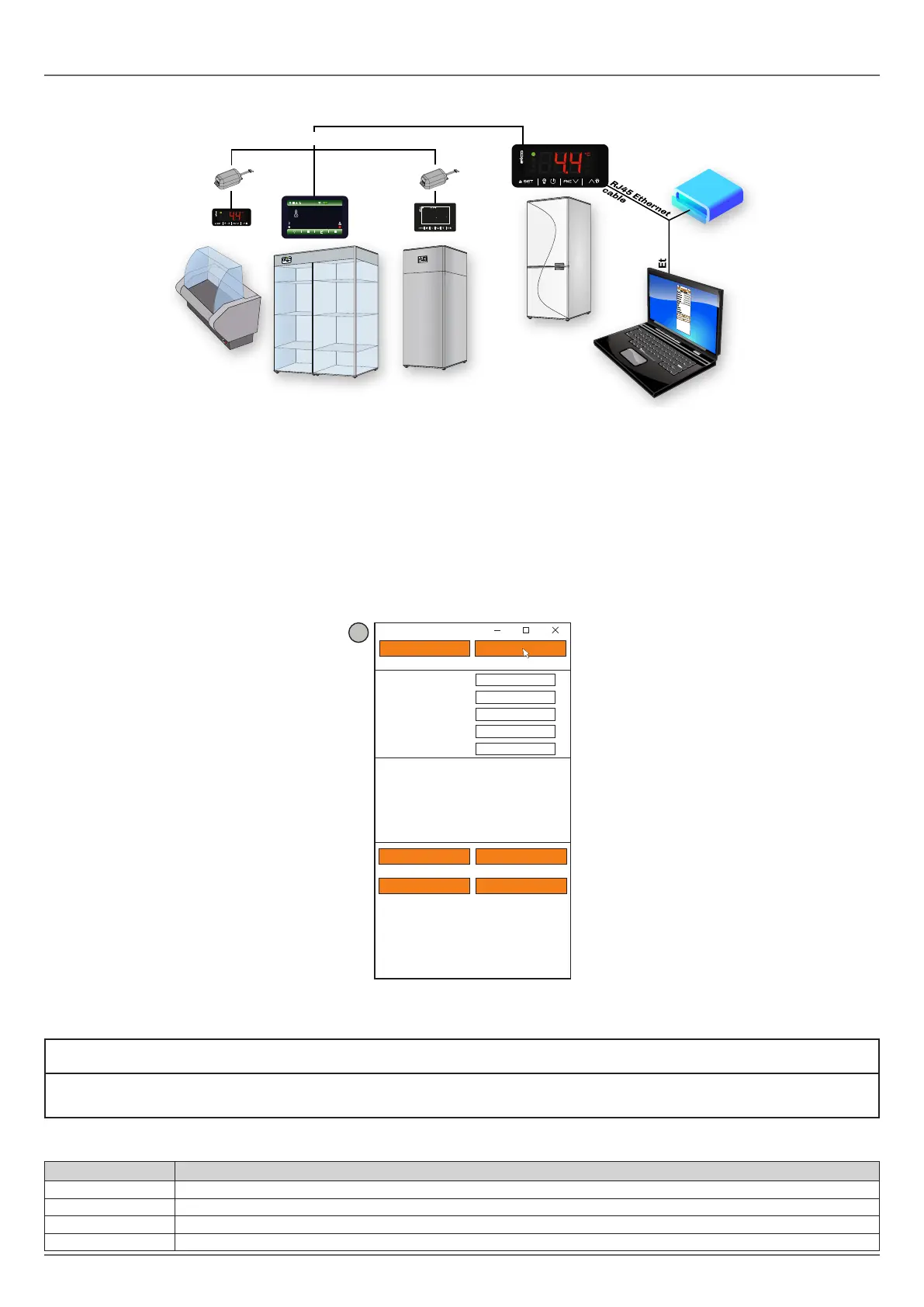

8.1.3 Configuration diagram when using a PC with connection via Ethernet
EV3 200 Web
Ethernet
RS-485 subnet
EV3
TTL/RS-485
RS-485
VColor 279
EVJ
TTL/RS-485
03/07/18 09:22
PRODUCT TEMPERATURE: -35.3°C LOG OUT
WORKING SETPOINT: -38.0°C LOGIN: ADMIN
CABINET
TEMPERATURE
STATUS OK
-35.8
°C
-17.5
60
%
Over Temp
Program 01
Stop
°c
Fig. 36. Conguration diagram when using a PC - Ethernet
8.2 FIRST CONFIGURATION
8.2.1 Configuration using a PC
Connecting using a micro-B USB cable
1. Connect the micro-B USB cable from the PC to the device;
2. MakesureEPoCA.exe has been installed in the PC;
3. Boot up EPoCA.exe;
4. SetthePlantandDevicedata,savethecongurationbypressingSave Cong. and continue by pressing Next;
3
Next
Prev
1. Plant Configuration
EPOCA
Plant Name:
Plant Password:
Plant Category:
Device Name:
Serial Code:
Plant ID:
Build:
Last Reset:
Mac address:
Internet Status:
Save Config.
Export plant fileUpload plant file
Erase Config.
Fig. 37. Selecting the device and conguring the Plant and Device
N.B.: Save to continue with configuration.
NOTICE
WRONG OR FORGOTTEN ACCESS CREDENTIALS
Keep your access credentials in a safe place.
Contact your sales channel if your access credentials are wrong or have been lost.
Other commands:
Command Description
Erase Config. Cancels current configuration
Save Config. Saves current configuration
Upload Plantfile Uploads a previously saved plant file
Export Plantfile Saves the plant file in a folder chosen by the user
