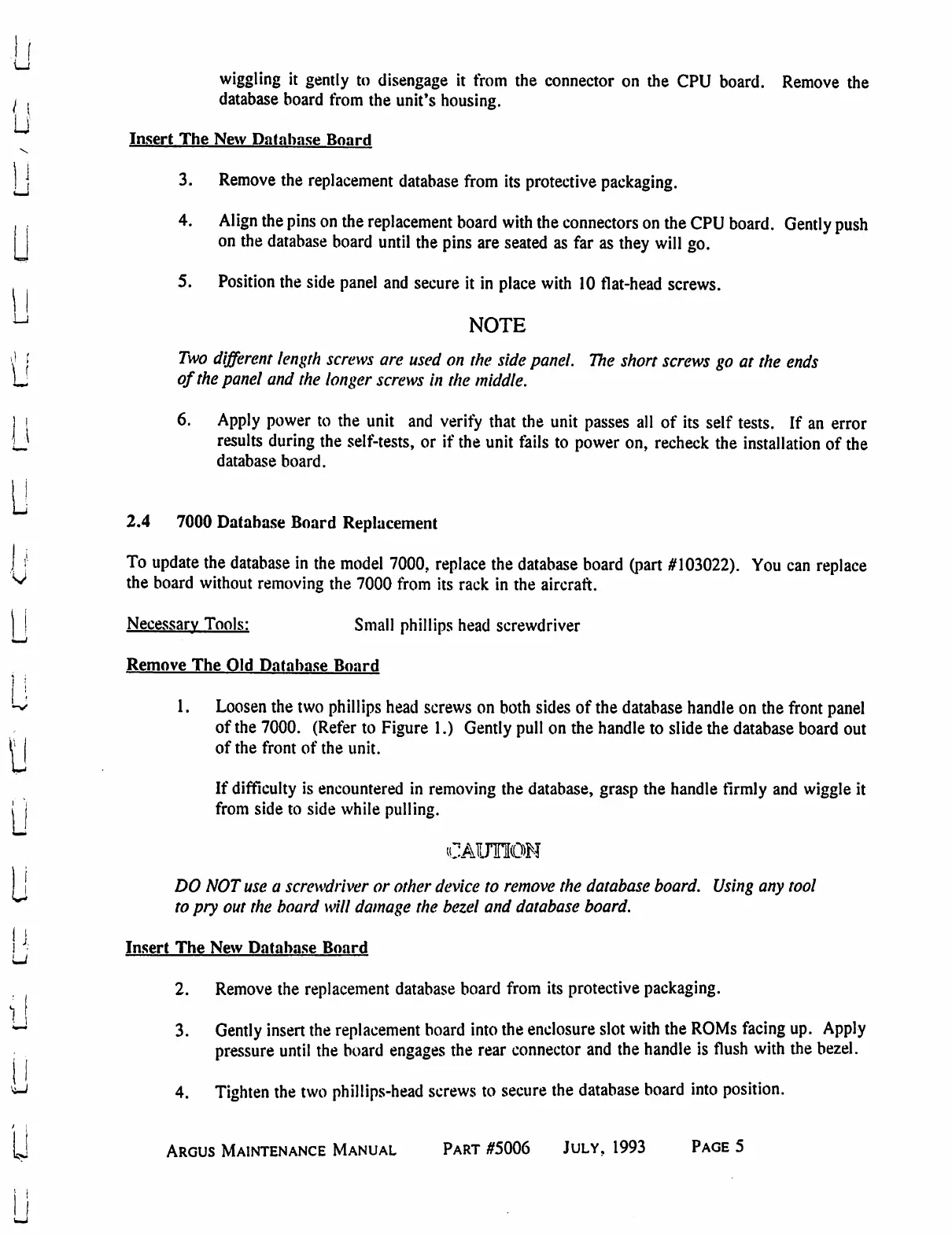

wiggling
it
gently
to
disengage
it
from
the
connector
on
the
CPU
board.
Remove
the
i
,
database
board
from
the
unit's
housing.
u
Insert
The
New
Database
Board
!
,
3.
Remove
the
replacement
database
from
its
protective
packaging.
U4.
Align
the
pins
on
the
replacement
board
with
the
connectors
on
the
CPU
board.
Gently
push
on
the
database
board
until
the
pins
are
seated
as
far
as
they
will
go.
5.
Position
the
side
panel
and
secure
it
in
place
with
10
flat-head
screws.
u
NOTE
v1
j
Two
different
length
screws
are
used
on
the
side
panel.
The
short
screws
go
at the
ends
L
of
the
panel
and
the
longer
screws
in
the
middle.
j
i
6.
Apply
power
to
the
unit
and
verify
that
the
unit
passes
all
of
its
self
tests.
If
an
error
'U
results
during
the
self-tests,
or
if
the
unit
tails
to
power
on,
recheck
the
installation
of
the
database
board.
u
2.4
7000
Database
Board
Replacement
j
j
To
update
the
database
in
the
model
7000,
replace
the
database
board
(part
#103022).
You
can
replace
^
the
board
without
removing
the
7000
from
its
rack
in
the
aircraft.
Necessary
Tools:
Small
phillips
head
screwdriver
Remove
The
Old
Database
Board
-v
1.
Loosen
the
two
phillips
head
screws
on
both
sides
of
the
database
handle
on
the
front
panel
of
the
7000.
(Refer
to
Figure
1.)
Gently
pull
on
the
handle
to
slide
the
database
board
out
Uof
the
front
of
the
unit.
If
difficulty
is
encountered
in
removing
the
database,
grasp
the
handle
firmly
and
wiggle
it
j
j
from
side
to
side
while
pulling.
CAUTION
ji
DO
NOT
use
a
screwdriver
or
other
device
to
remove
the
database
board.
Using
any
tool
to
pry
out
the
board
will
damage
the
bezel
and
database
board.
!
Insert
The
New
Database
Board
2.
Remove
the
replacement
database
board
from
its
protective
packaging.
j
*~
3.
Gently
insen
the
replacement
board
into
the
enclosure
slot
with
the
ROMs
facing up.
Apply
pressure
until
the
board
engages
the
rear
connector
and
the
handle
is
flush
with
the
bezel.
^
4.
Tighten
the
two
phillips-head
screws
to
secure
the
database
board
into
position.
'
i
U
Argus
Maintenance
Manual
Part
#5006
July,
1993
Page
5
