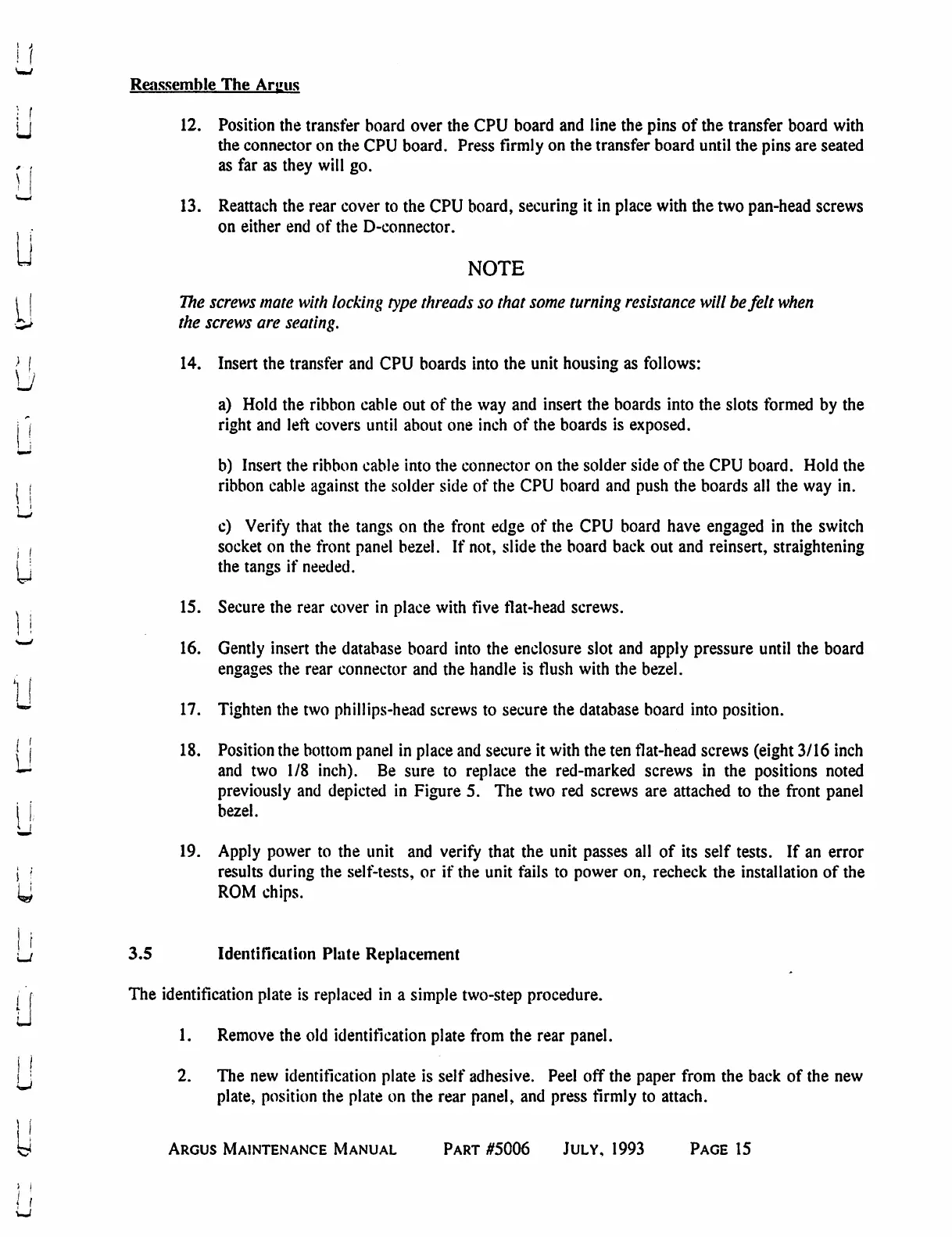

Reassemble The Aruus
jj 12. Position the transfer board over the CPU board and line the pins of the transfer board with
the connector on the CPU board. Press firmly on the transfer board until the pins are seated
as far as they will go.
'""' 13. Reattach the rear cover to the CPU board, securing it in place with the two pan-head screws
Uon either end of the D-connector.
NOTE
I I The screws mate with locking type threads so that some turning resistance will be felt when
Ci the screws are seating.
<> ( 14. Insert the transfer and CPU boards into the unit housing as follows:
<j
a) Hold the ribbon cable out of the way and insert the boards into the slots formed by the
'j right and left covers until about one inch of the boards is exposed.
J
b) Insert the ribbon cable into the connector on the solder side of the CPU board. Hold the
I ( ribbon cable against the solder side of the CPU board and push the boards all the way in.
lJ
c) Verify that the tangs on the front edge of the CPU board have engaged in the switch
I | socket on the front panel bezel. If not, slide the board back out and reinsert, straightening
(j the tangs if needed.
. 15. Secure the rear cover in place with five flat-head screws.
w 16. Gently insert the database board into the enclosure slot and apply pressure until the board
engages the rear connector and the handle is flush with the bezel.
il
w 17. Tighten the two phillips-head screws to secure the database board into position.
■j | 18. Position the bottom panel in place and secure it with the ten flat-head screws (eight 3/16 inch
1— and two 1/8 inch). Be sure to replace the red-marked screws in the positions noted
previously and depicted in Figure 5. The two red screws are attached to the front panel
t j bezel.
W
19. Apply power to the unit and verily that the unit passes all of its self tests. If an error
j ; results during the self-tests, or if the unit fails to power on, recheck the installation of the
(J ROM chips.
j_j 3.5 Identification Plate Replacement
The identification plate is replaced in a simple two-step procedure.
1. Remove the old identification plate from the rear panel.
o
y
2. The new identification plate is self adhesive. Peel off the paper from the back of the new
plate, position the plate on the rear panel, and press firmly to attach.
Argus Maintenance Manual Part #5006 July, 1993 Page 15
