RED SCREWS
<AS VIEWED FROM BOTTOM)
©
©
RED SCREW
\

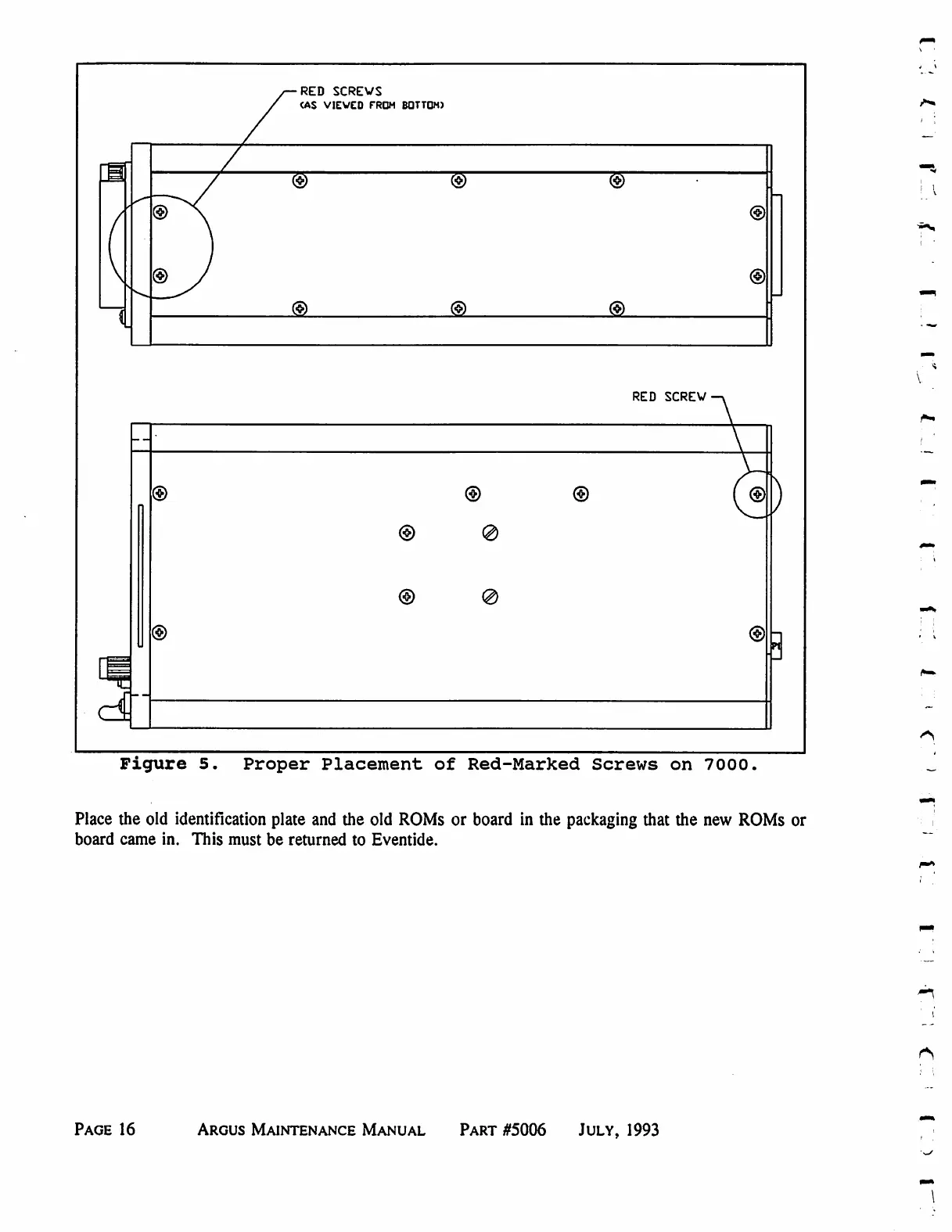

Figure 5. Proper Placement of Red-Marked Screws on 7000.
Place the old identification plate and the old ROMs or board in the packaging that the new ROMs or
board came in. This must be returned to Eventide.
Page 16
Argus Maintenance Manual Part #5006 July, 1993
