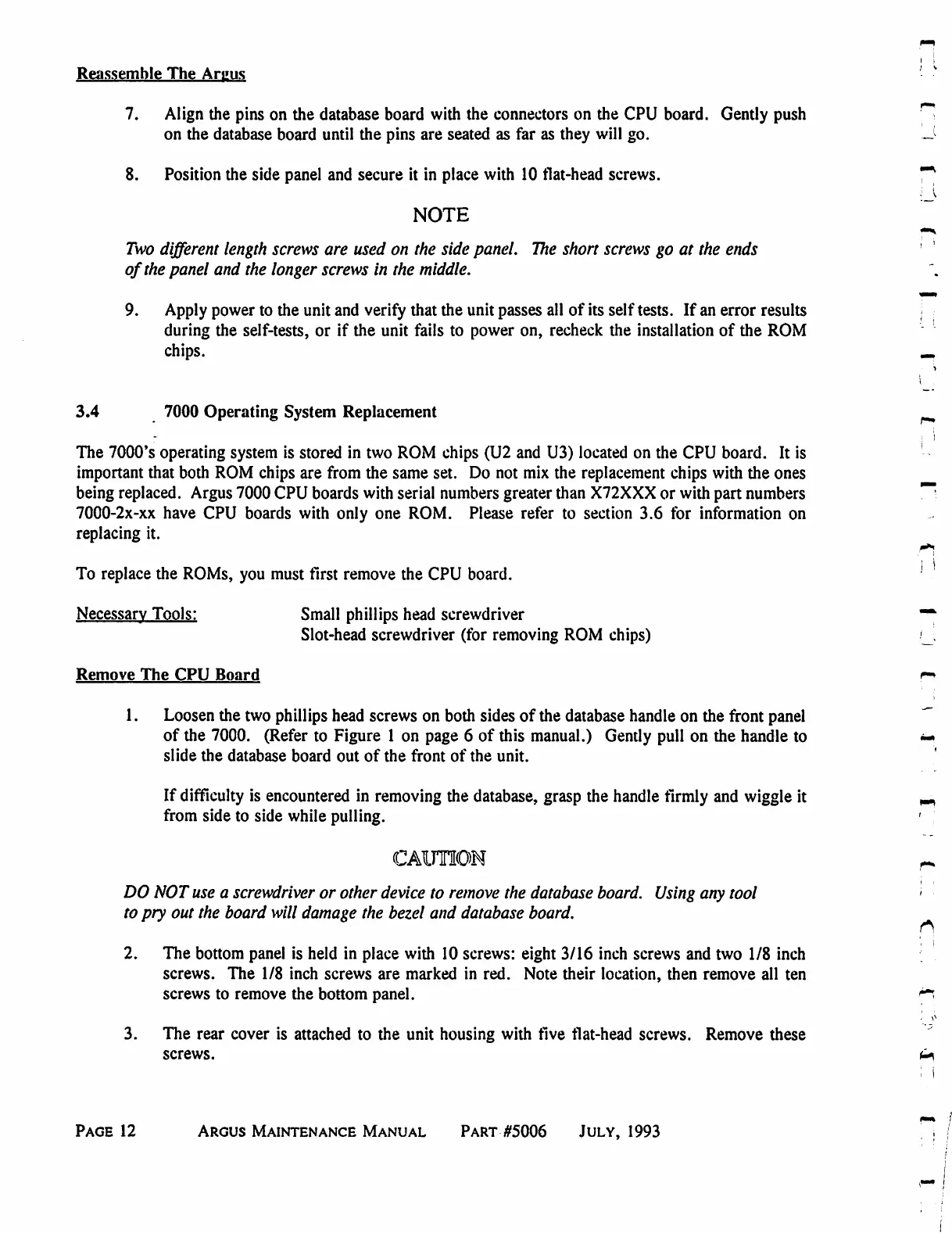

Reassemble
The
Argus
7.
Align
the
pins
on
the
database
board
with
the
connectors
on
the
CPU
board.
Gently
push
on
the
database
board
until
the
pins are seated
as
far as
they
will
go.
8.
Position
the
side
panel
and
secure
it
in
place
with
10
flat-head
screws.
NOTE
Two
different
length
screws
are
used
on
the
side
panel.
The
short
screws
go
at
the
ends
of
the
panel
and
the
longer
screws
in
the
middle.
9.
Apply
power
to
the
unit
and
verify
that
the
unit
passes
all
of
its
self
tests.
If
an
error
results
during
the
self-tests,
or
if
the
unit
fails
to
power
on,
recheck
the
installation
of
the
ROM
chips.
3.4
7000
Operating
System
Replacement
The
7000's
operating
system
is
stored
in
two
ROM
chips
(U2
and
U3)
located
on
the
CPU
board.
It
is
important
that
both
ROM
chips are
from
the
same
set.
Do
not
mix
the
replacement
chips
with
the
ones
being
replaced.
Argus
7000
CPU
boards
with
serial
numbers
greater
than
X72XXX
or
with
part
numbers
7000-2x-xx
have
CPU
boards
with
only
one
ROM.
Please
refer
to
section
3.6
for
information
on
replacing
it.
To
replace
the
ROMs,
you must
first
remove
the
CPU
board.
Necessary
Tools:
Small
phillips
head
screwdriver
Slot-head
screwdriver
(for
removing
ROM
chips)
Remove
The
CPU
Board
1.
Loosen
the
two
phillips
head
screws
on
both
sides
of
the
database
handle
on
the
front
panel
of
the
7000.
(Refer
to
Figure
1
on
page
6
of
this
manual.)
Gently
pull
on
the
handle
to
slide
the
database
board
out
of
the
front
of
the
unit.
If
difficulty
is
encountered
in
removing
the
database,
grasp
the
handle
firmly
and wiggle
it
from
side
to
side
while
pulling.
CAUTION
DO
NOT
use
a
screwdriver
or
other
device
to
remove
the
database
board.
Using
any
tool
to
pry
out
the
board
will
damage
the
bezel
and
database
board.
2.
The
bottom
panel
is
held
in
place
with
10
screws:
eight
3/16
inch
screws
and
two
1/8
inch
screws.
The
1/8
inch
screws
are
marked
in
red.
Note
their
location,
then
remove
all
ten
screws
to
remove
the
bottom
panel.
3.
The
rear
cover
is
attached
to
the
unit
housing
with
five
flat-head
screws.
Remove
these
screws.
Page
12
Argus
Maintenance
Manual
Part
#5006
July,
1993
