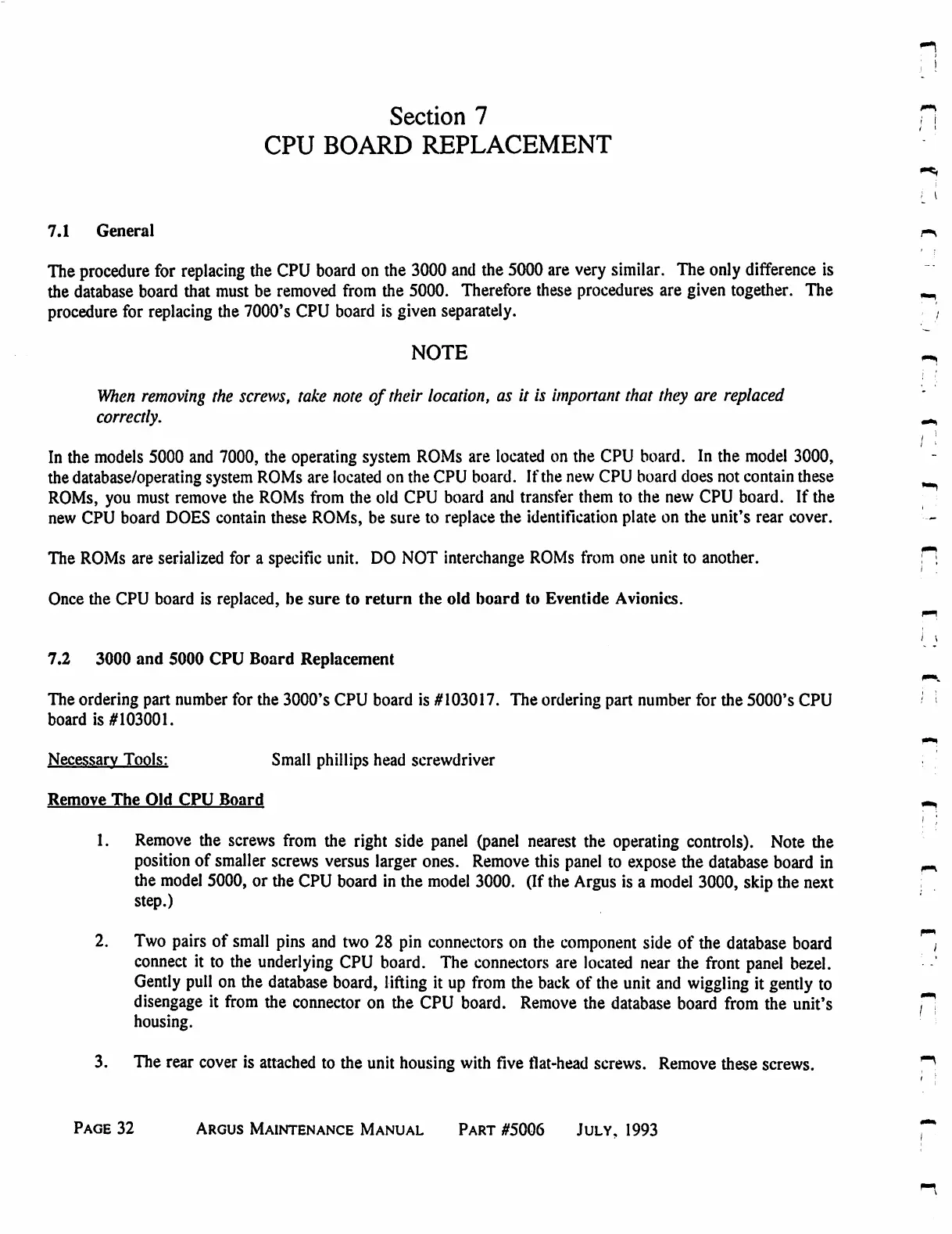

Section
7
H
CPU
BOARD
REPLACEMENT
7.1
General
The
procedure
for
replacing
the
CPU
board
on
the
3000
and
the
5000
are
very
similar.
The
only
difference
is
the
database
board
that
must be
removed
from
the
5000.
Therefore
these
procedures
are
given
together.
The
procedure
for
replacing
the
7000's
CPU
board
is
given
separately.
NOTE
When
removing
the
screws,
take
note
of
their
location,
as
it
is
important
that
they
are
replaced
correctly.
In
the
models
5000
and
7000,
the
operating
system
ROMs
are
located
on
the
CPU
board.
In
the
model
3000,
the
database/operating
system
ROMs
are
located
on
the
CPU
board.
If
the
new
CPU
board
does
not
contain
these
ROMs,
you
must
remove
the
ROMs
from
the
old
CPU
board
and
transfer
them
to
the
new
CPU
board.
If
the
new
CPU
board
DOES
contain these
ROMs,
be
sure
to
replace
the
identification
plate
on
the
unit's
rear
cover.
The
ROMs
are
serialized
for
a
specific
unit.
DO
NOT
interchange
ROMs
from one
unit
to
another.
Once
the
CPU
board
is
replaced,
be
sure
to
return
the old
board
to
Eventide
Avionics.
7.2
3000
and
5000
CPU
Board
Replacement
The
ordering
part
number
for
the
3000's
CPU
board
is
#103017.
The
ordering
part
number
for
the
5000's
CPU
board
is
#103001.
Necessary
Tools:
Small
phillips
head
screwdriver
Remove
The
Old
CPU
Board
1.
Remove
the
screws
from
the
right
side
panel
(panel
nearest
the
operating
controls).
Note
the
position
of
smaller
screws
versus
larger
ones.
Remove
this
panel
to
expose
the
database
board
in
the
model
5000,
or
the
CPU
board
in
the
model
3000.
(If
the
Argus
is
a
model
3000,
skip
the
next
step.)
2.
Two
pairs
of
small
pins
and
two
28
pin
connectors
on
the
component
side
of
the
database
board
connect
it
to
the
underlying
CPU
board.
The
connectors
are
located
near
the
front
panel
bezel.
Gently
pull
on
the
database
board,
lifting
it
up from
the
back
of
the
unit
and
wiggling
it
gently
to
disengage
it
from
the
connector
on
the
CPU
board.
Remove
the
database
board
from
the
unit's
housing.
3.
The
rear
cover
is
attached
to
the
unit
housing
with
five
flat-head
screws.
Remove
these
screws.
Page
32
Argus
Maintenance
Manual
Part
#5006
July,
1993
